Peugeot 308: Removing - refitting : Daytime running lamp

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

N.B. : Symmetrical operations (right and left sides).

Key : Operation symbols .

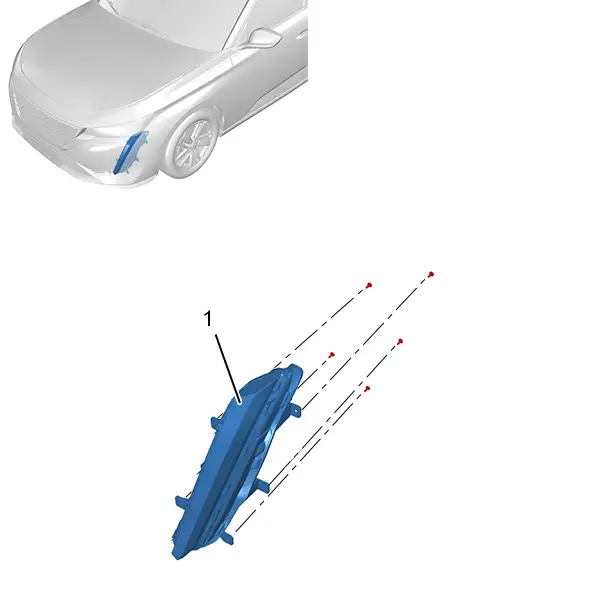

1. Location

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

Remove the front mud guard .

3. Removing

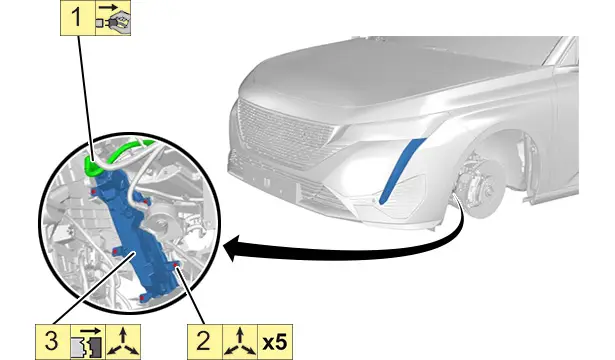

3.1. Left-hand side

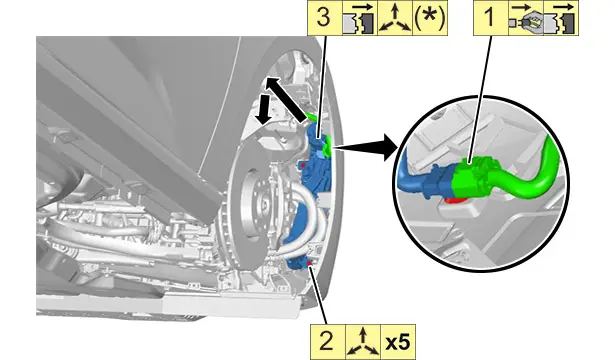

3.2. Right-hand side (according to model)

N.B. : Carefully remove (in the direction of the arrows).

4. Refitting

Proceed in the reverse order to removal.

5. Additional operations

Refit the front mud guard .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).

6. Check

Check the operation of the various equipment.
