Peugeot 308: Removing - refitting : Front bumper - Front bumper supports

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

Key : Operation symbols .

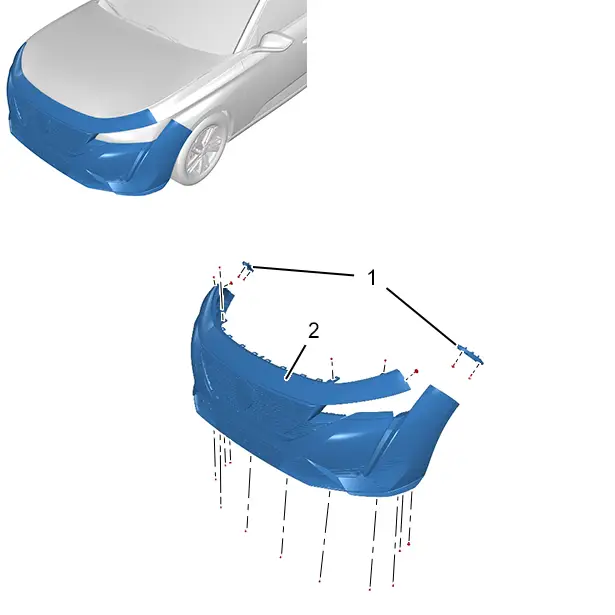

1. Location

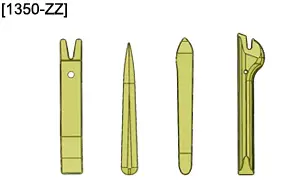

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the front mud guards .

4. Removing

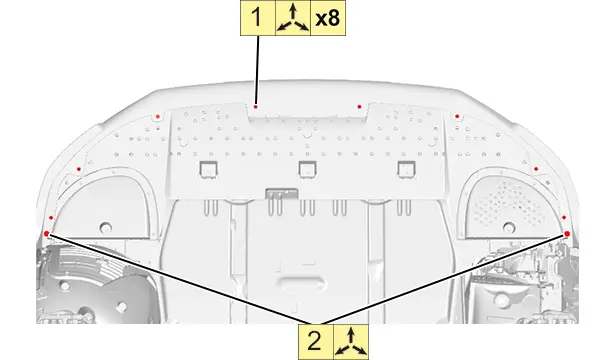

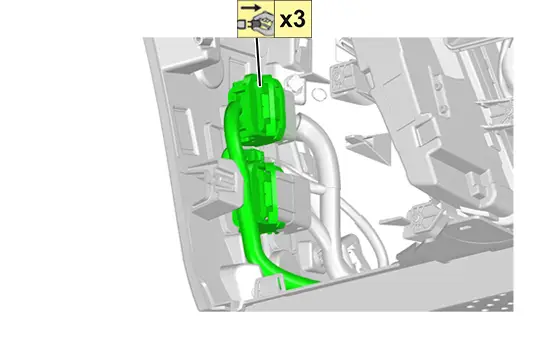

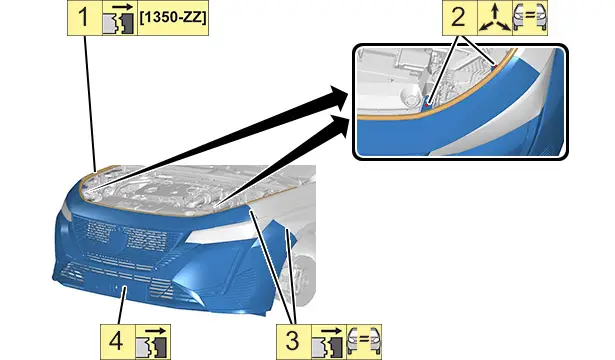

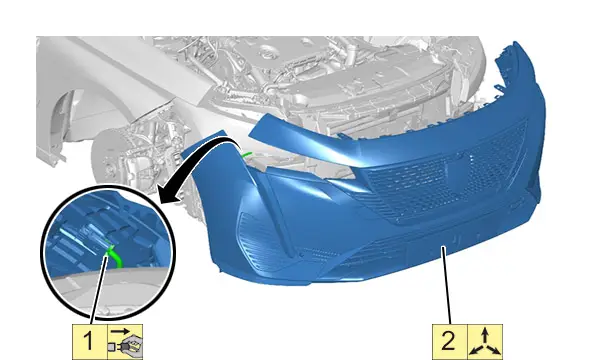

4.1. Front bumper

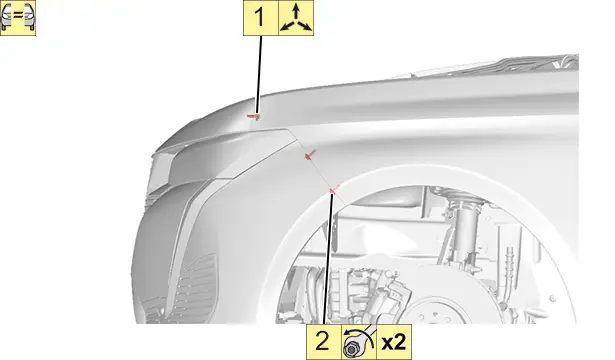

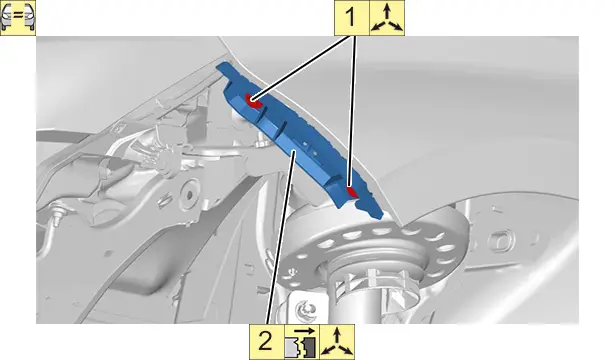

4.2. Front bumper support

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

Refit the front mud guards.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

Check the operation of the various equipment.
