Peugeot 308: Stripping-assembling : Front bumper

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

Tool	Reference	Description
	[1350-ZZ]	Stripping tools

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The front bumper
• The proximity sensors on the front bumper
• The day running lamps
• The distance alert radar
• The visual manoeuvring assistance camera

3. Stripping

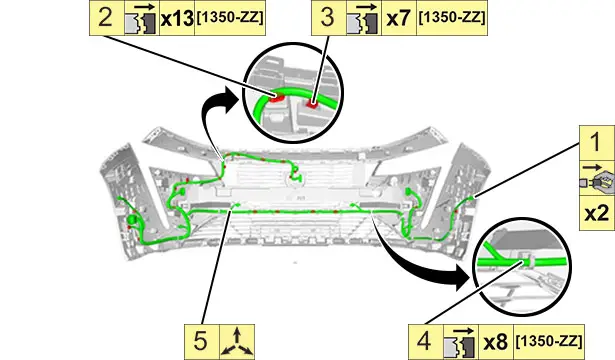

3.1. Electrical harnesses

3.2. Plugs (according to model)

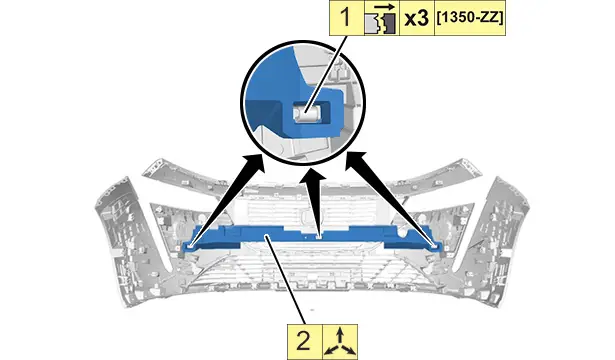

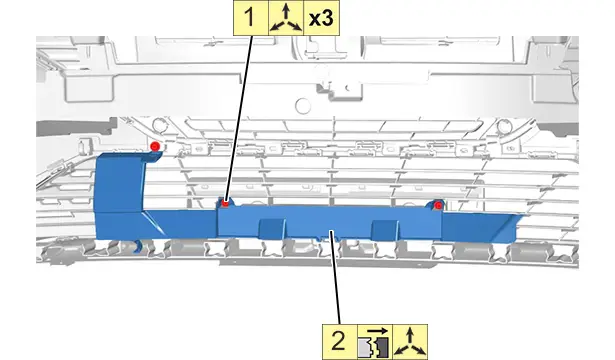

3.3. Front bumper top impact absorber

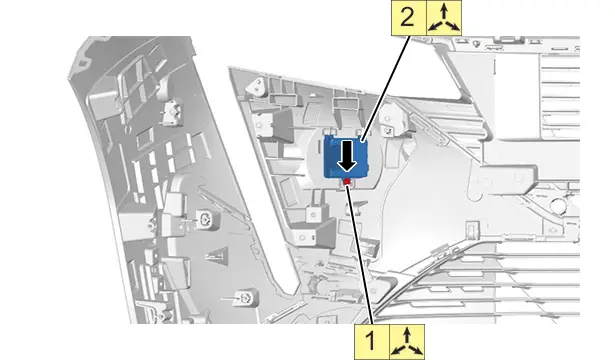

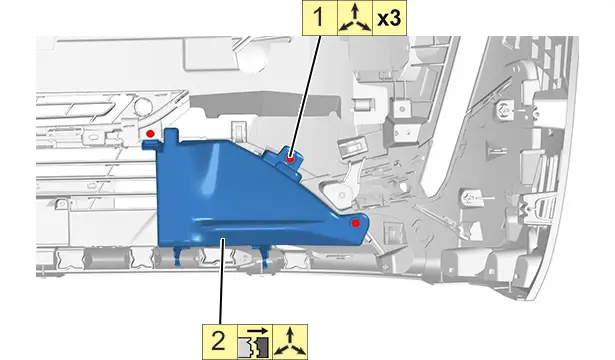

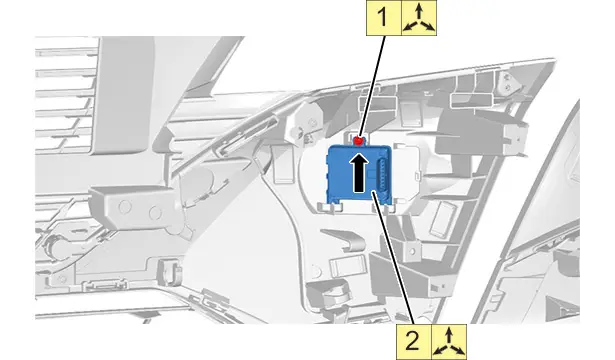

3.4. Front right-hand corner radar

3.5. Front left-hand corner radar

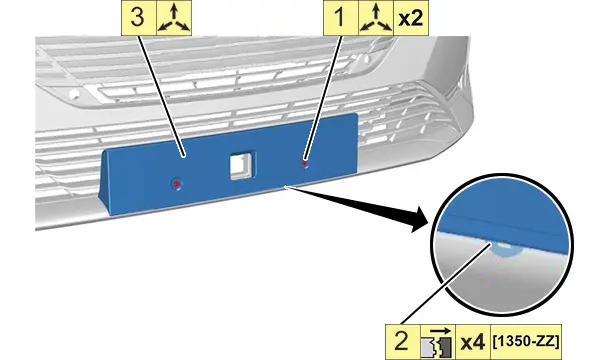

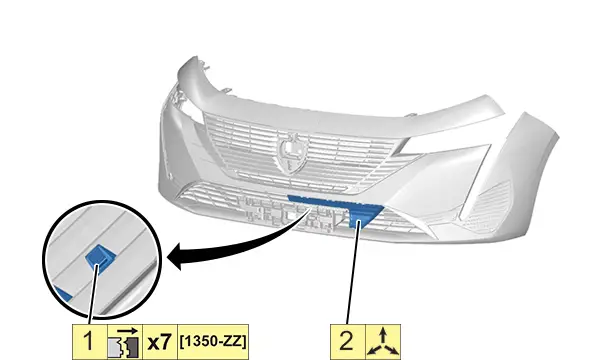

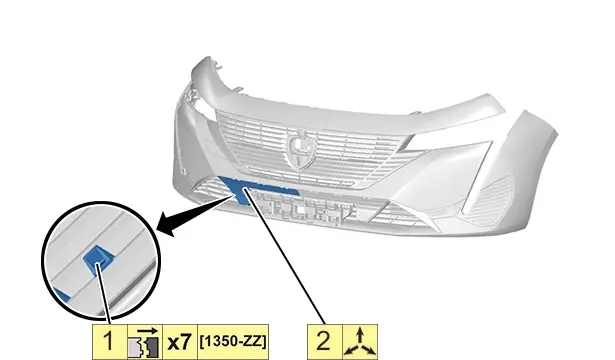

3.6. Number plate support

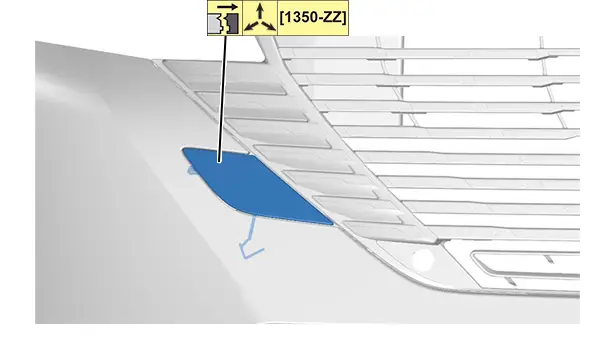

3.7. Access hatch to the towing ring

3.8. Plugs (according to equipment)

3.9. Front bumper skin

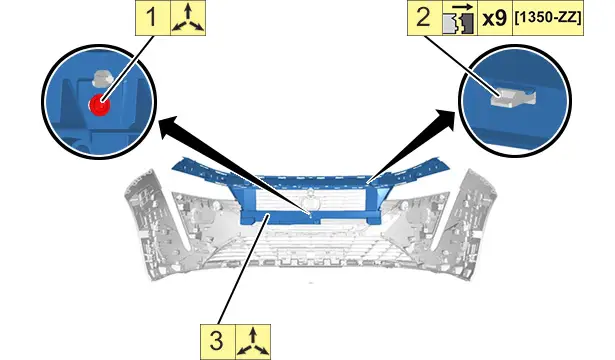

3.10. Bumper stiffener

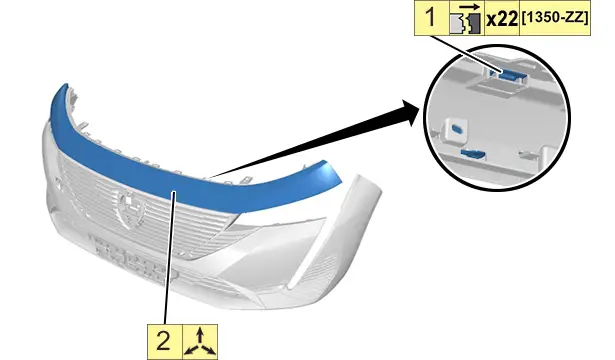

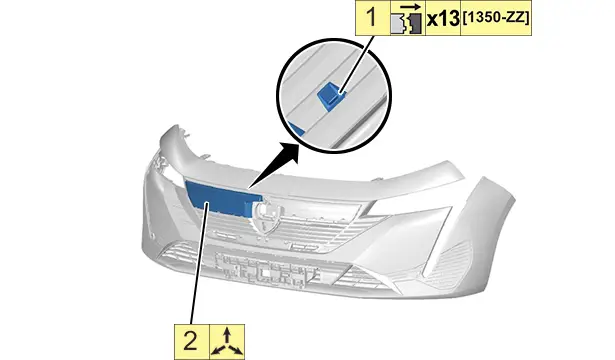

3.11. Radiator grille

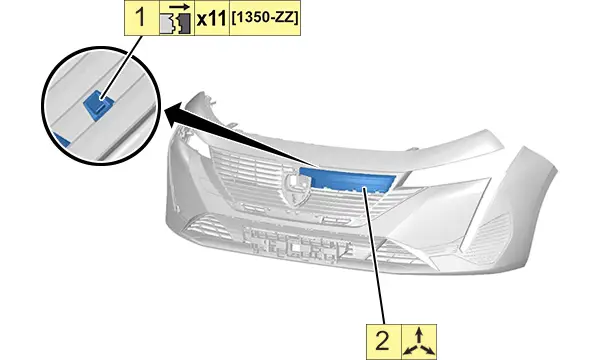

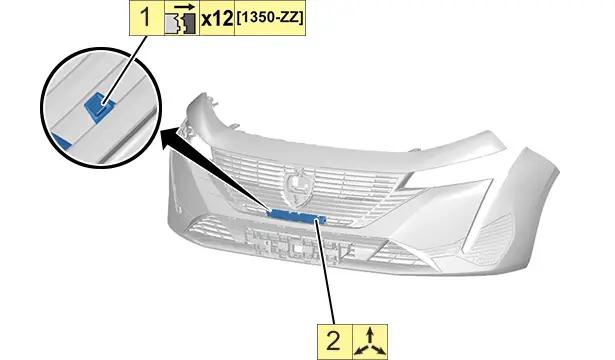

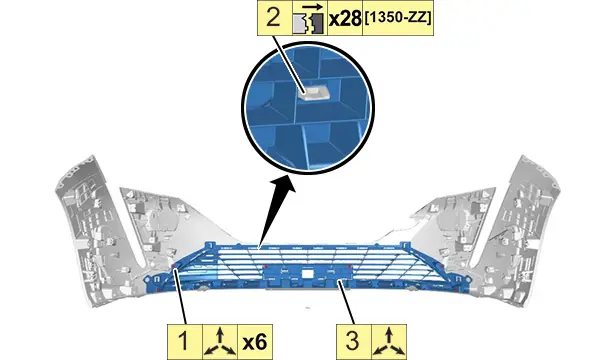

3.12. Lower grille

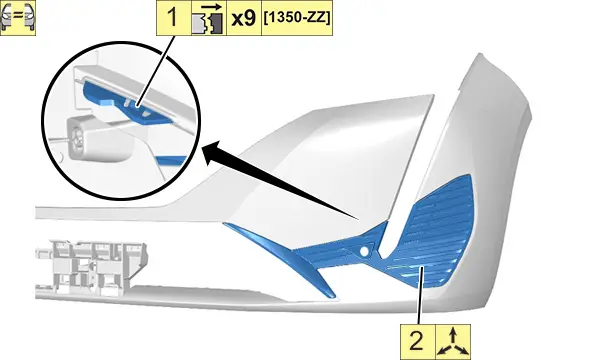

3.13. Lateral trims

4. Assembling

Carry out the operations in the reverse order to the stripping operations.

5. Additional operations

Refit :

• The visual manoeuvring assistance camera
• The distance alert radar
• The day running lamps
• The proximity sensors on the front bumper
• The front bumper

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

6. Check

Check the operation of the various equipment.
