Peugeot 308: Tightening torques : Front section
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front section / Front bumper / Tightening torques : Front section
ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

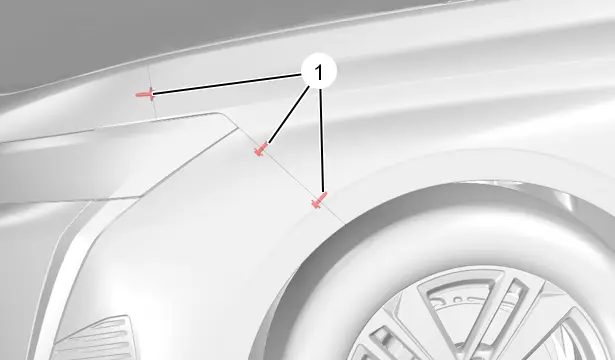

1. Front bumper
N.B. : Symmetrical operations.
| Identification | Description | Tightening torque |
| (1) | Bolt (Front bumper / Front wing) | 0,4 daNm |

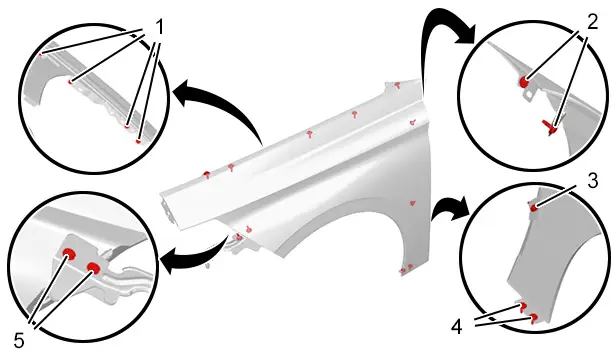

2. Front wing
N.B. : Symmetrical operations.
| Identification | Description | Tightening torque |
| (1) | Bolt (Front wing / Front wing support) | 0,8 daNm |
| (2) | Bolt (Front wing / Front wing support) | 0,8 daNm |
| (3) | Bolt (Front wing / Front wing support) | 0,8 daNm |
| (4) | Bolt (Front wing / Front pillar) | 0,8 daNm |
| (5) | Bolt (Front wing / Outer sill / Front bumper) | 0,8 daNm |

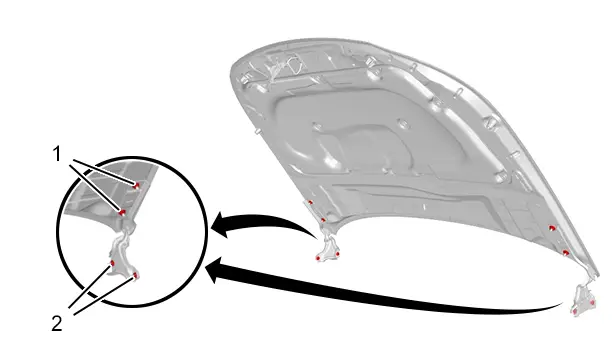

3. Bonnet
| Identification | Description | Tightening torque |
| (1) | Nuts (Engine bonnet hinges / Bonnet) | 0,8 daNm |
| (2) | Bolt (Engine bonnet hinges / Front wing support) | 0,8 daNm |
