Peugeot 308: Tightening torques : Side doors
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front doors and trims / Front doors / Tightening torques : Side doors
ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

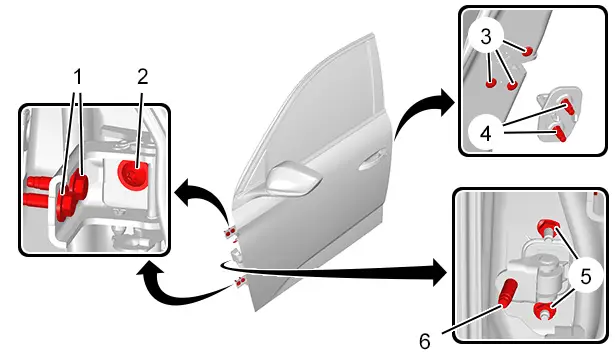

1. Front door
N.B. : Symmetrical operations.
| Identification | Description | Tightening torque |
| (1) | Bolt (Front pillar door hinge / Front pillar) | 3,2 daNm |
| (2) | Bolt (Front pillar door hinge / Front door) | 3 daNm |
| (3) | Bolt (Front door lock) | 1,5 daNm |
| (4) | Bolt (Front door striker plate) | 2 daNm |
| (5) | Nuts (Front door check strap / Front door) | 1 daNm |
| (6) | Bolt (Front door check strap / Front pillar) | 3 daNm |

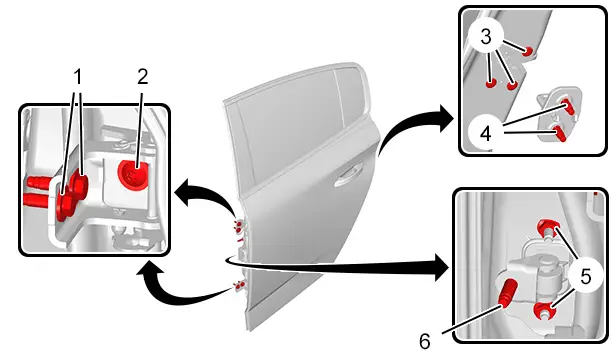

2. Rear door
N.B. : Symmetrical operations.
| Identification | Description | Tightening torque |
| (1) | Bolt (Rear door hinge / Centre pillar) | 3,2 daNm |
| (2) | Bolt (Rear door hinge / Rear door) | 3 daNm |
| (3) | Bolt (Rear door lock) | 1,5 daNm |
| (4) | Bolt (Rear door striker plate) | 2 daNm |
| (5) | Nuts (Rear door check strap / Rear door) | 1 daNm |
| (6) | Bolt (Rear door check strap / Rear pillar) | 3 daNm |
