Peugeot 308: Location : Engine harness

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

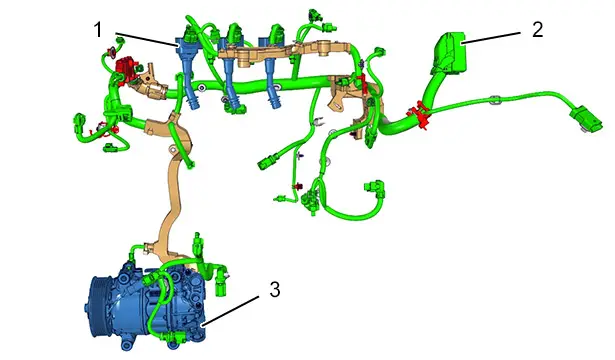

1. Location : Engine compartment

(1) Ignition coils .

(2) Engine control harness.

(3) Air conditioning compressor.

2. Engine control harness

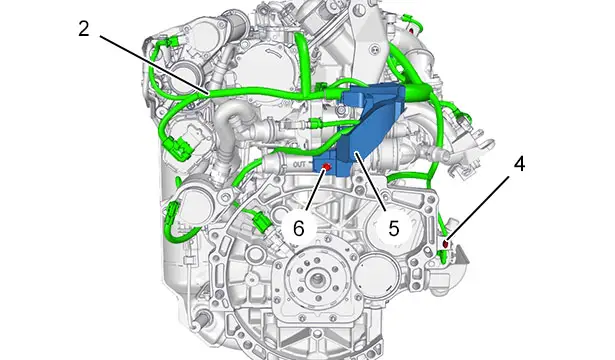

2.1. Front section

(2) Engine control harness.

(4) Clips.

(5) Engine harness sheathing.

(6) Screw .

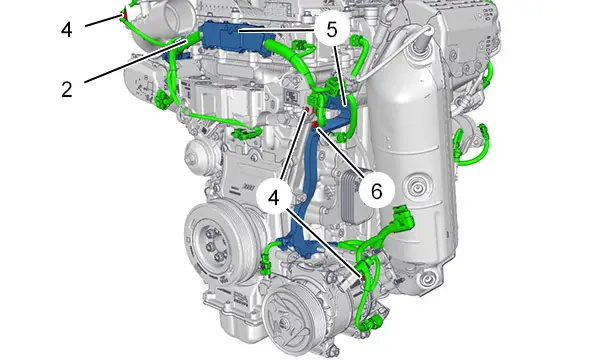

2.2. Side section

(2) Engine control harness.

(4) Clips.

(5) Engine harness sheathing.

(6) Screw .

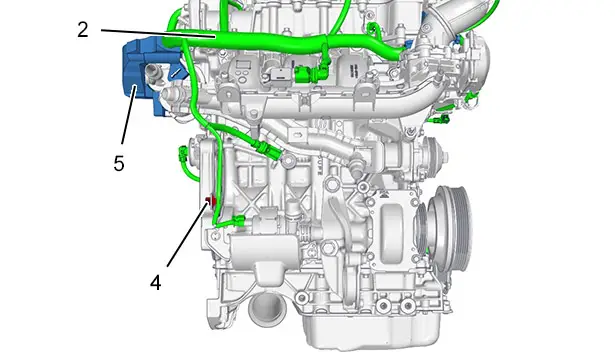

2.3. Rear section

(2) Engine control harness.

(4) Clips.

(5) Engine harness sheathing.

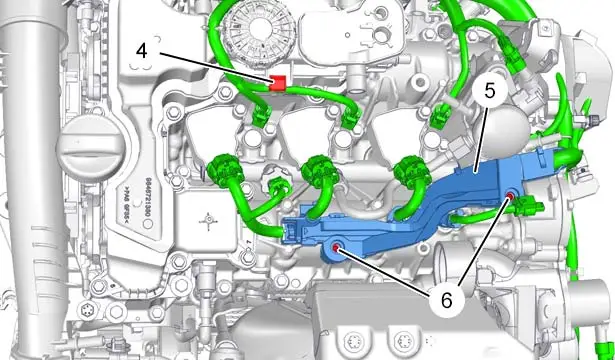

2.4. Upper section

(4) Clips.

(5) Engine harness sheathing.

(6) Screw .
