Peugeot 308: Check : Power harnesses

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

ESSENTIAL : Switch the vehicle’s power off .

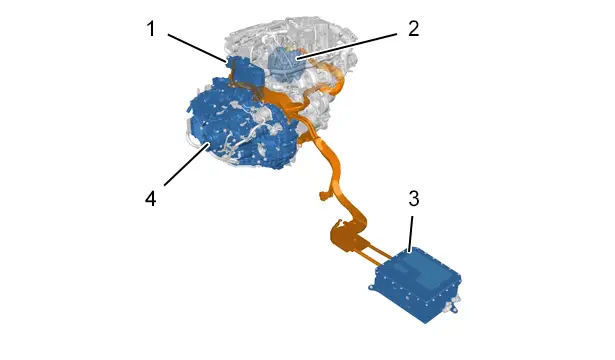

1. Location

The electrical power harnesses are orange in colour; they link the following components :

• (1) Direct voltage transformer
• (2) 48 V starter
• (3) Traction battery
• (4) Hybrid double-clutch piloted manual gearbox

2. Visual check

Visually check for any damage on the electrical power harnesses and for any clearance in the clips of the electrical power harnesses.

Check that the electrical power harnesses do not interfere with the surrounding components.

ESSENTIAL : Switch the vehicle’s power on .
