ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
1. Tooling
Tool | Reference | Description |

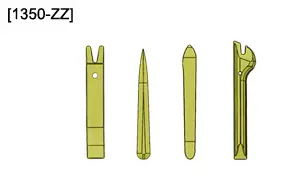

| [1350-ZZ] (*) | Stripping tools |
(*) Use standard workshop equipment if the special tool is not available |
2. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries ( depending on the equipment ).
Remove the front seat
.
3. Removing
3.1. Covered seat cushion heated pad
Remove the covered seat cushion
.

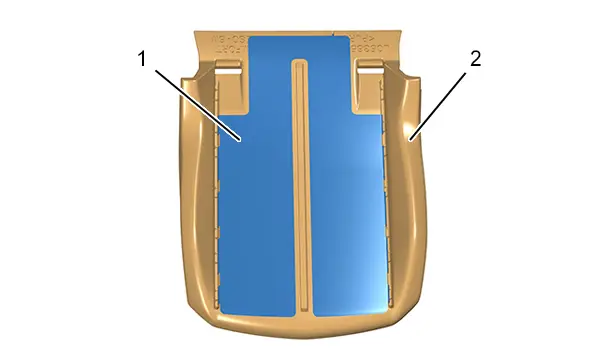

Carefully separate the heated pad (1) from the covered seat cushion (2) (Carefully).
3.2. Covered seat backrest cushion heated pad
Remove the covered backrest cushion
.

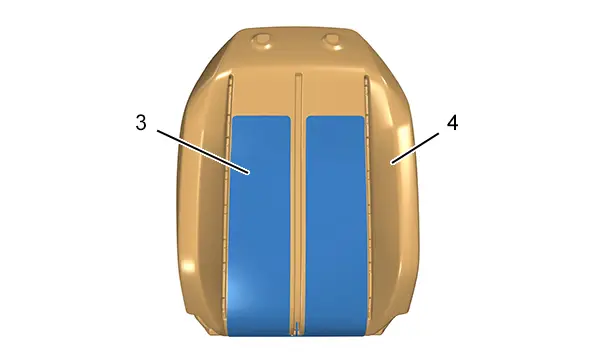

Carefully separate the heated pad (3) from the covered backrest cushion (4) (Carefully).
4. Refitting
Proceed in the reverse order to removal.
5. Additional operations
Refit the front seat
.
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries ( depending on the equipment ).
6. Check
Check the operation of the various equipment.
