Peugeot 308: Stripping-assembling : Front seat

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

Tool	Reference	Description
	[1350-ZZ] (*)	Stripping tools

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

3. Common operations

Remove the front seat .

4. Stripping

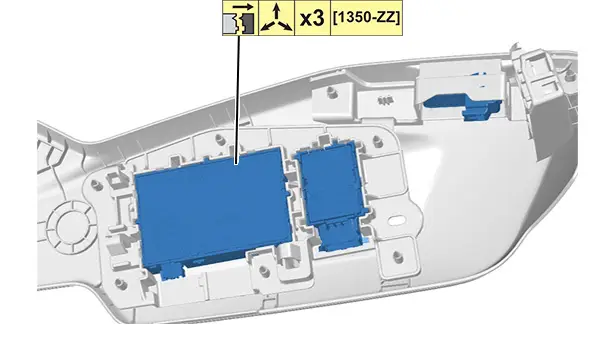

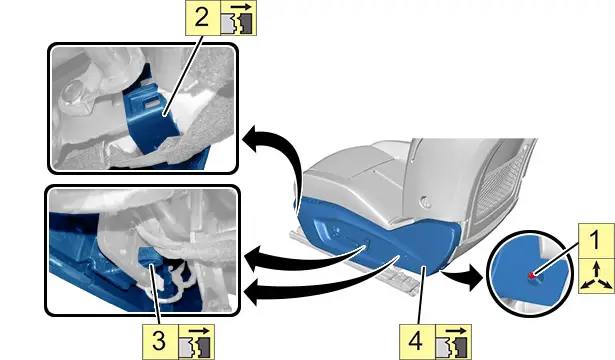

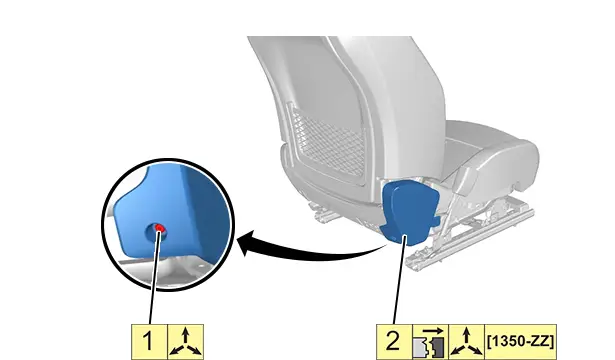

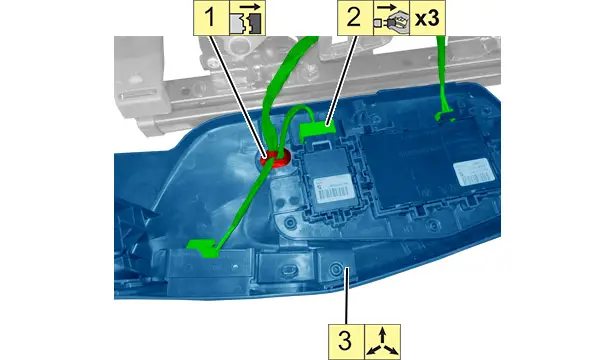

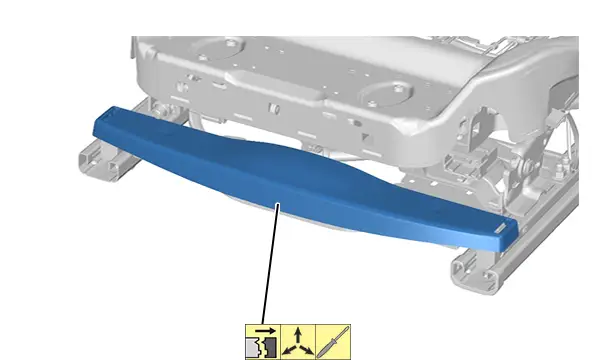

4.1. Trims / Switches

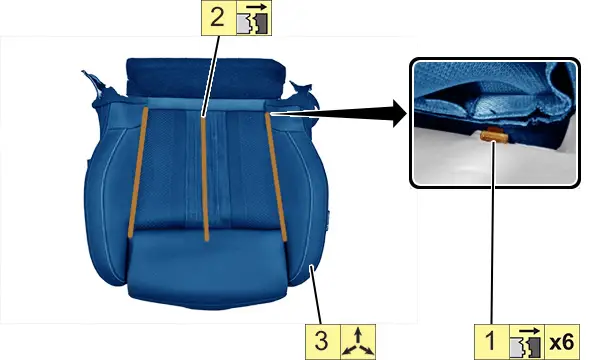

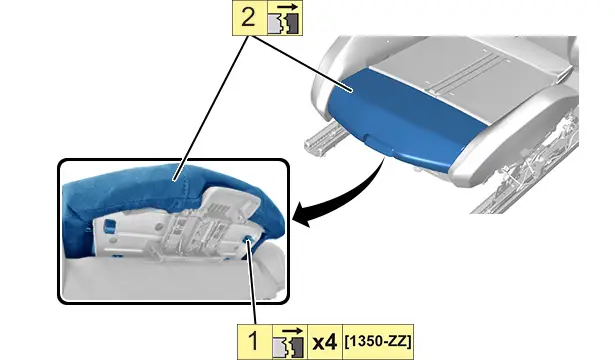

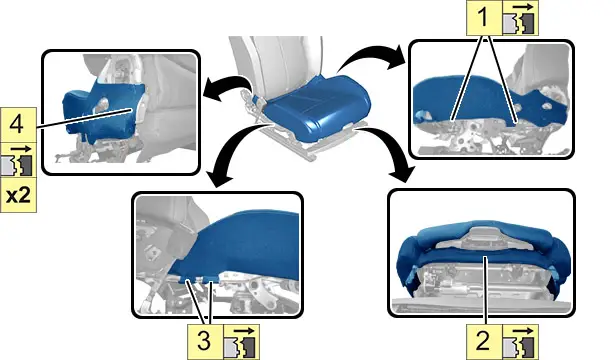

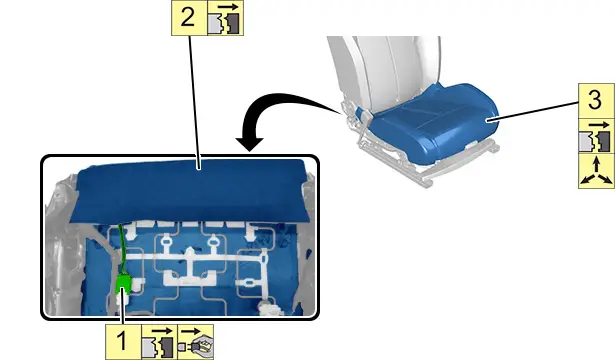

4.2. Covered seat cushion

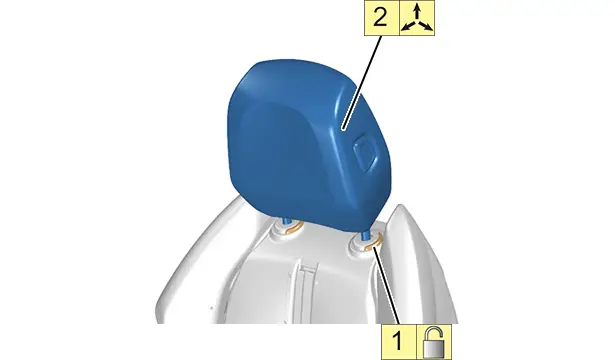

4.3. Head restraint

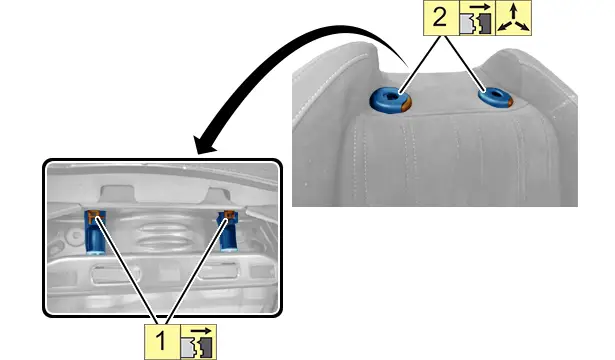

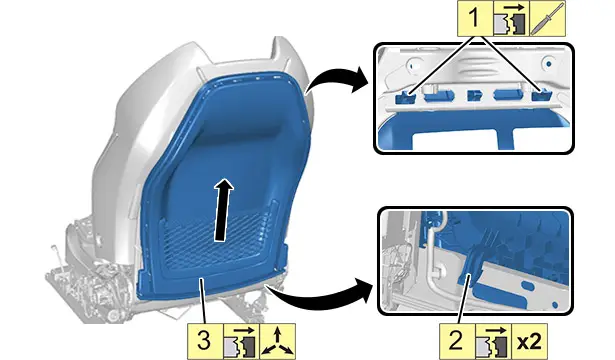

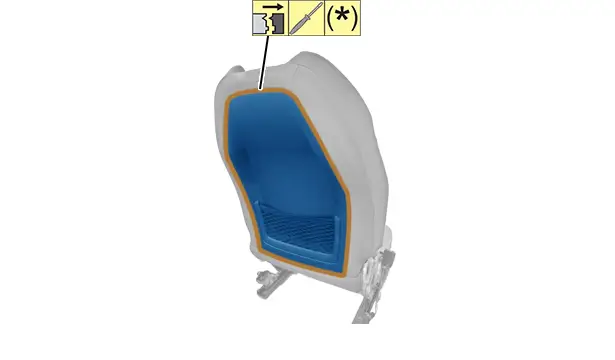

4.4. Backrest shell / Head restraint guide

N.B. : Operation to be performed with care.

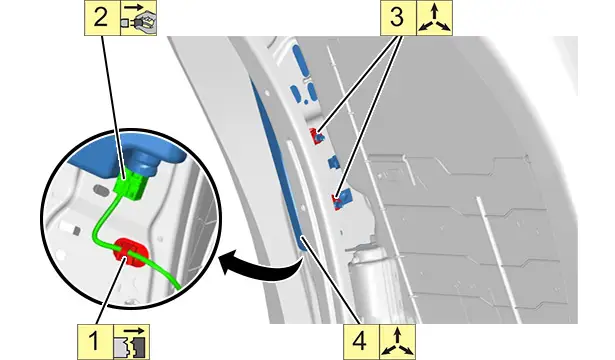

4.5. Airbag

4.6. Covered backrest cushion

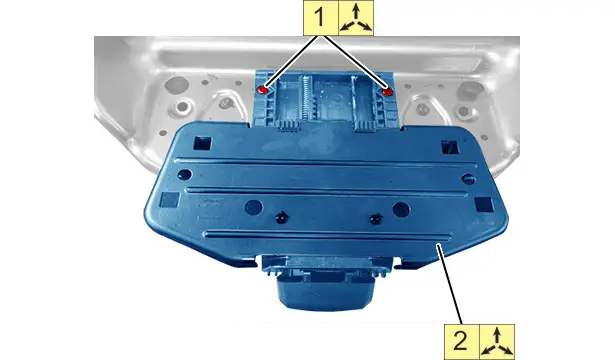

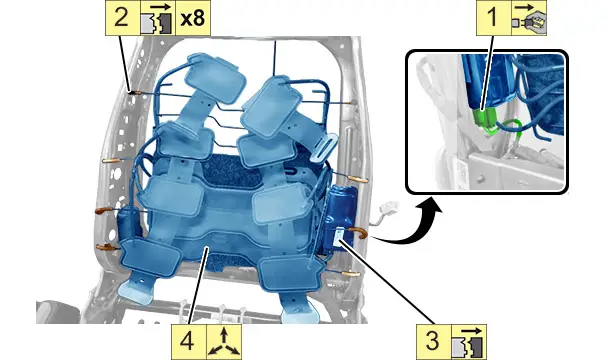

4.7. Lumbar sensor

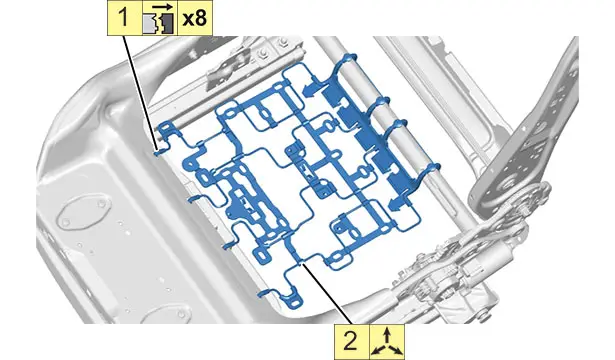

4.8. Seat cushion

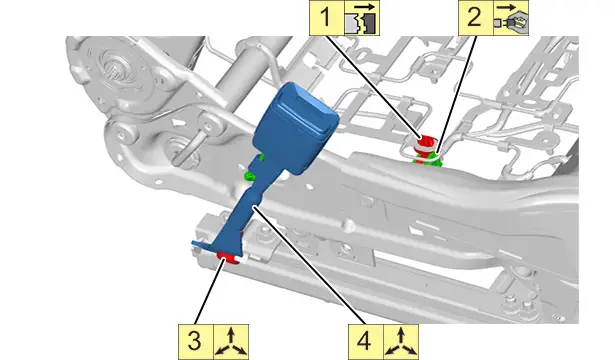

4.9. Buckle strap

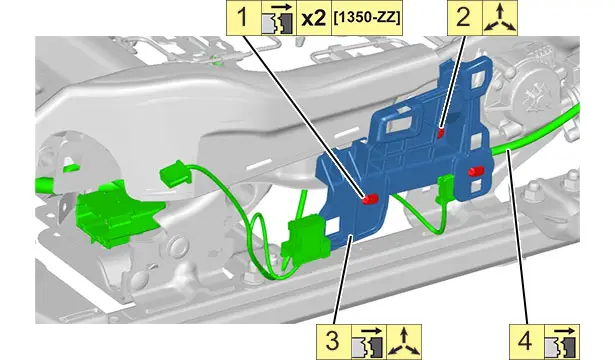

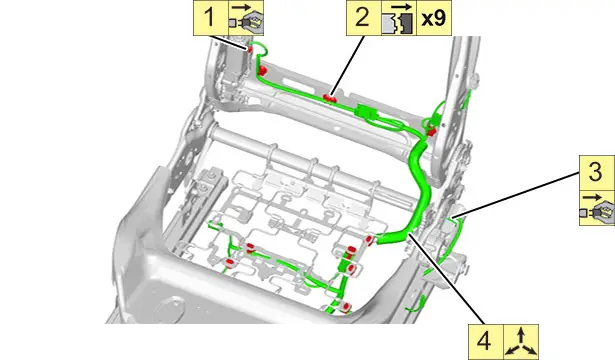

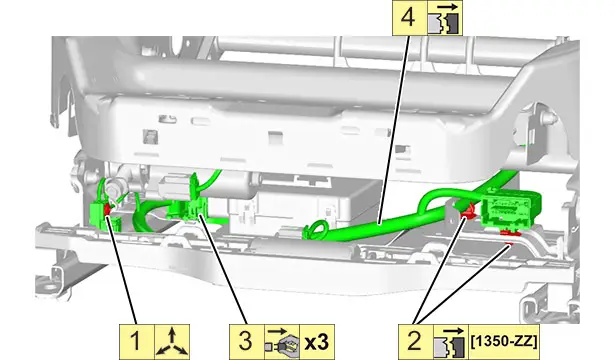

4.10. Electrical harness

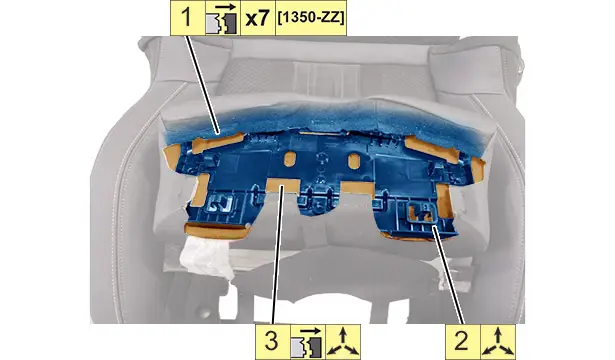

4.11. Cushion heating pad

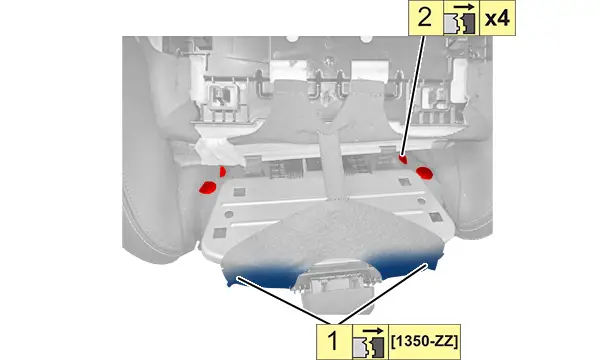

4.12. Seat cushion cover

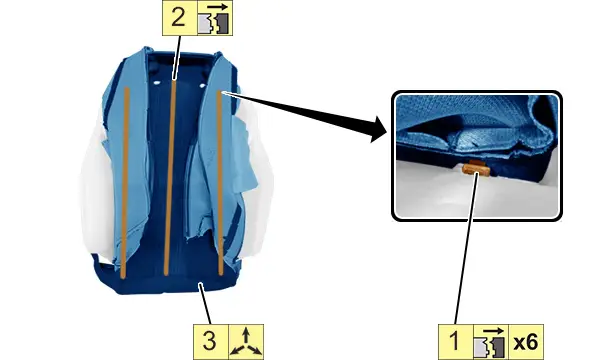

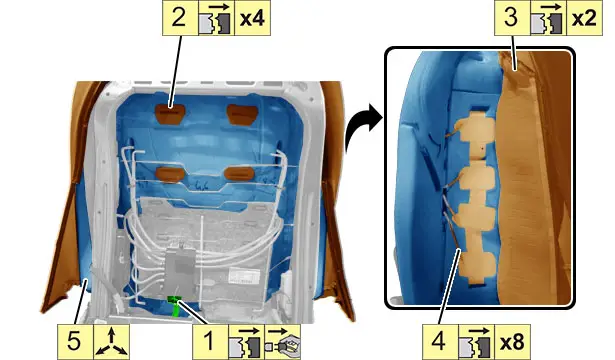

4.13. Seat back cover

5. Assembling

CAUTION : Observe the tightening torques.

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Common operations

Refit the front seat .

8. Check

Check the operation of the various equipment.
