Peugeot 308: Presentation : Tooling

Tool	Reference	Description

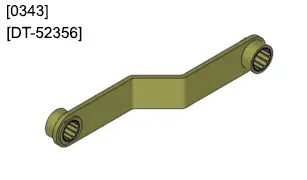

	[0343][DT-52356]	Input shaft lock ring

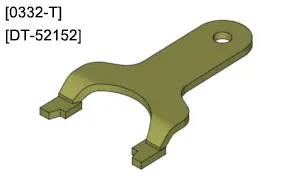

	[0332-T][DT-52152]	Circlip push

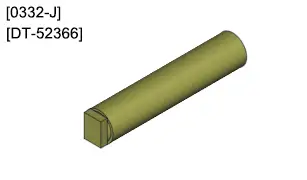

	[0332-J][DT-52366]	Input shaft bearing inner race fitting tube 1st gear end)

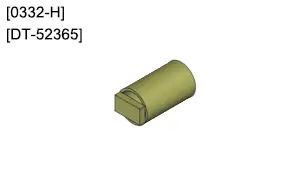

	[0332-H][DT-52365]	Input shaft bearing inner race fitting tube (5th gear end)

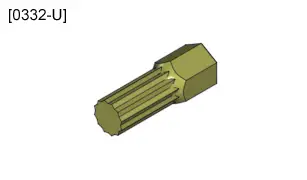

	[0332-U] (*)	Input shaft locking bolt screwing adaptor
	[0332-G][DT-52364]	Output shaft bearing fitting tube (differential end)

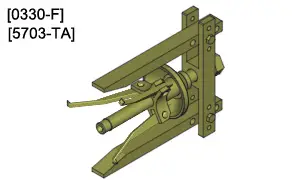

	[0330-F] ()[5703-TA] ()	Differential bearing outer race extractor

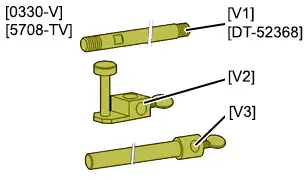

	[0330-V] ()[5708-TV] ()	Dial gauge support assembly
	[0330-V1][5708-TV1][DT-52368]	threaded rod
	[0330-V2] ()[5708-TV2] ()	Dial gauge mounting lug
	[0330-V3] ()[5708-TV3] ()	dial gauge support rod

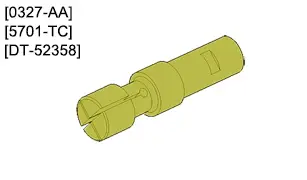

	[0327-AA][5701-TC][DT-52358]	Expanding mandrel

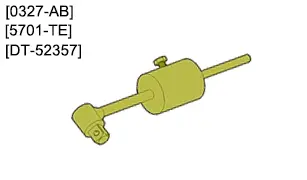

	[0327-AB][5701-TE][DT-52357]	Drag torque checking tool

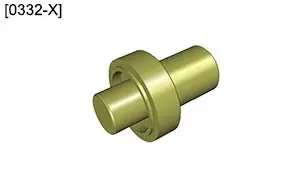

	[0332-X]	Differential seal fitting drift (right-hand side)

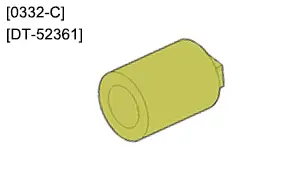

	[0332-C][DT-52361]	Differential bearing fitting tube

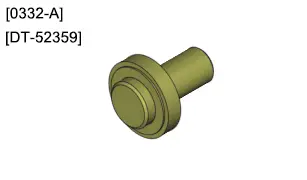

	[0332-A][DT-52359]	Differential seal fitting drift (left-hand side)

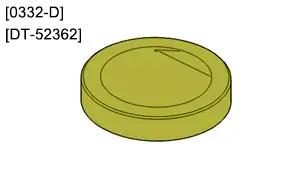

	[0332-D][DT-52362]	Secondary shaft thrust pad

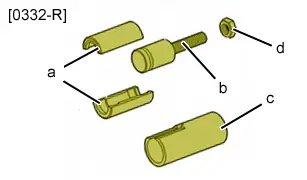

	[0332-R] (*)	De-clutching fork pin extraction tool "a" Half-shell"b" Extraction pin "c" Extractor tube "d" Nut
(*) Use standard workshop equipment if the special tool is not available
