Peugeot 308: Removing - refitting : Gearbox input speed sensor

ESSENTIAL : Observe the safety and cleanliness instructions .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Preliminary operations

Place the vehicle on a 2-post lift.

PHEV DRIVE TRAIN

CAUTION : Perform the operations that are required before disconnecting the ancillaries batteries .

Disconnect the ancillaries batteries (Following the specific procedure ).

2. Removal

Remove the hydraulic block and the solenoid valves .

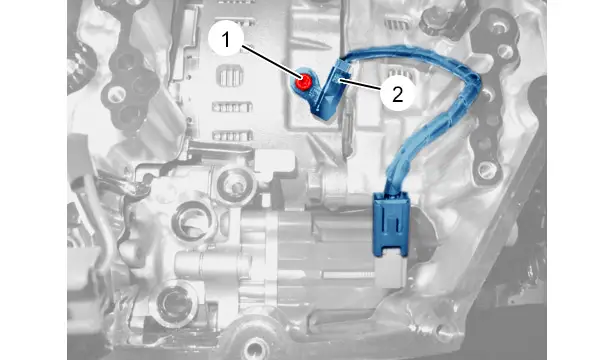

Remove :

• The bolt (1)
• The gearbox input speed sensor (2)

3. Refitting

CAUTION : Observe the tightening torques .

Refit :

• The gearbox input speed sensor (2)
• The bolt (1)
• The hydraulic block and the solenoid valves

4. Additional operations

Return the vehicle to its wheels.

PHEV DRIVE TRAIN

CAUTION : Perform the operations that are required after reconnecting the ancillaries batteries .

Reconnect the ancillaries batteries (Following the specific procedure ).
