Peugeot 308: Removing - refitting : Hydraulic block oil filter

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Replacement of parts in all cases

2. Preliminary operations

Put the vehicle on a lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(according to equipment).

Drain the hybrid double-clutch piloted manual gearbox .

3. Removing

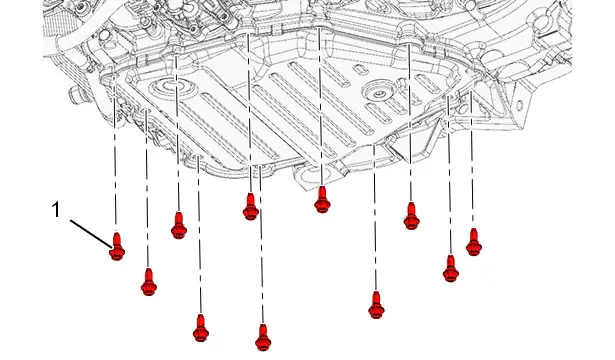

Remove the 11 bolts (1).

Remove :

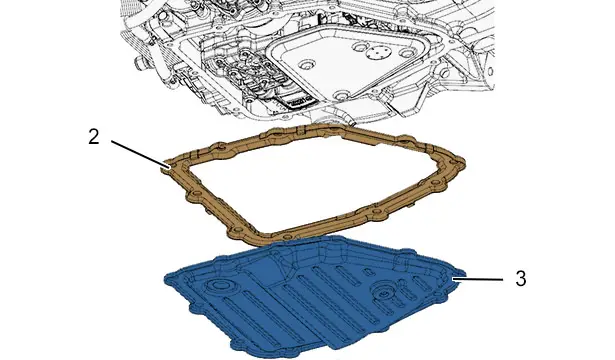

• The oil sump (3)
• The seal (2)

Remove :

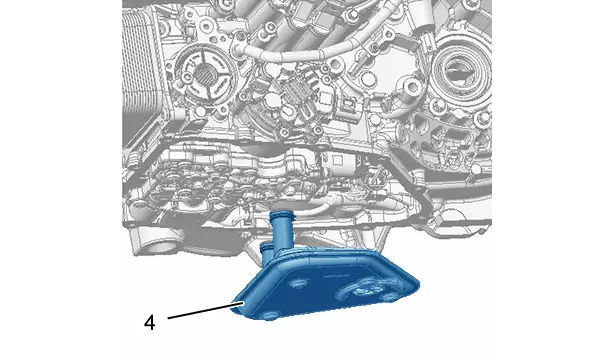

• The hydraulic block oil filter (4)
• The O-rings

4. Refitting

CAUTION : Observe the tightening torques.

EDCT TYPE GEARBOX 6 SPEED AND HYBRID 6-SPEED PILOTED MANUAL GEARBOX

Tightening torques :

• Hybrid double-clutch piloted manual gearbox
• Wheels

Refit :

• The oil filter (4) on the hydraulic block (With the new O-rings ‎)
• The new seal (2)
• The oil sump (3)
• The 11 bolts (1)

5. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(according to equipment).

Fill and top up the oil in the hybrid double-clutch piloted manual gearbox .

Removing - refitting : Hybrid double-clutch piloted manual gearboxRemoving - refitting : Oil filter of the hybrid double-clutch piloted manual gearbox
