ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.
1. Location

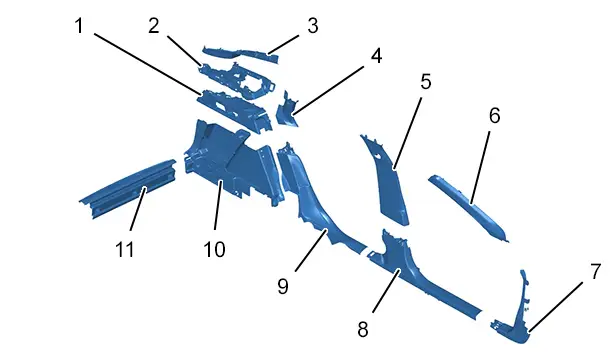

Identification | Description | Quantity |
(1) | Rear shelf trim | 1 |
(2) | Bracket for rear parcel tray trim | 1 |
(3) | Rear quarter panel upper trim | 1 |
(4) | Rear quarter panel trim | 1 |
(5) | Centre pillar upper trim | 1 |
(6) | Windscreen pillar trim | 1 |
(7) | "A" post trim | 1 |
(8) | Front door sill trim | 1 |
(9) | Rear door sill trim | 1 |
(10) | Rear wing trim | 1 |
(11) | Boot sill trim | 1 |
2. Tooling
Tool | Reference | Description |
| [1350-ZZ] | Stripping tools |
3. Preliminary operations
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).
4. Removing

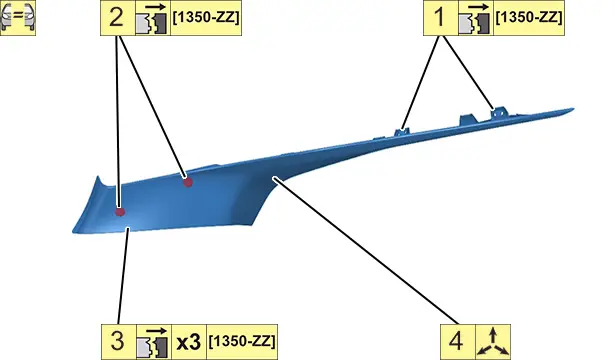

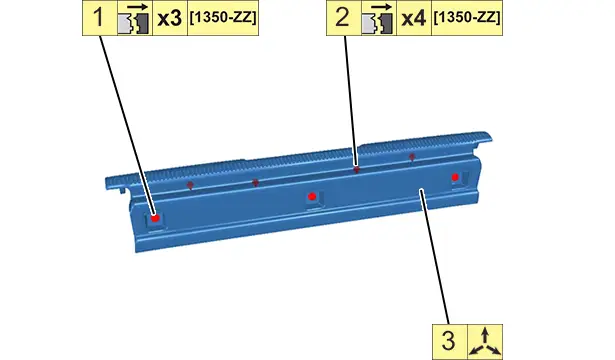

4.1. Boot sill trim

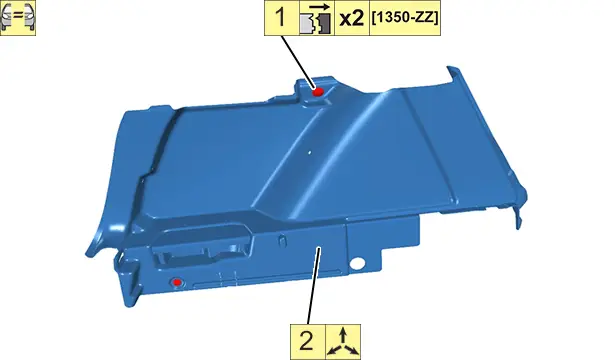

4.2. Rear quarter panel trims

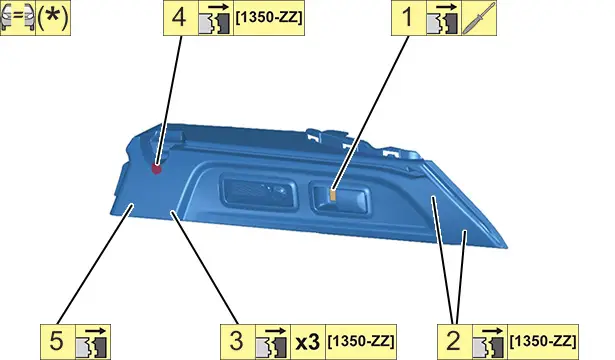

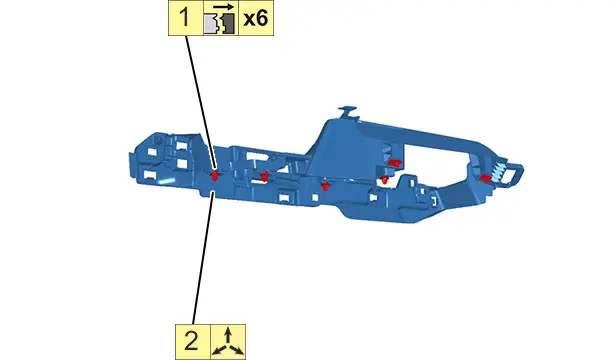

4.3. Bracket for rear parcel tray trim
N.B. : Disconnect the rear shelf light and 12 V socket connectors (depending on equipment).
Remove the rear seat back folding control
.

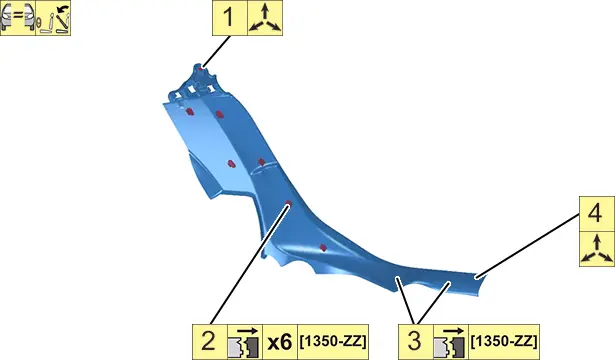

4.4. Rear wing trim
Remove the boot carpet.

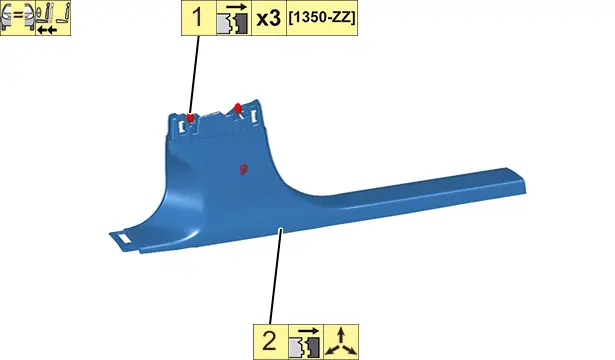

4.5. Rear door sill trim

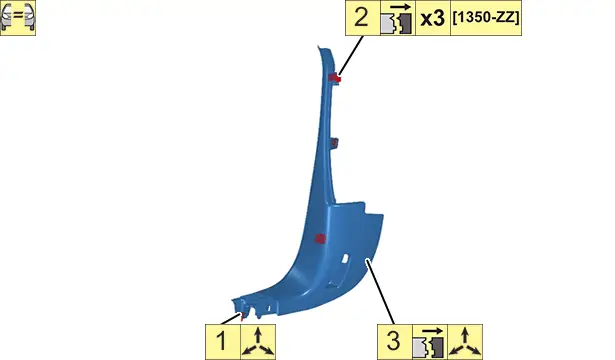

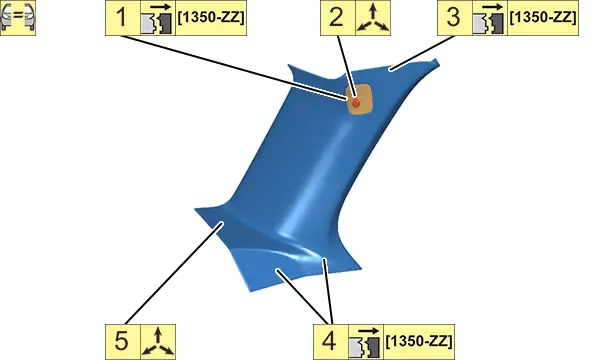

4.6. Centre pillar trim
Remove the front seat belt return .
4.7. Front door sill trim

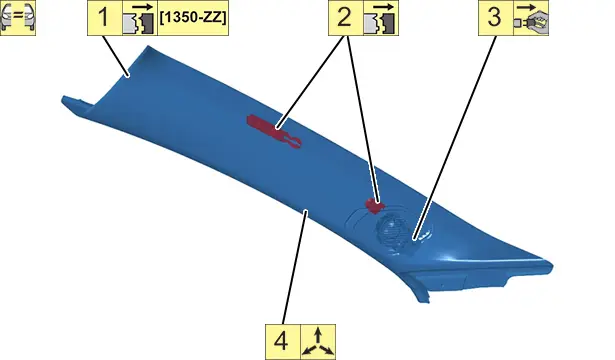

4.8. "A" post trim

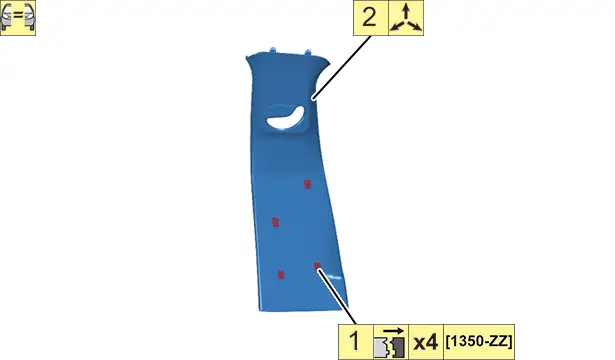

4.9. Windscreen pillar trim
5. Refitting
Proceed in the reverse order to removal.
6. Additional operations
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
7. Check
Check the operation of the various equipment.
