Peugeot 308: Removing - refitting : Oil pump solenoid valve

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Preliminary operations

Place the vehicle on a 2-post lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

Remove :

• The under-engine protector
• The front right-hand wheel
• The front right-hand mudguard
• The ancillary drive belt protector(depending on equipment)

2. Removing

N.B. : Position a container to recover the oil.

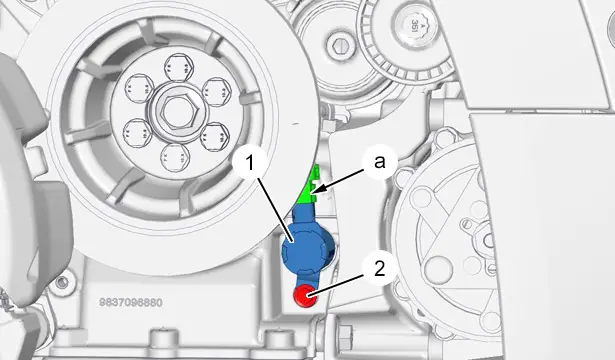

Disconnect the connector(at "a").

Remove :

• The bolt (2)
• The oil pump electrovalve (1)

3. Refitting

CAUTION : Observe the tightening torques.

Tightening torques :

• Engine
• Wheels

Refit :

• The oil pump electrovalve (1)
• The bolt (2)

Reconnect the connector (at "a").

4. Additional operations

Refit :

• The ancillary drive belt protector(depending on equipment)
• The front right-hand mudguard
• The front right-hand wheel
• The under-engine protector
• The vehicle to its wheels

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).
