Peugeot 308: Removing - refitting : Actuator of the rear motorised brake caliper

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

1. Replacement of parts in all cases

2. Tooling

Workshop equipment : Diagnostic tool.

3. Removing

Place the vehicle on a 2-post lift.

CAUTION : Before carrying out any work on the rear braking components, place the rear motorised brake caliper actuator in the removal position ; Using the diagnostic tool.

Place the rear motorised brake caliper in the removal position ; Using the diagnostic tool.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

Remove the rear wheels.

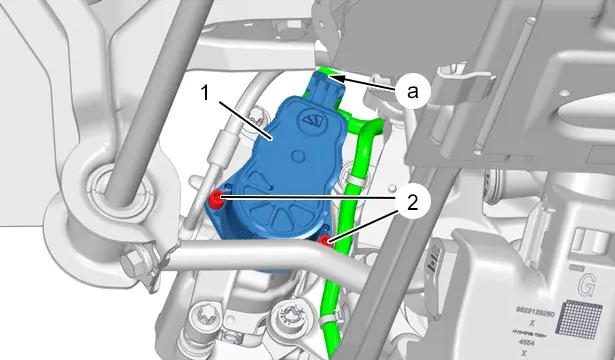

Disconnect the electrical harness connector (at "a").

Remove :

• The bolts (2)
• The rear motorised brake caliper actuator (1)

4. Refitting

CAUTION : Observe the tightening torques.

INTERNAL COMBUSTION DRIVE TRAIN OR MHEV DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

PHEV DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

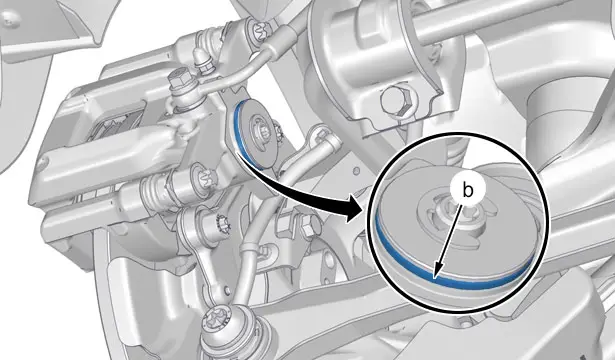

CAUTION : Always replace the seal (at "b").

Refit :

• The rear motorised brake caliper actuator (1)
• The new bolts (2)

Reconnect the electrical harness connector (at "a").

Refit :

• The rear wheels
• The vehicle to its wheels

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).

If replacing the actuator (1) of the rear motorised brake caliper ; Using the diagnostic tool :

• Follow the diagnostic tool procedure
• Read and clear the fault codes

Check a few times that the electric handbrake is working properly.
