Peugeot 308: Removing - refitting : Rear brake disc

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

ESSENTIAL : If the brake discs need to be replaced, always replace the 2 axle brake discs..

ESSENTIAL : Always replace the brake pads if replacing the discs.

1. Preliminary operations

CAUTION : Take care not to damage the brake hose.

N.B. : Do not open the braking circuit on the brake caliper.

MHEV DRIVE TRAIN

Remove the rear brake pads and rear power brake caliper bracket .

Move aside the brake caliper and secure it to the bodywork.

2. Removing

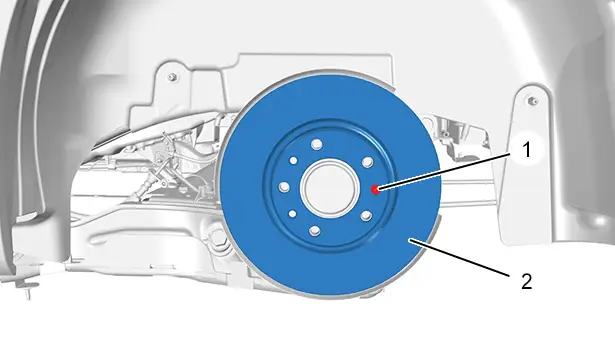

Remove :

• The bolt (1)
• The rear brake disc (2)

3. Cleaning

CAUTION : Do not use compressed air to clean the brakes.

3.1. First possibility

Clean the rear brake disc (2) and the brake caliper ; With a recommended brake cleaning product.

Leave to drip dry.

Wipe ; Using a paper cloth :

• The rear brake disc (2)
• The brake caliper

3.2. Second possibility

Use dust removal equipment approved by the manufacturer .

4. Check

Visually check :

• The sealing around the rear motorised brake caliper piston
• That the protective gaiters are in good condition and correctly adjusted
• The wear of the brake discs
• The wear of the brake pads
• The disc protector

Replace any defective parts.

CAUTION : The parts must be clean and free from any trace of abnormal wear or impact.

CAUTION : No trace of grease, oil or lubricant can be tolerated on the brake pads.

5. Refitting

CAUTION : Observe the tightening torques.

MHEV DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

Refit :

• The rear brake disc (2)
• The bolt (1)

6. Additional operations

MHEV DRIVE TRAIN

Refit the rear brake pads and the rear motorised brake caliper bracket. .
