Peugeot 308: Unlocking : Electric parking brake

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Replacement of parts in all cases

Description	Quantity (Per side)
Seal	1
Bolt (Actuator of the rear motorised brake caliper )	2

2. Preliminary operations

Place the vehicle on a 2-post lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the rear wheels.

3. Removing

N.B. : Operations to be applied to each side.

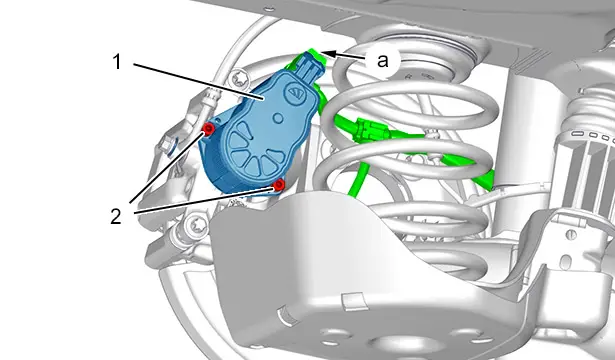

Disconnect the connector (at "a").

Close rear motorised brake caliper actuator (1) connector ; Using cleanliness plugs.

Remove :

• The bolts (2)
• The rear motorised brake caliper actuator (1)

N.B. : Operations to be applied to each side.

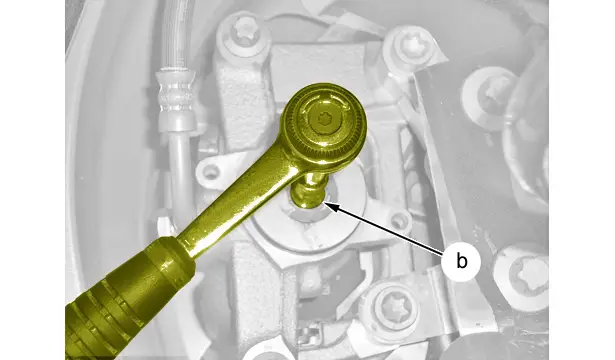

Tighten using a wrench to release the electric parking brake (at "b").

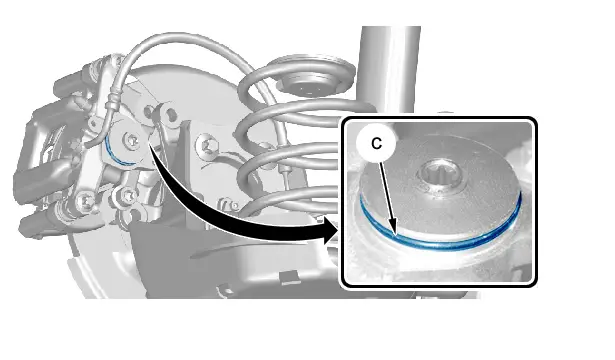

Remove the seal (at "c").

4. Refitting

CAUTION : Observe the tightening torques.

INTERNAL COMBUSTION DRIVE TRAIN OR MHEV DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

PHEV DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

ELECTRIC DRIVE TRAIN

Tightening torques :

• Braking system
• Wheels

N.B. : Operations to be applied to each side.

Refit :

• The new seal (at "c")
• The rear motorised brake caliper actuator (1)
• The new bolts (2)

Reconnect the connector (at "a").

5. Additional operations

Refit :

• The rear wheels
• The vehicle to its wheels

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).
