Peugeot 308: Removing - refitting : Rear bumper - Rear bumper supports

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

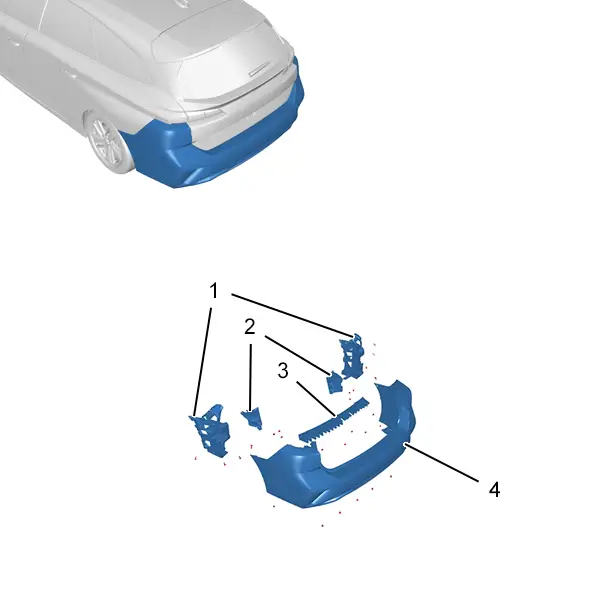

1. Location

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the rear mud guards .

4. Removing

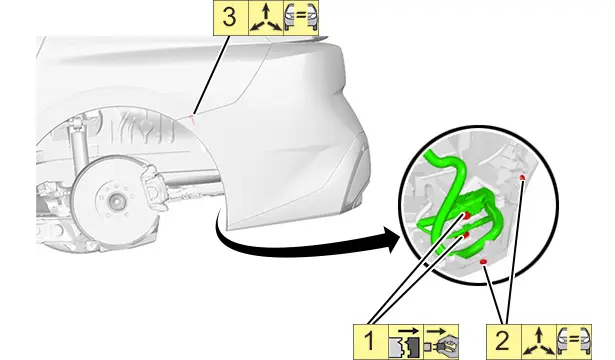

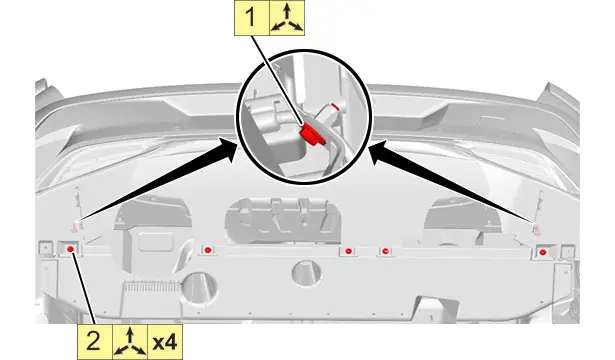

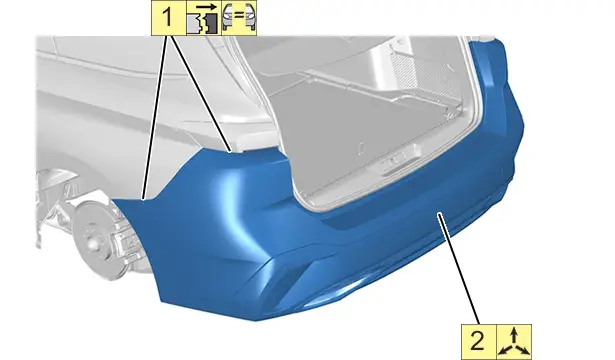

4.1. Rear bumper

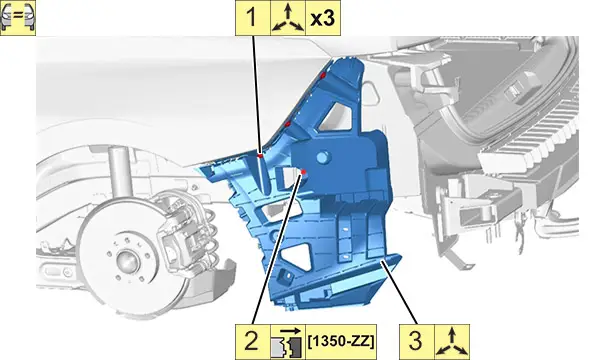

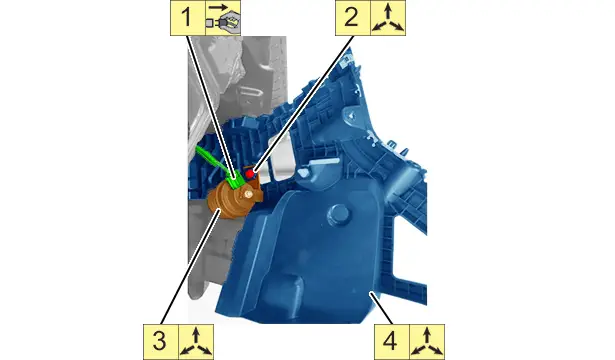

4.2. Rear bumper side bracket

N.B. : According to vehicle equipment(right-hand side).

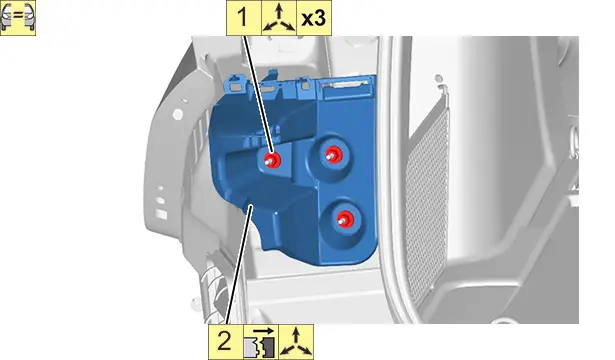

4.3. Rear bumper upper support

Remove the rear lamps .

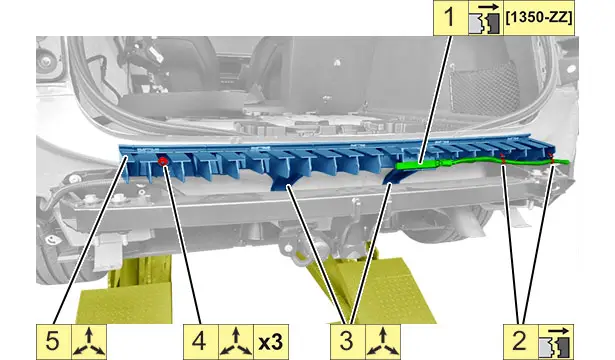

4.4. Rear bumper central support

5. Refitting

CAUTION : Observe the tightening torques .

Proceed in the reverse order to removal.

6. Additional operations

Refit the rear mud guards .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

Check the operation of the various equipment.
