Peugeot 308: Tightening torques : Rear section
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Rear section / Rear bumper / Tightening torques : Rear section
ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

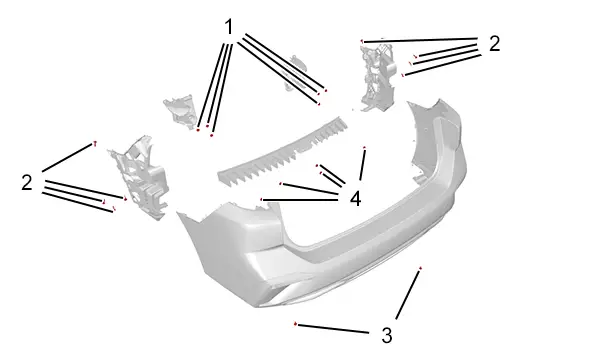

1. Rear bumper
| Identification | Description | Tightening torques |
| (1) | Nuts (Rear bumper support / Body) | 0,8 daNm |
| (2) | Bolt (Rear bumper support / Body) | 0,8 daNm |
| (3) | Bolt (Rear bumper / Body) | 0,8 daNm |
| (4) | Nuts (Rear bumper support / Body) | 0,8 daNm |

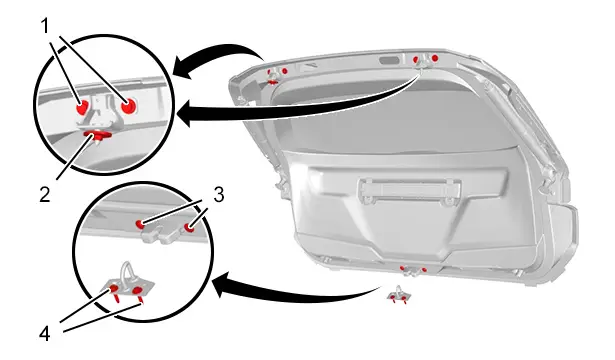

2. Tailgate
| Identification | Description | Tightening torques |
| (1) | Bolt (Tailgate hinges / Tailgate) | 2,2 daNm |
| (2) | Nut (Tailgate hinges / Body) | 2,2 daNm |
| (3) | Bolt (Tailgate lock / Tailgate) | 0,8 daNm |
| (4) | Bolt (Tailgate striker / Rear panel ) | 0,8 daNm |
