Peugeot 308: Removing - refitting : Rear wiper mechanism

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Rear section / Rear screen / Removing - refitting : Rear wiper mechanism

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

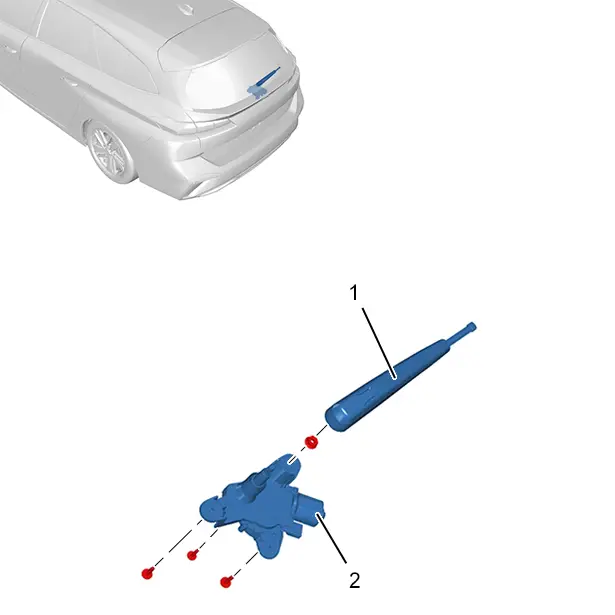

1. Location

Identification Description Quantity
(1) Wiper arm-blade 1
(2) Rear wiper mechanism 1

2. Tooling

Tool Reference Description

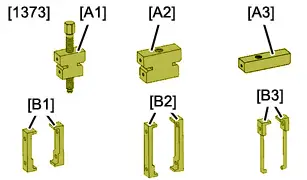

[1373] Wiper arm extractor

[1350-ZZ] Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

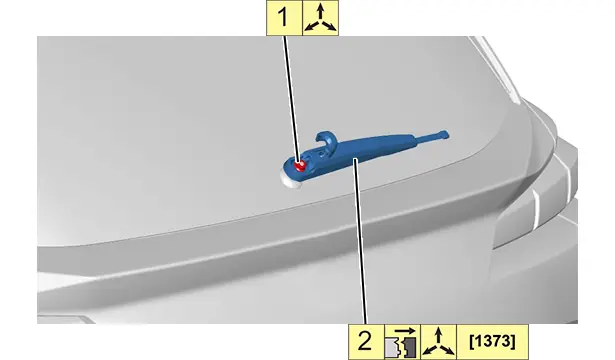

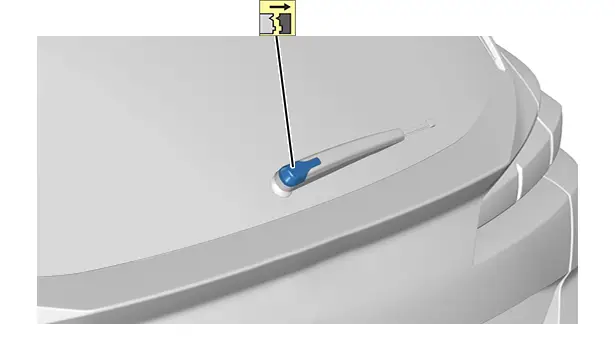

4.1. Wiper arm-blade

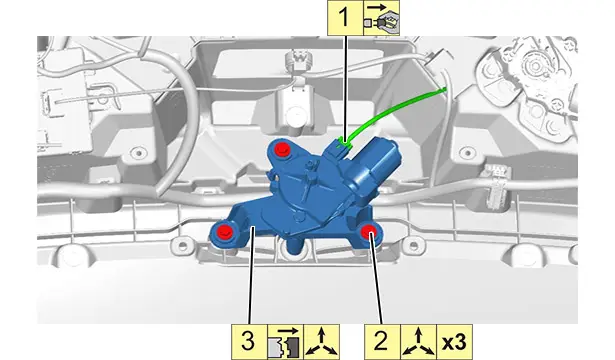

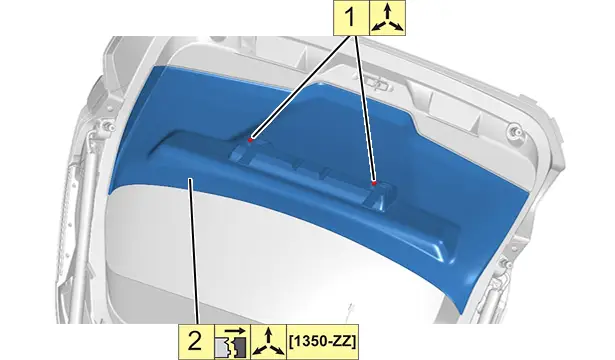

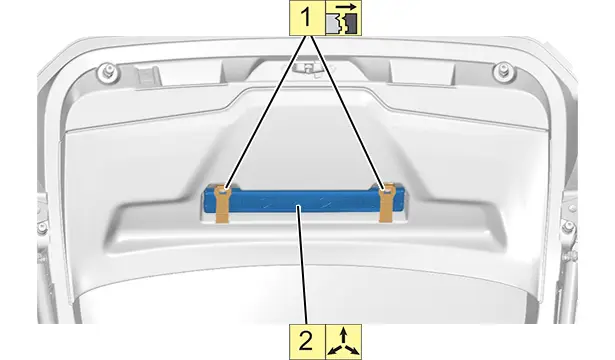

4.2. Rear wiper mechanism

5. Refitting

CAUTION : Before tightening the windscreen wiper arms , operate the wipers ; Place the wipers control in the off position.

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

7. Check

Reconnect the ancillaries battery or batteries (depending on equipment).
