ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).
Key : Operation symbols
.

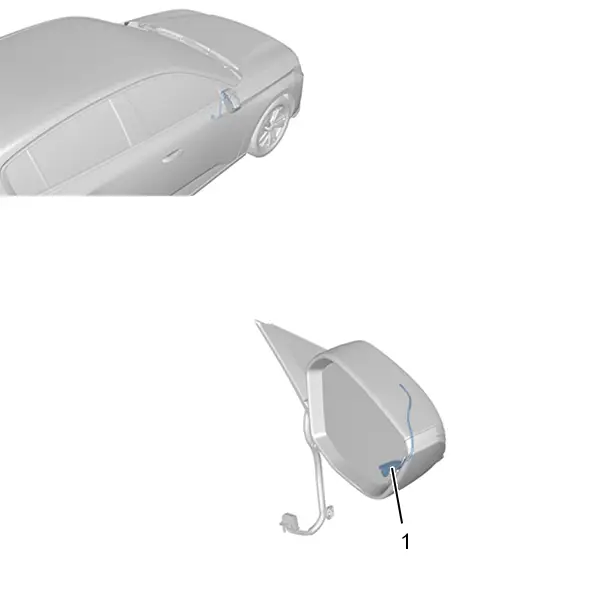

1. Location
Marking | Description | Quantity |
(1) | Exterior temperature sensor | 1 |
2. Preliminary operations
N.B. : The exterior temperature sensor is located in the right-hand exterior mirror.
Strip the exterior mirror
.
CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).

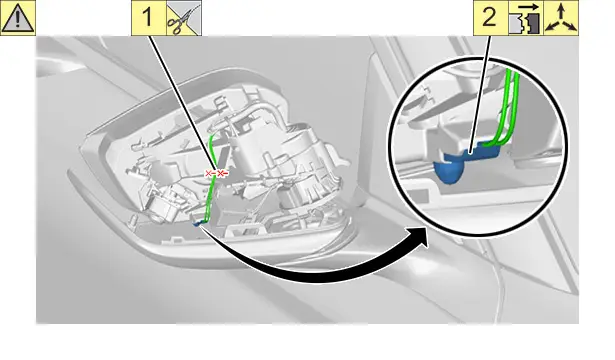

3. Removing
CAUTION : Leave a sufficient length to re-establish the electrical connection of the exterior temperature sensor (40 mm).
4. Refitting
Restore the electrical connection of the external temperature sensor using soldered sleeves (type RAYCHEM) then insulate with heat-shrink sleeves
.
Proceed in the reverse order to removal.
5. Additional operations
Re-trim the exterior mirror
.
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
6. Check
Check the operation of the various equipment.
