Peugeot 308: Stripping-assembling : Exterior mirror

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front doors and trims / Rear view mirrors / Stripping-assembling : Exterior mirror

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Tooling

Tool Reference Description

[1350-ZZ] Stripping tools

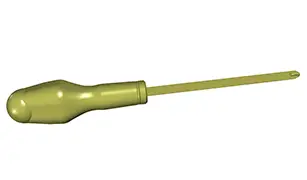

- Torx-headed driver T10(screwdriver with a minimum length of 150 mm)

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries ( depending on the equipment ).

3. Stripping

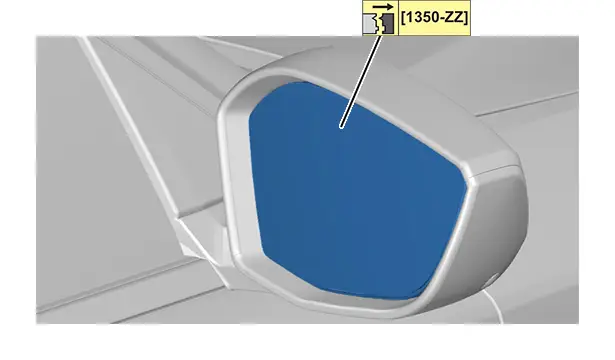

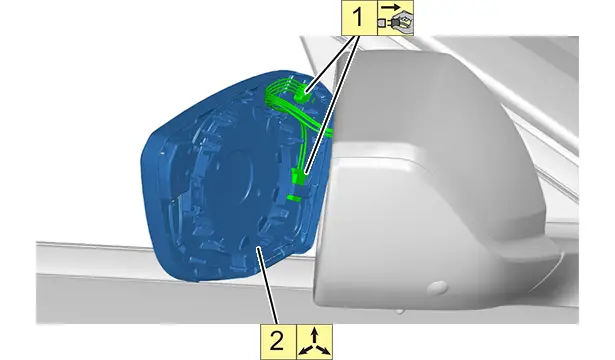

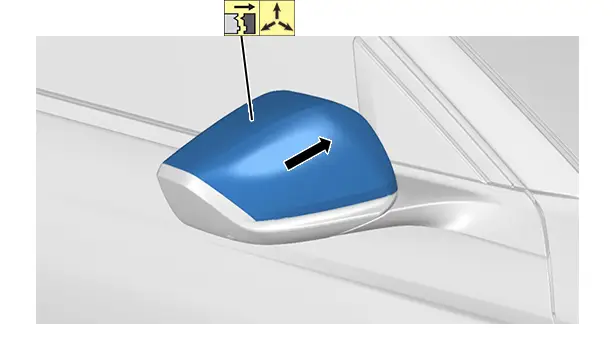

3.1. Exterior mirror glass

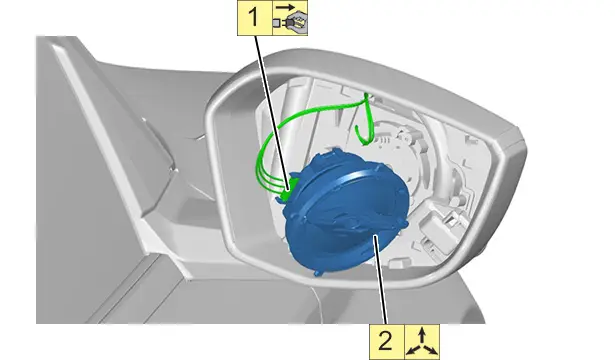

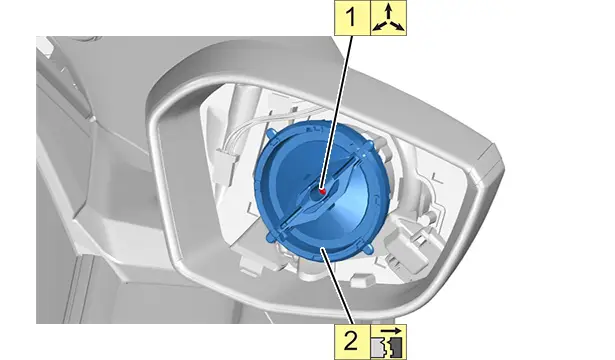

3.2. External rear-view mirror glass adjustment motor

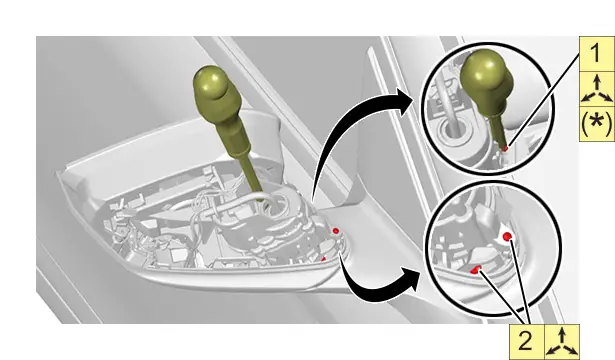

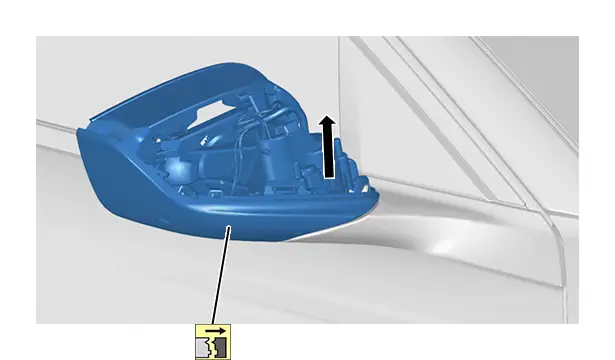

3.3. Exterior rear view mirror shell

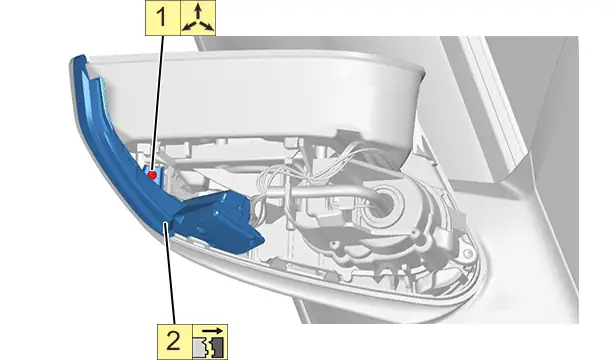

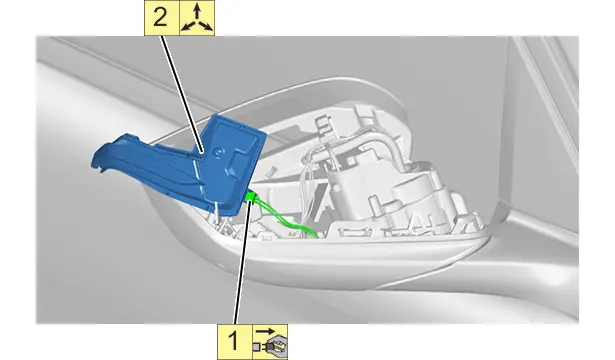

3.4. Direction indicator side repeaters

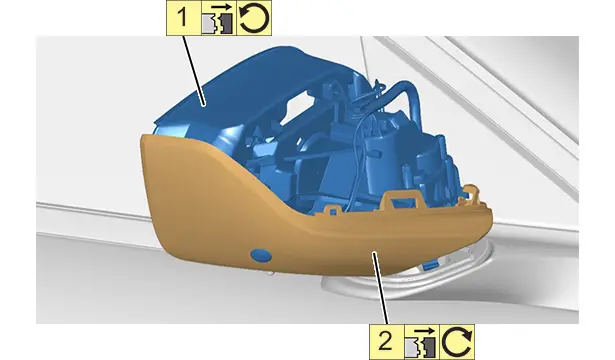

3.5. Trims

N.B. : Remove the bolt ; Using a screwdriver.

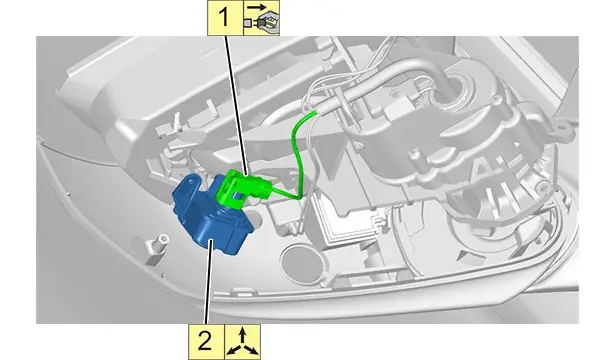

3.6. Exterior mirror parking assistance camera lens

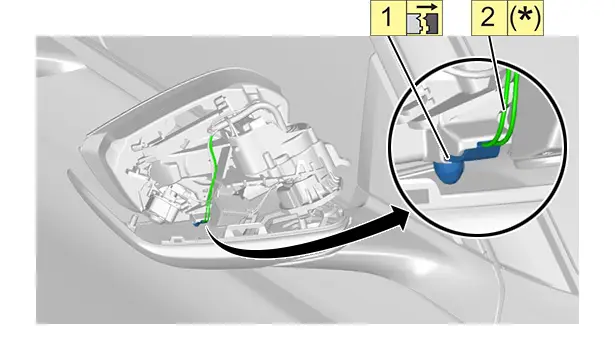

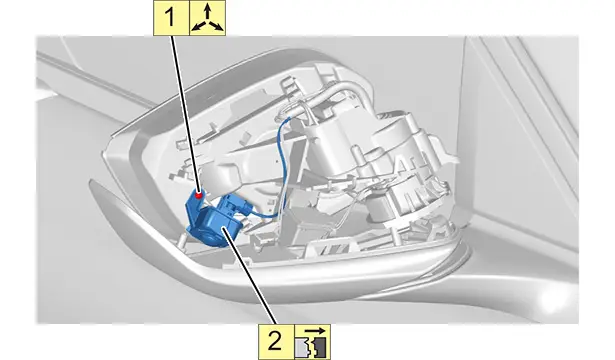

3.7. Exterior temperature sensor

N.B. : Remove the exterior temperature sensor signal .

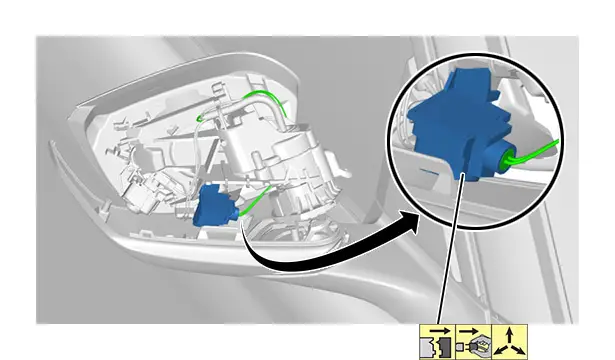

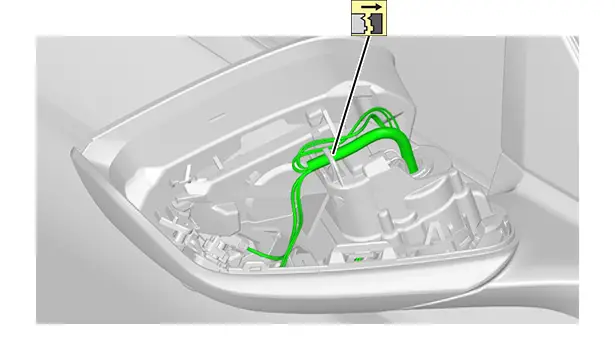

3.8. Welcome lighting

4. Assembling

Carry out the operations in the reverse order to the stripping operations.

5. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries ( depending on the equipment ).

6. Check

Check the operation of the various equipment.
