Peugeot 308: Replacement : Rear wing inner panel rear part

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Rear section / Rear wing / Replacement : Rear wing inner panel rear part

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

  • MIG braze welding with cupro-aluminium filler used with an inert gas
  • MAG welding with steel filler metal and active gas

Designation of the high strength panels :

  • High strength (HSS) : High strength steel
  • Very high strength (VHSS) : Very high strength steel
  • Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Workshop equipment :

  • Swan’s neck drill for cutting out electric spot welds
  • Hot air blower

Tool Reference Description

[1366-ZZ] Toolkit for testing electric spot welds

[1366] Samples for testing electric spot welds

[1126] Set of drill bits for removing spot welds

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries.

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

  • The rear door
  • The rear door ‎ aperture seal ‎
  • The rear bumper
  • The rear lamp
  • The interior trims

Release the electrical harnesses.

Replace :

  • The partial rear wing
  • The rear wing inner panel upper part
  • The rear quarter panel inner panel expanding insert

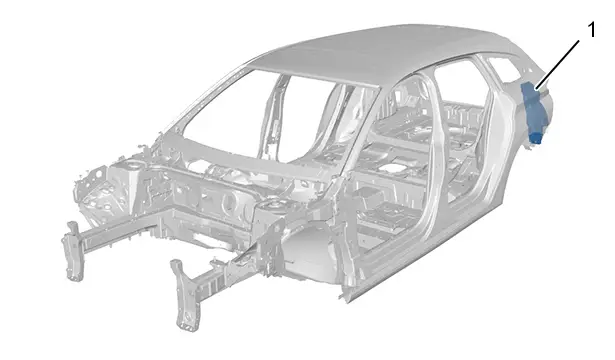

4. Location of the replacement part

Marking Description
(1) Rear wing inner panel rear part

5. Identification of the replacement part

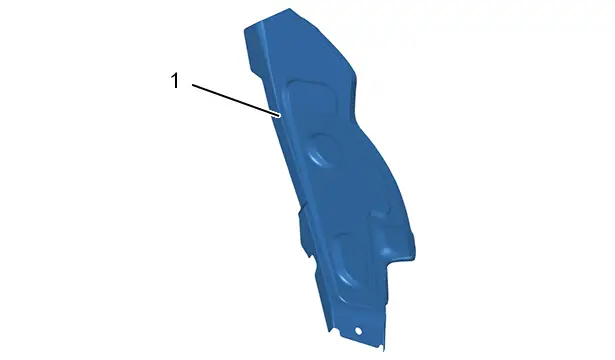

5.1. Composition : Rear wing inner panel rear part

Marking Description Thickness Nature/classification
(1) Rear wing inner panel rear part 0,64 mm Mild steel

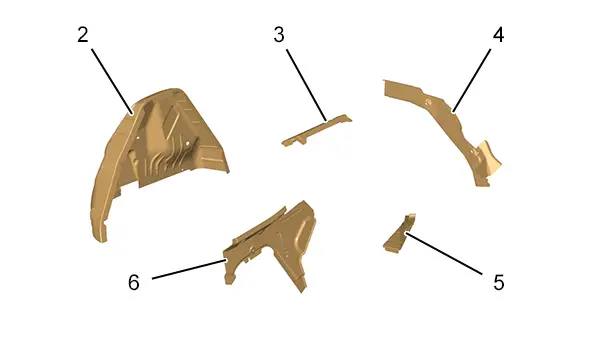

5.2. Identification of the parts adjacent to the replacement part

Marking Description Thickness Nature/classification
(2) Rear wheel arch 0,80 mm Mild steel
(3) Rear wing inner panel top part 0,65 mm High strength (HSS)
(4) Rear wing drip moulding gusset 1,25 mm Mild steel
(5) Rear wing lower closing panel 0,65 mm Mild steel
(6) Quarter panel inner panel 0,65 mm Mild steel

6. Replacement part preparation

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

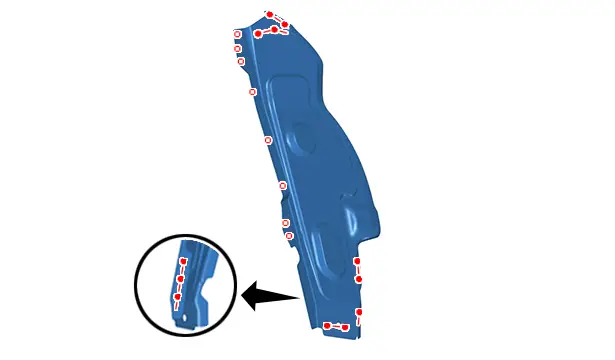

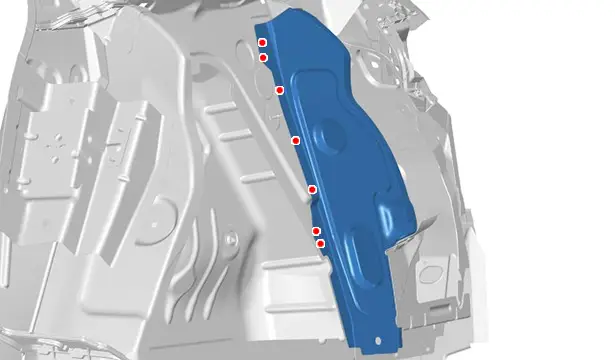

Mark then drill to a diameter of 7 mm for later plug welding.

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

7. Cutting of the part on the body

Cut out the spot welds .

Detach the inner rear wing panel rear part at the beads of structural adhesive ; Using the hot air blower.

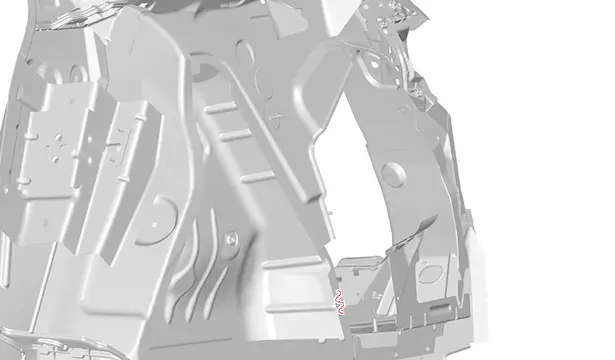

Remove the rear inner wing panel rear part.

8. Cleaning and preparation of the body

Prepare the mating edges and protect them using a weldable primer  (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

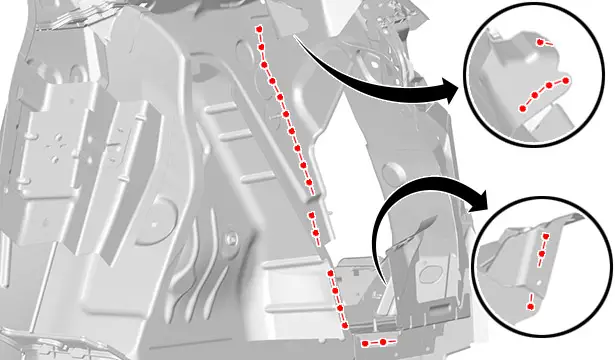

Apply a structural adhesive index "B3".

9. Adjustment

Position :

  • The rear wing panel rear section
  • The components for adjusting

Clamp the part into position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

  • Electric spot weld testing ; Using the tool [1366-ZZ]
  • Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

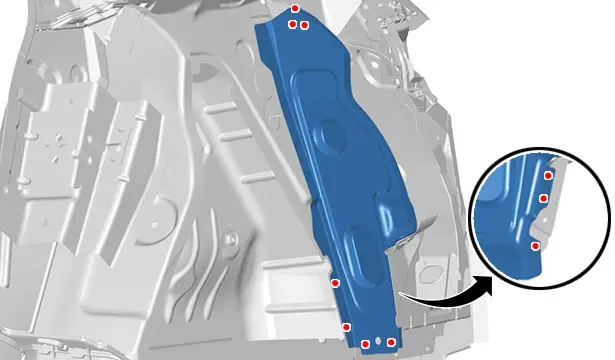

Weld with MAG plug welds.

Grind the MAG plug welds.

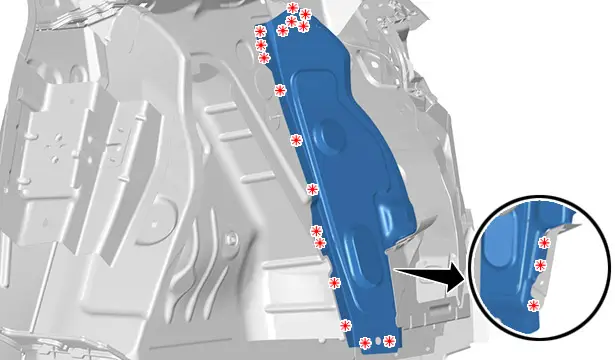

Weld with electric spot welds.

11. Sealing protection

Apply a phosphate-print layer to the zones laid bare.

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

Restore the voltage supply to the vehicle.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries.
