Peugeot 308: Replacement : Rear wing inner panel top part

Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Rear section / Rear wing / Replacement : Rear wing inner panel top part

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be isolated by an authorised technician.

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Observe the precautions to be taken for the pyrotechnic components .

ESSENTIAL : Any repair work carried out on a vehicle with on board electric energy (electric vehicle/hybrid vehicle) must be carried out by an authorised person.

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

1. Information

Types of spot welds or beads using the electric arc process :

  • MIG braze welding with cupro-aluminium filler used with an inert gas
  • MAG welding with steel filler metal and active gas

Designation of the high strength panels :

  • High strength (HSS) : High strength steel
  • Very high strength (VHSS) : Very high strength steel
  • Ultra high strength (UHSS) : Ultra high strength steel

N.B. : Use the products recommended by the manufacturer .

2. Tooling

Workshop equipment :

  • Swan’s neck drill for cutting out electric spot welds
  • Hot air blower

Tool Reference Description

[1366-ZZ] Toolkit for testing electric spot welds

[1366] Samples for testing electric spot welds

[1126] Set of drill bits for removing spot welds

3. Preliminary operations

ESSENTIAL : Deactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required before disconnecting the ancillaries batteries .

Disconnect the ancillaries batteries (Following the specific procedure ).

CAUTION : Either remove or protect those components which are in the repair zone and risk being damaged by the heat or the dust.

Remove :

  • The rear door
  • The rear door aperture seal
  • The rear bumper
  • The rear lamps
  • The interior trims

Release the electrical harnesses.

Replace :

  • The partial rear wing
  • The rear wing strengthener bulkhead
  • The rear quarter panel inner panel front expanding insert

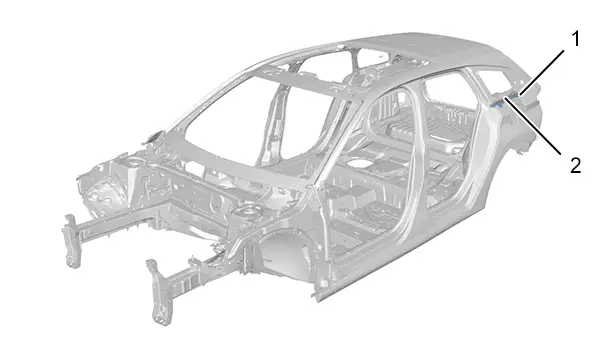

4. Location of the replacement part

Identification Description
(1) Rear wing inner panel top part
(2) Rear quarter panel inner panel front expanding insert

5. Identification of replacement parts

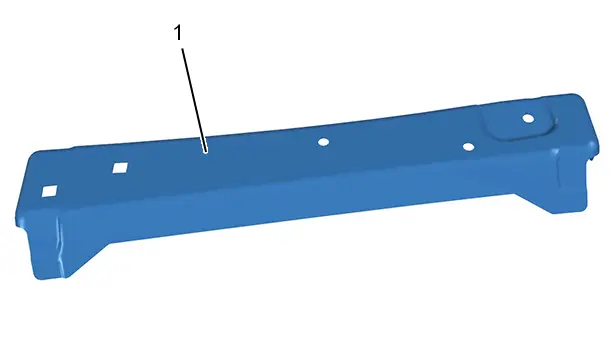

5.1. Composition : Rear wing inner panel top part

Identification Description Thickness Nature/classification
(1) Rear wing inner panel top part 0,95 mm Mild steel

CAUTION : Take into account the difference in thickness of the part when setting the welding station.

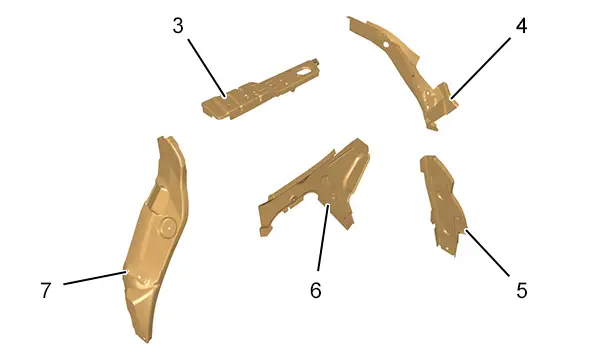

5.2. Identification of the parts adjacent to the replacement part

Identification Description Thickness Nature/classification
(3) Rear belt reel fixing strengthener 1,45 mm High strength (HSS)
(4) Rear wing drip moulding gusset 1,25 mm Mild steel
(5) Rear wing inner panel rear part 0,65 mm Mild steel
(6) Quarter panel inner panel 0,65 mm Mild steel
(7) Rear wing inner panel front part 0,85 mm Mild steel

6. Replacement part preparation

CAUTION : When cleaning the mating edges, use scouring wheels only to avoid damaging the anticorrosion protection.

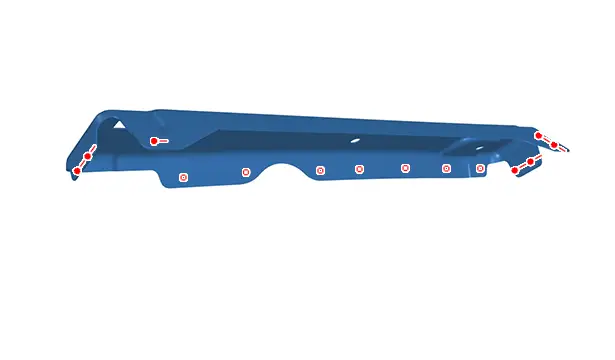

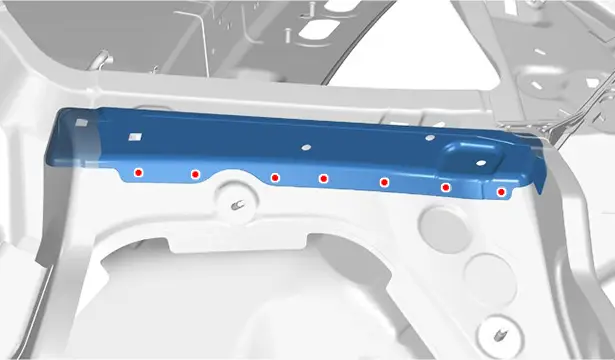

Mark then drill to a diameter of 7 mm for later plug welding.

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

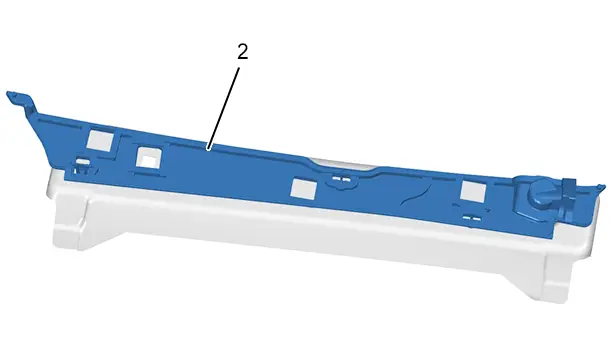

Clip in the expanding insert (2) .

7. Cutting of the part on the body

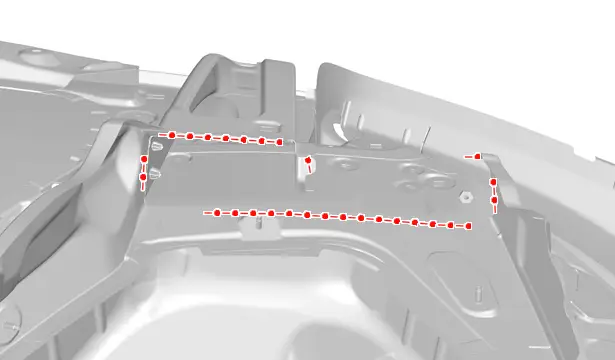

Cut out the spot welds .

Cut :

  • The spot welds
  • The spot weld over 2 thicknesses (at "a")

Remove the rear wing inner panel top part.

8. Cleaning and preparation of the body

Prepare the mating edges and protect them using a weldable primer (index "C7").

N.B. : Apply the weldable primer on the internal faces of the panels to be welded.

9. Adjustment

Position :

  • The rear wing inner panel upper part
  • The components for adjusting

Clamp the part into position.

10. Welding

CAUTION : Set the welding station.

Setting of the welding station :

  • Electric spot weld testing ; Using the tool [1366-ZZ]
  • Samples for testing electric spot welds ; Using the tool [1366]

CAUTION : The number of spot welds or weld beads required for assembling a new component must be identical to the number of spot welds or weld beads attaching the original component.

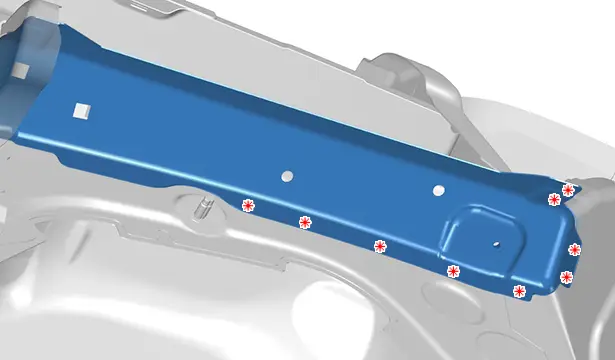

Weld with MAG plug welds.

Grind the MAG plug welds.

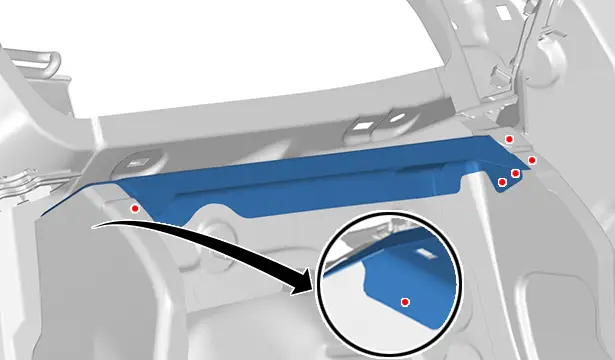

Weld with electric spot welds.

11. Sealing protection

Apply a phosphate-print layer to the zones laid bare.

Painting, then spraying of the index "C5" product into the hollow sections in the repair zone.

12. Additional operations

Refit the electrical harnesses and reinstall all removed components.

13. Reinitialisation

ESSENTIAL : Reactivate the pyrotechnic systems .

CAUTION : Perform the operations that are required after reconnecting the ancillaries batteries .

Reconnect the ancillaries batteries (Following the specific procedure ).
