Peugeot 308: Removing - refitting : Airbags and pretensioners ECU

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

ESSENTIAL : Apply the airbag safety procedures .

ESSENTIAL : Apply the procedure for switching off the central airbag system .

CAUTION : Carefully unlock and disconnect the connectors ; When connecting, check the routing and clipping of the electrical harnesses.

CAUTION : Disconnecting the connectors has to be done without exerting any stress on the electrical harnesses or the connectors (No pulling is allowed on the electrical harness).

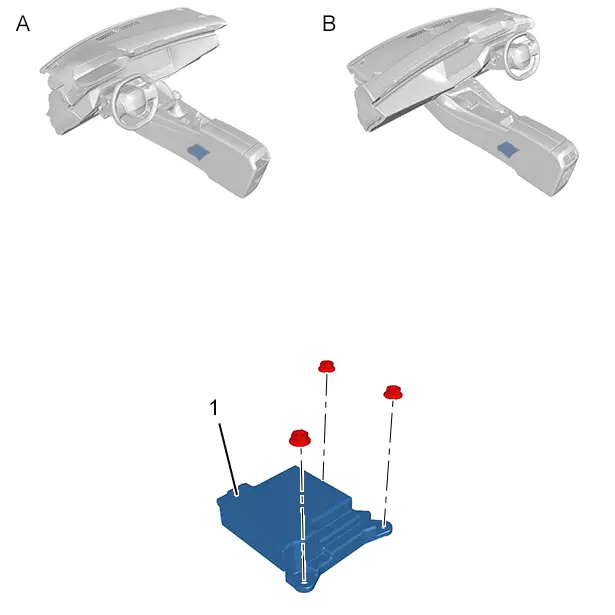

1. Location

"A" left-hand drive.

"B" right-hand drive.

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the rear portion of the centre console.

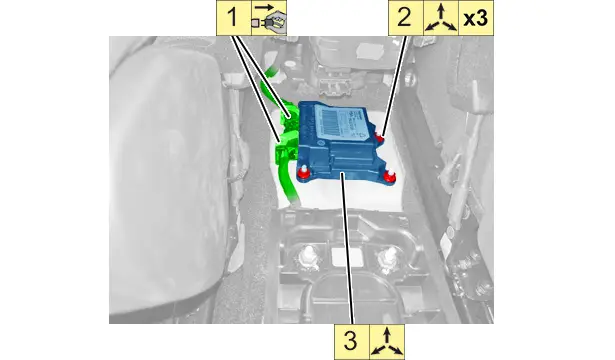

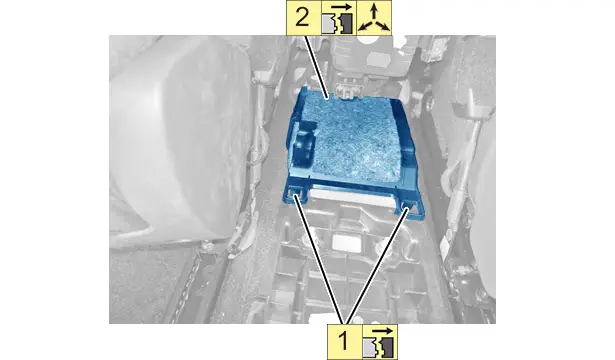

3. Removing

4. Refitting

Proceed in the reverse order to removal.

Refit the rear part of the centre console.

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

5. Check

ESSENTIAL : Apply the procedure for switching on the centralised airbag system .

Switch on the ignition.

Check the operation of the "airbags" warning lamp on the instrument panel.

N.B. : The warning lamp comes on for 6 to 8 seconds then goes off.

If the warning lamp does not switch off, read the fault codes.

Check the operation of the various equipment.

Removing - refitting : seat side airbagRemoving - refitting : Driver’s airbag
