Peugeot 308: Replacement : Pyrotechnic components (Following deployment of the airbags and seat belts)
ESSENTIAL : Observe the safety and cleanliness recommendations
.
1. Parts required
Replace (In the event of impacts and following each triggering) :
- The special gas generator connectors must be replaced if they are damaged
- The airbags and pretensioners ECU
- The components listed in the "Compulsory replacements" column (depending on equipment)
2. Triggering with or without collision
| Pyrotechnic devices triggered | Compulsory replacements | Optional replacements |
| Driver’s airbag | Driver’s airbag - Steering wheel - Steering wheel angle sensor / Steering wheel control | Steering columnCheck the fitting and condition of the surrounding parts and of the electrical harnesses (Replace any defective parts) |
| Passenger’s airbag under the dashboard skin | Passenger airbag - Dashboard | Check the fitting, fits and clearances, and the condition of the surrounding parts and of the electrical harnesses (Replace any defective parts) |
| Passenger’s airbag with capping | Passenger airbag | |
| Passenger’s airbag under the headlining | Passenger airbag - Headlining | |
| Roof airbag | Roof airbag ; Headlining | Faulty adjacent parts or roof |
| Front chest side airbag under cover | Side airbag ; Front seat ; Buckle strapPre-tensioning stalk ; Electric seat slide sensorDoor trim | Front seat belt height adjustment ; Check the seat fixings |
| Rear chest side airbag under cover (Triggering combined with front chest) | Side chest air bag ; Door trim | Impact sideGlass ; seal ; Electric window mechanism ; Door harness and other damaged accessories |
| driver’s knee airbag (Triggering combined with driver and passenger air bag) | Airbag ; Dashboard | steering column covers ; Lower components of the dashboard |
| Seat fitted with active anti-submarining | Airbag | Seat concerned |
| Pre-tensioning buckle strap (Simultaneous triggering with driver and passenger airbag) | Pre-tensioning buckle strap | If seat belt triggered (Pre-tensioning stalk : Return adjustment ; Seat lining and frame if damaged) |
| Pre-tensioning stalk (Simultaneous triggering with driver and passenger airbag) | Pre-tensioning stalk Return adjustment | If seat belt triggered : Buckle strap (If damaged) |
| Buckle strap return | Strap buckle and strap return assembly | If seat belt triggered : Return adjustment |
| Active pedestrian impact bonnet | Pedestrian impact detection force sensor, pedestrian impact detection acceleration sensor, pedestrian impact detection ECU, actuators, compass, compass cover (depending on equipment) | Check the electrical harnesses and connectors |
| Roll-over hoops (Coupe cabriolet) | Rear, protective, pop-up roll-over hoops cassette ; Roll-over ECU | - |
N.B. : If the vehicle is fitted with 2 chest side airbags (front and rear), replace the 2 airbags even if one of the airbags has not been triggered.
3. Visual methods for checking whether a component has been deployed
3.1. Pyrotechnic seat belt inertia reel(s)
The triggering of a pyrotechnic seat belt inertia reel is indicated by :
- Lighting of the side airbag warning light on the instrument panel
- A fault code recorded and read using the diagnostic equipment
- A characteristic noise of balls noticed following removal of the inertia reel

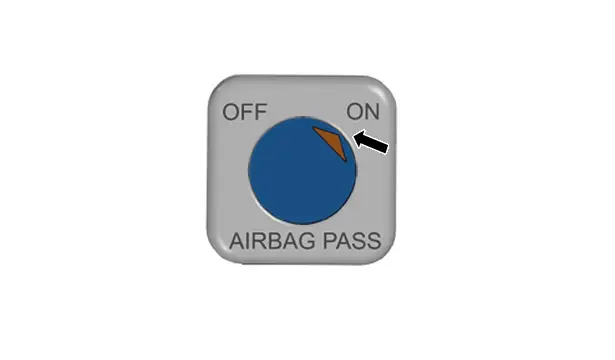

3.2. Passenger’s airbag deactivation switch
The status of the disarming switch for the passenger airbag is activated in the on position, or de-activated in the off position, by means of the ignition key :
- The on position triggers the airbag in the case of a frontal impact
- The displaying of this function is enhanced for use by an indicator light on the instrument panel
4. Instructions for replacement of parts
All parts to be destroyed outside of warranty will be triggered.
CAUTION : Any part still under warranty will be returned without being triggered, observe the pyrotechnic component transport procedure.
5. Conditions for transporting explosive components
The parts must be transported in the packaging recovered during the replacement operation.
6. Check after repair
CAUTION : After any work performed on the central airbags system, carry out a fault reading with the diagnostic equipment .
