Peugeot 308: Removing - refitting : Hands-free access and starting aerials

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

Key : Operation symbols .

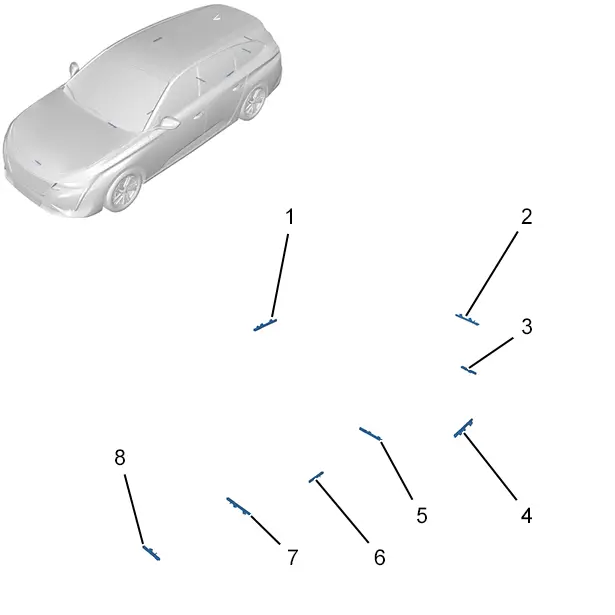

1. Location

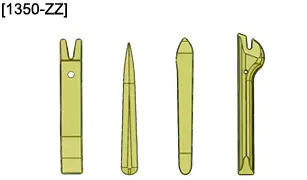

2. Tooling

3. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

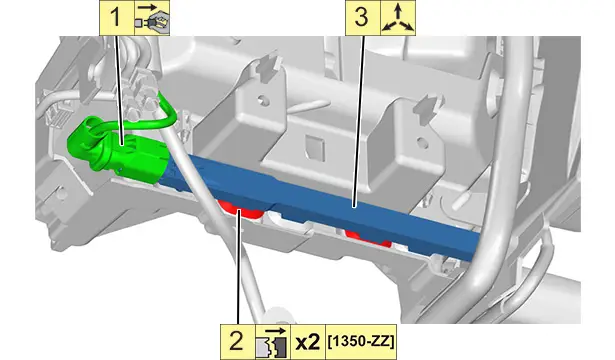

4.1. Boot interior aerial

Remove the rear bench seat cushion .

4.2. Rear bumper aerial

Remove the rear bumper .

4.3. Rear door interior aerial (Left and right)

Remove the rear door trim .

4.4. Dashboard interior aerial

Remove the centre console .

4.5. Front bumper aerial

Remove the front bumper .

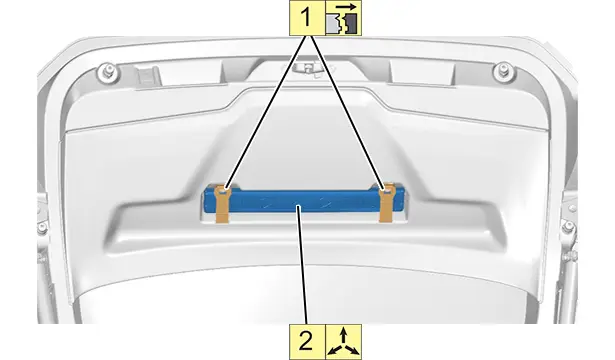

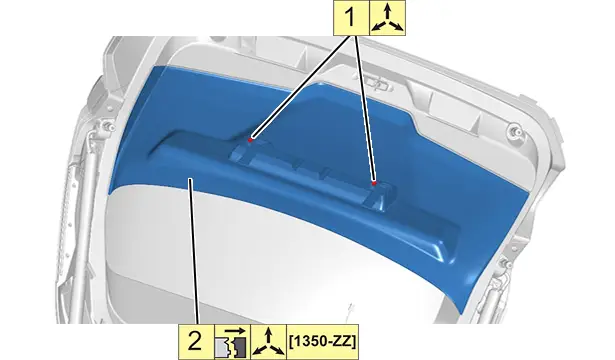

4.6. Tailgate interior aerial

4.7. Central interior aerial

Remove the centre console .

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

Check the operation of the various equipment.
