Peugeot 308: Removing - refitting : Controls on the steering wheel

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

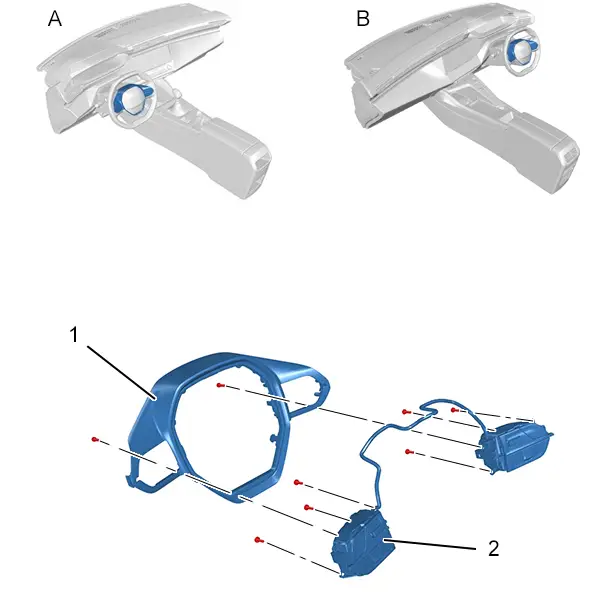

1. Location

"A" : left-hand drive.

"B" : right-hand drive.

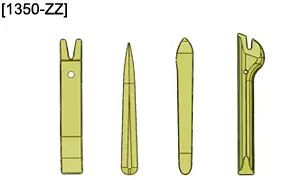

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

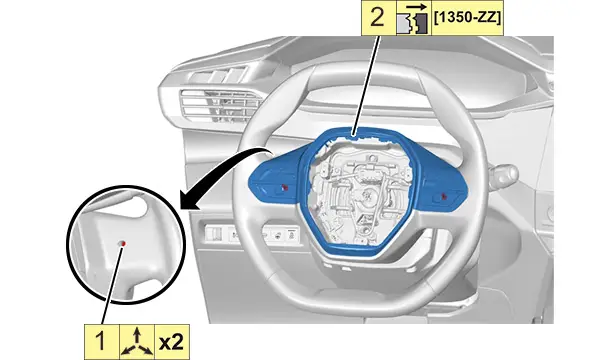

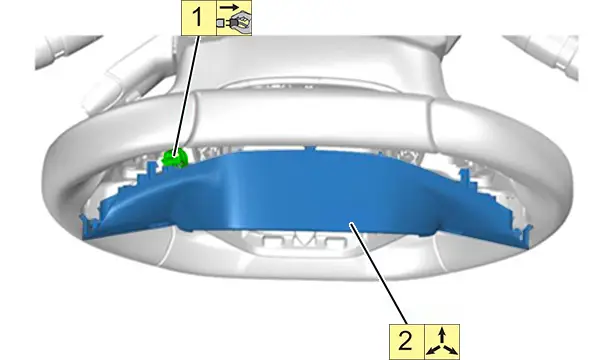

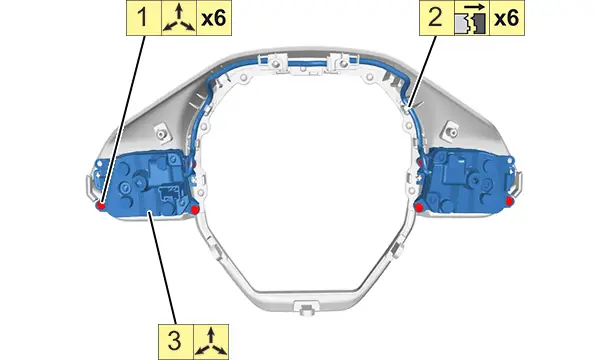

Remove :

• The driver’s airbag
• The gear controls at the steering wheel (depending on equipment)

5. Refitting

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Rebrancher la ou les batteries de servitude (suivant équipement).

7. Check

Check the operation of the various equipment.
