Peugeot 308: Removing - refitting : Sunroof deflector
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Roof and headlining assembly / Sunroof & bonnet / Removing - refitting : Sunroof deflector
ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

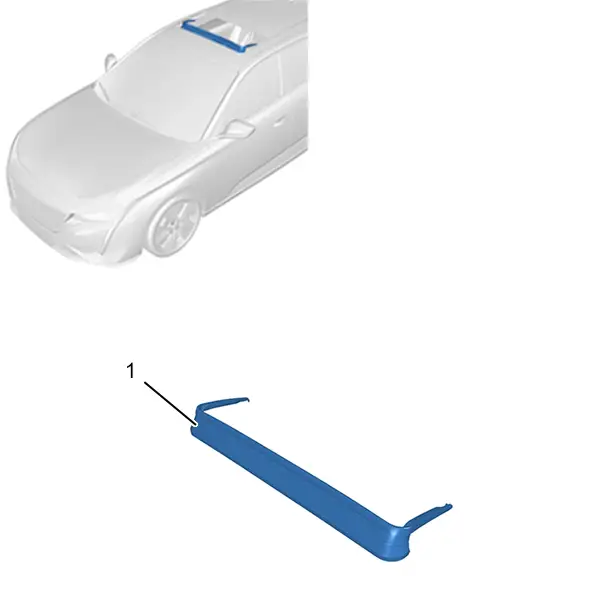

1. Location
| Identification | Description | Quantity |
| (1) | Sunroof deflector | 1 |

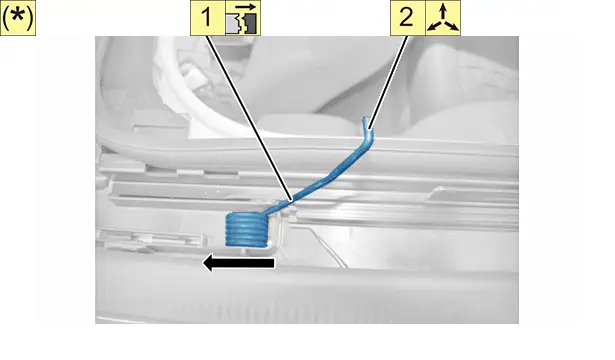

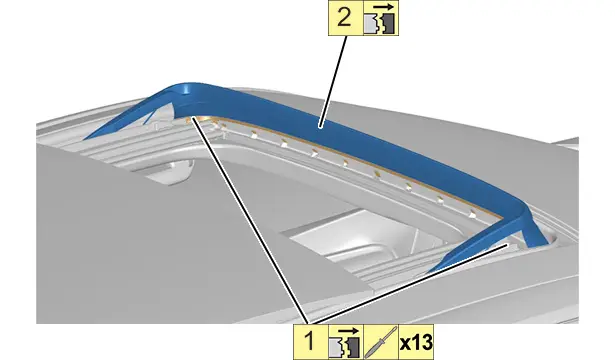

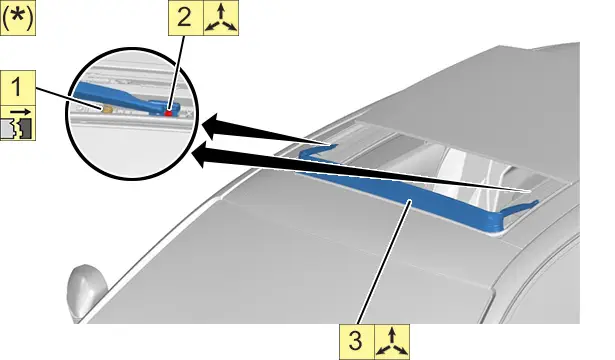

2. Removing
N.B. : Symmetrical operations.
N.B. : Symmetrical operation.
3. Refitting
Proceed in the reverse order to removal.
4. Check
Check the operation of the various equipment.
