Peugeot 308: Tightening torques : Front suspension

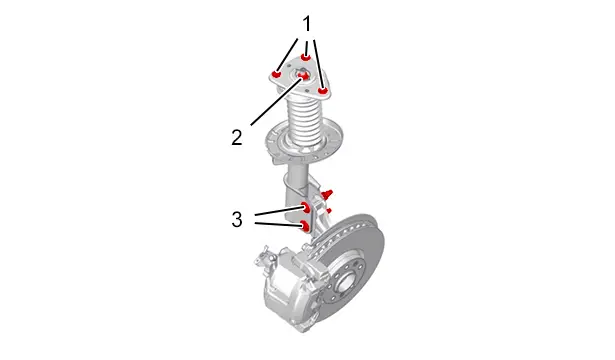

1. Suspension strut
CAUTION : The "Low Friction" bolts (or nuts) (3) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) that have been removed must be disposed of.
| Identification | Description | Tightening torque |
| (1) | Bolt (Suspension strut / Body) (*) | 3 daNm |
| (2) | Nut (Shock absorber upper cup) (*) | 7,5 daNm |
| (3) | Bolt-nut assembly (Front spring - shock absorber assembly / Hub carrier) (*) | Pre-tightening to 10 daNm |
| Angular tightening to 120 ° | ||
| (*) Always to be replaced whenever removed | ||

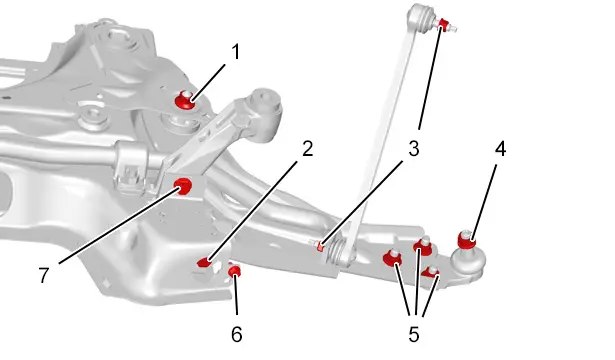

2. Front subframe
CAUTION : The "Low Friction" bolts (or nuts) (1), (2), (3), (4), (5), (7) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) that have been removed must be disposed of.
| Identification | Description | Tightening torque |
| (1) | Bolt-nut assembly (Lower suspension arm / Front subframe) (*) | Pre-tightening to 5 daNm |
| Angular tightening to 135° | ||
| (2) | Bolt-nut assembly (Lower suspension arm/Front subframe) (*) | Pre-tightening to 5 daNm |
| Angular tightening to 135 ° | ||
| (3) | Nuts with captive washer (Anti-roll bar rod) (*) | 4,3 daNm |
| Flanged nuts (Anti-roll bar rod) (*) | 6 daNm | |
| (4) | Nuts (Front hub carrier lower ball joint / Hub carrier) (*) | 6,5 daNm |
| (5) | Nuts (Front hub carrier lower ball joint / Lower arm) (*) | 9 daNm |
| (6) | Bolt (Body height sensor/Body) | 2 daNm |
| (7) | Bolt (Front subframe fixing support) (*) | Pre-tightening to 6 daNm |
| Angular tightening to 90° | ||
| (*) Always to be replaced whenever removed | ||

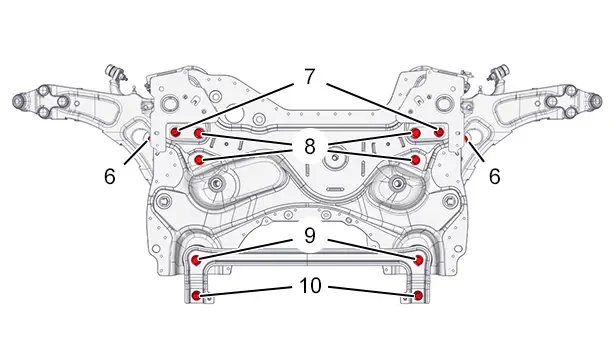

CAUTION : The "Low Friction" bolts (or nuts) (6), (7), (8), (9), (10) are only for single use and must always be replaced. All re-use is prohibited (risk of breakage). The bolts (or nuts) that have been removed must be disposed of.
| Identification | Description | Tightening torque |
| (6) | Bolt (Front subframe : With flexible mounting) (*) | 9 daNm |
| Bolt (Front subframe : Without flexible mounting) (*) | 9 daNm | |
| (7) | Bolt (Front subframe fixing support) (*) | Pre-tightening to 6 daNm |
| Angular tightening to 90° | ||
| (8) | Bolt (Anti-roll bar bearing ) (*) | Pre-tightening to 6 daNm |
| Angular tightening to 135° | ||
| (9) | Bolt (Front subframe) (*) | Pre-tightening to 7 daNm |
| Angular tightening to 90° | ||
| (10) | Bolt (Front subframe rear crossmember / Body) (*) | Pre-tightening to 8 daNm |
| Angular tightening to 45° | ||
| (*) Always to be replaced whenever removed | ||

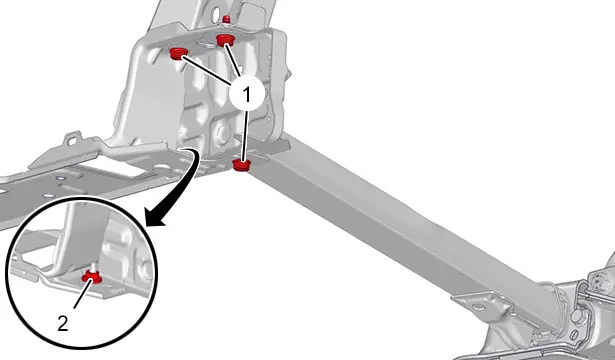

3. Front subframe extensions
| Identification | Description | Tightening torque |
| (1) | Bolt (Front subframe extensions) | 2 daNm |
| (2) | Nut (Front subframe extensions) | 2 daNm |
