Peugeot 308: Stripping-assembling : Rear door

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

1. Replacement of parts in all cases

Description	Quantity
Sealing sheet	1
Rivets	5

2. Tooling

Tool	Reference	Description
	[1350-ZZ]	Stripping tools

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Stripping

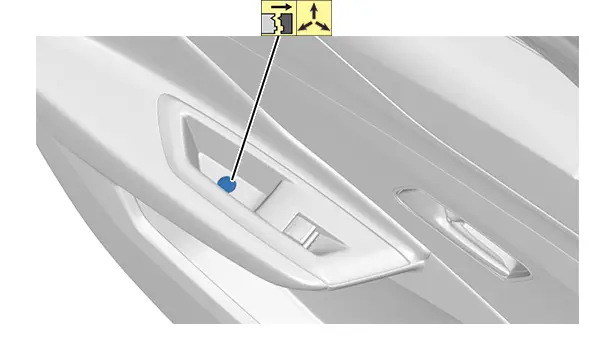

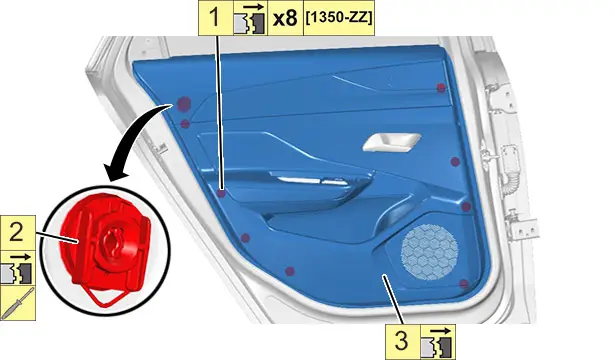

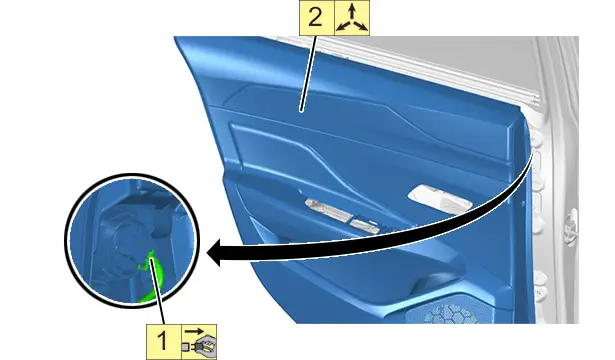

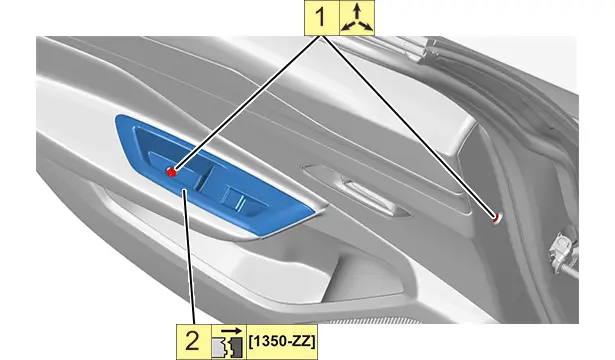

4.1. Rear door trim

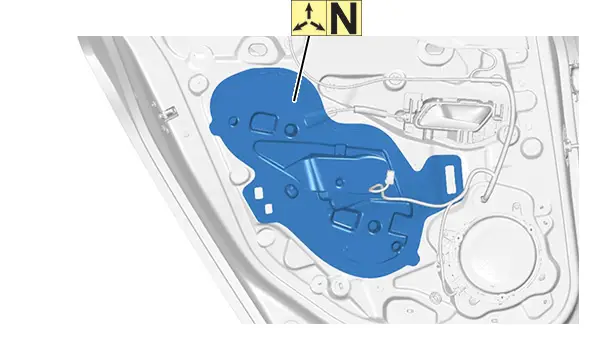

4.2. Sealing sheet

4.3. Rear door window

Remove the rear door window .

4.4. Rear door electric window mechanism

Remove the rear door window mechanism .

4.5. rear speakers

Remove the rear speakers .

4.6. Rear door interior aerial

Remove the rear door interior aerial .

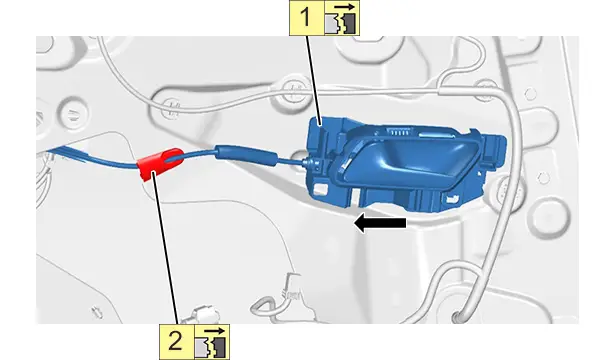

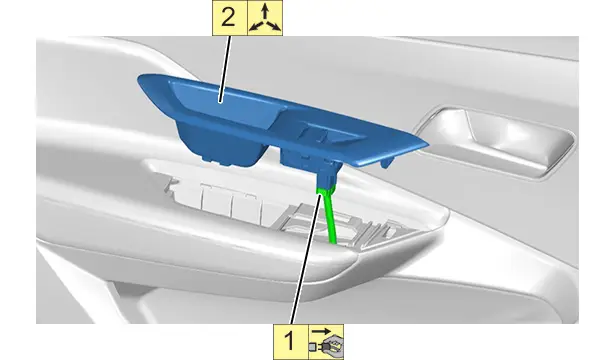

4.7. Rear door interior opening control

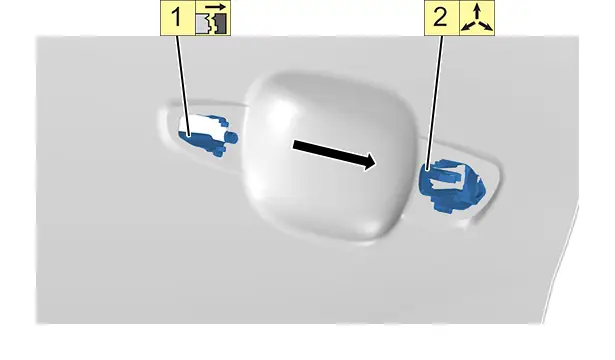

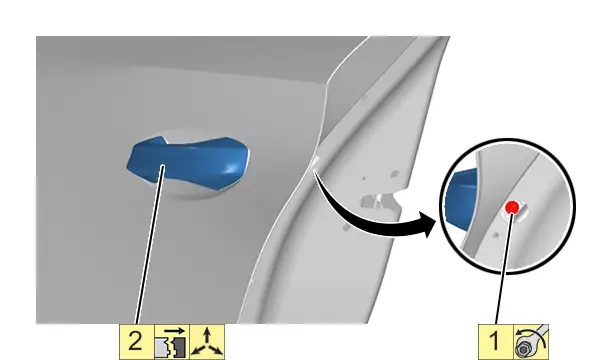

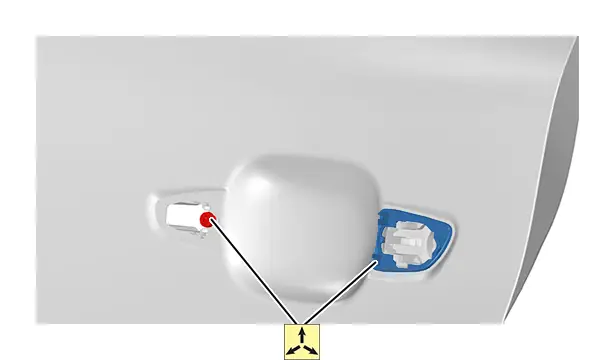

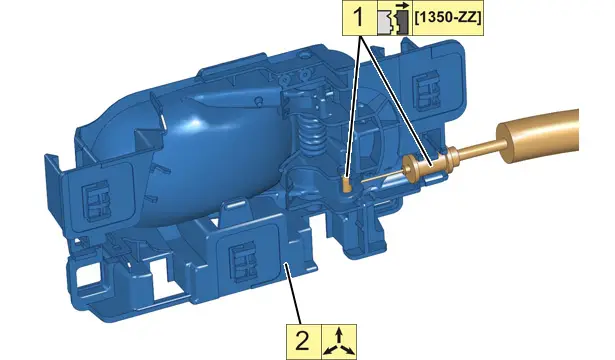

4.8. Rear door handle

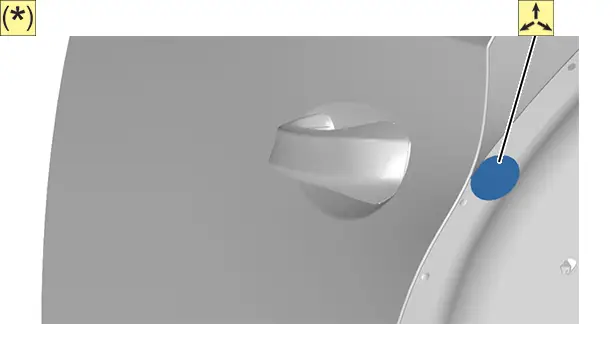

N.B. : Detach the rear door seal to remove the adhesive pad .

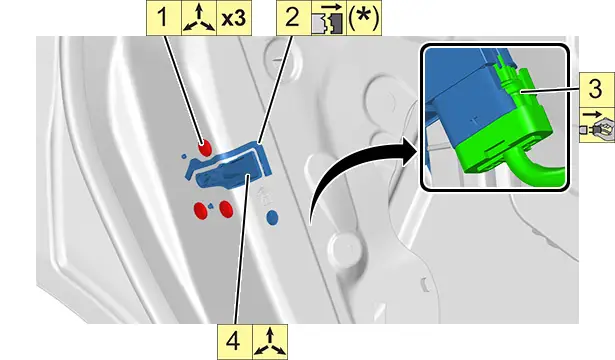

4.9. Rear door lock

N.B. : Detach the rear door lock via the door interior aperture.

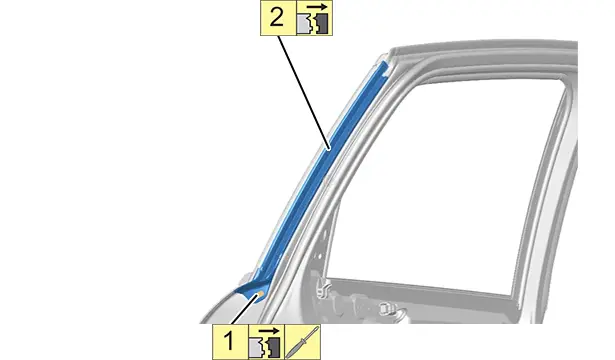

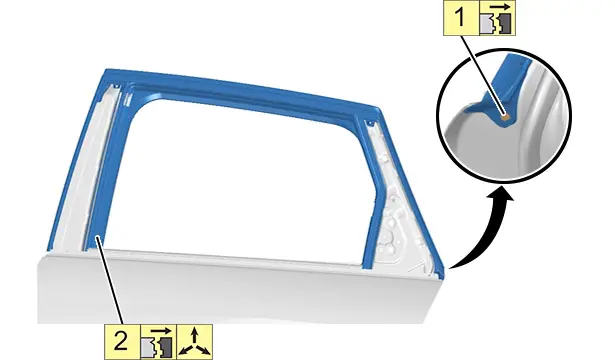

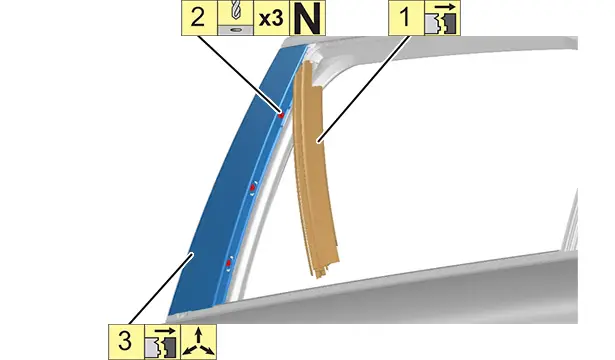

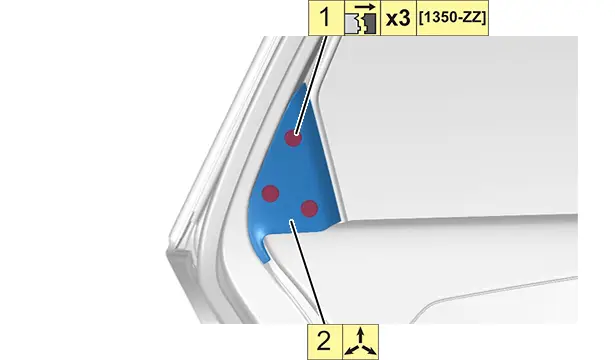

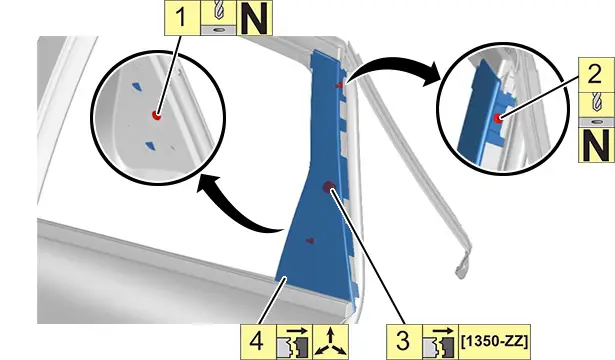

4.10. Trims

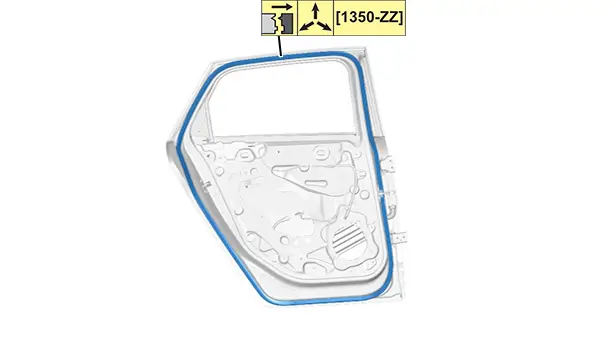

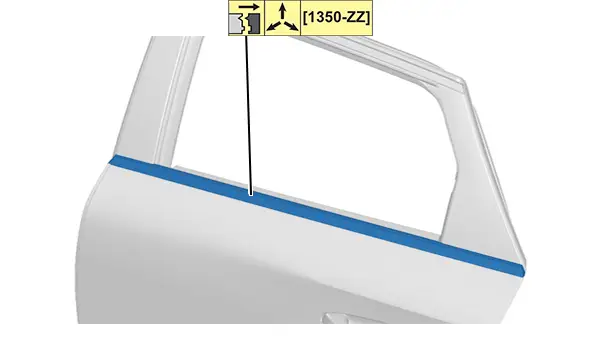

4.11. Seals

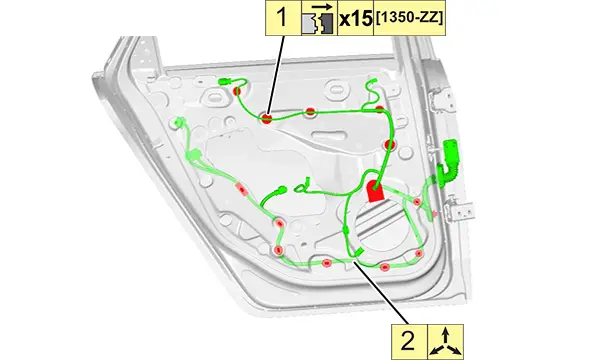

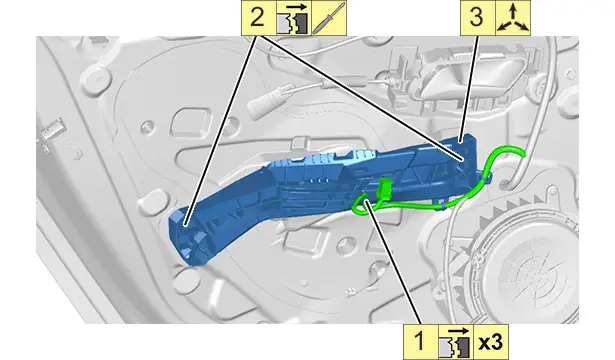

4.12. Electrical harnesses

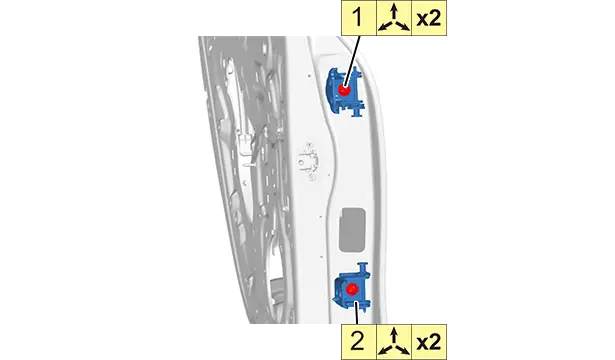

4.13. Hinges

Remove the rear door .

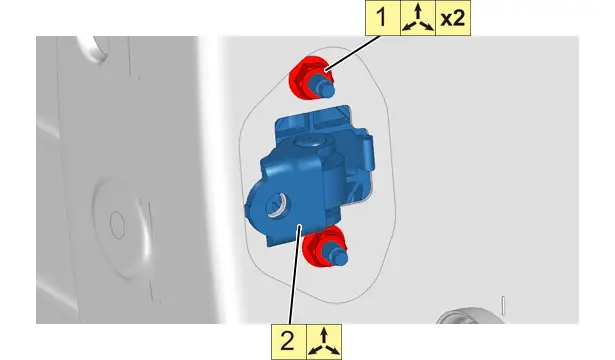

4.14. Rear door check strap

5. Assembling

CAUTION : Always replace clips and fasteners that are defective.

CAUTION : Fit new sealing components which must be fitted without folds and without tears ; It is vital for the contact surface on the door panel to be perfectly clean ; Apply a roller on the pre-bonded parts of the sheet ; These requirements are essential in order to prevent any entry of water, dust or noise.

Carry out the operations in the reverse order to the stripping operations.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
