Peugeot 308: Stripping-assembling : Tailgate

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Tooling

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove :

• The rear screen wiper mechanism
• The third brake lamp
• The rear screen
• The tailgate lock
• The rear lamps on the tailgate
• The badges
• The hands-free access and starting (ADML) aerial
• The motorised tailgate closing assistance module
• The tailgate opening control
• The motorised tailgate ECU
• The motorised tailgate electric struts

3. Removing

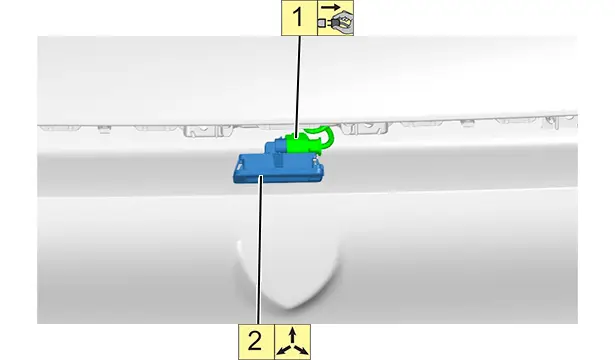

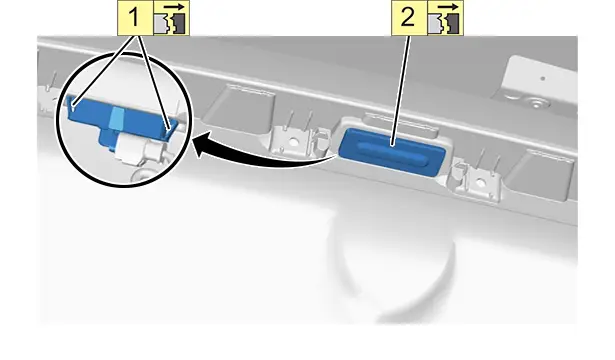

3.1. Tailgate opening control

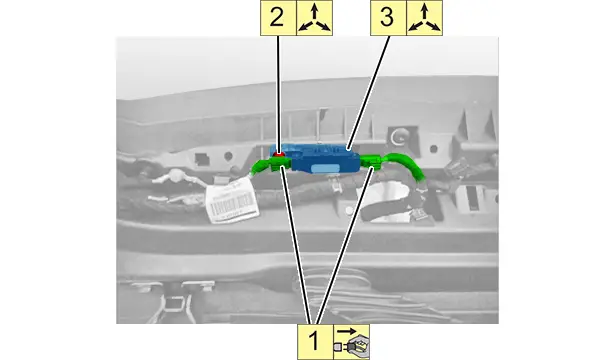

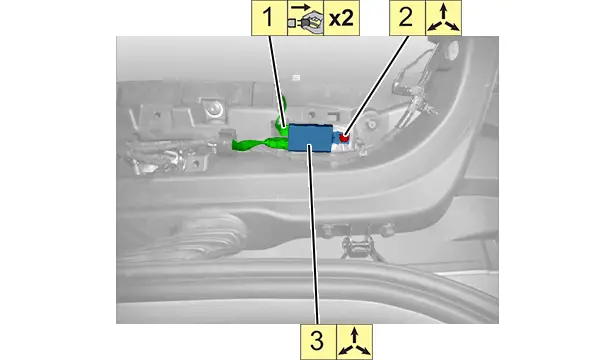

3.2. Control unit for aerial (depending on equipment)

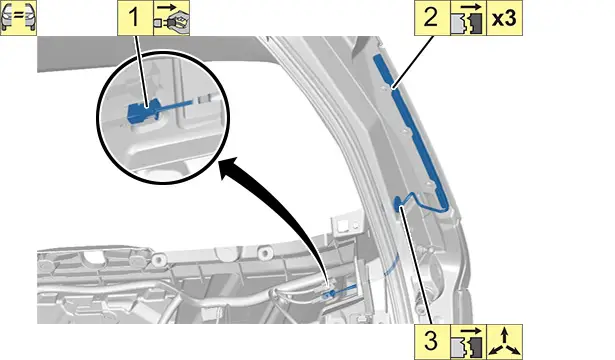

3.3. Anti-pinch sensors

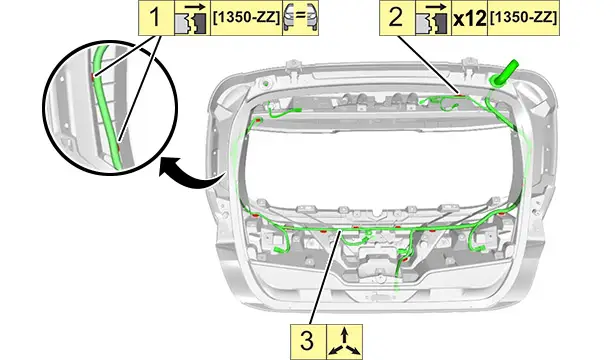

3.4. Electrical harness

Remove the tailgate .

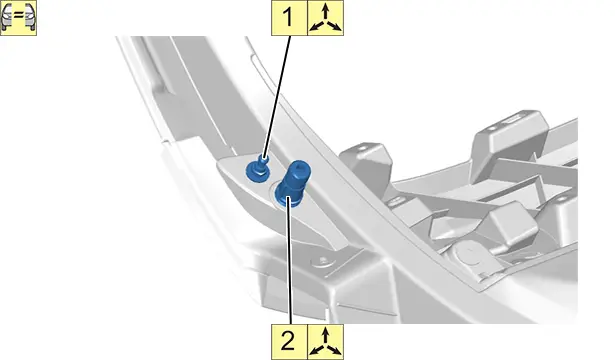

3.5. Stops / Strut support

4. Refitting

Proceed in the reverse order to removal.

5. Additional operations

Refit :

• The rear screen
• The motorised tailgate electric struts
• The rear screen wiper mechanism
• The third brake lamp
• The tailgate lock
• The hands-free access and starting (ADML) aerial
• The rear lamps on the tailgate
• The motorised tailgate closing assistance module
• The tailgate opening control
• The motorised tailgate ECU
• The badges

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

6. Check

Check the operation of the various equipment.
