Peugeot 308: Tool kit

Set of tools supplied with the vehicle.

Its content depends on your vehicle's equipment:

- Temporary puncture repair kit.

- Spare wheel.

These tools are specific to the vehicle and may vary according to the level of equipment.

Do not use them for any other purpose.

Accessing the tool kit

The tool kit is stored in the boot, under the floor.

 Hatchback

 SW

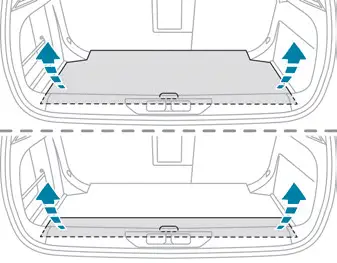

Versions with rigid boot floor

► Open the boot.

► Lift the rigid boot floor.

► Attach the floor hook to the upper boot seal.

Versions with hinged boot carpet

(Rechargeable hybrid or Electric)

► Open the boot.

► Unfold the hinged boot carpet by pulling its handle until it is fully opened.

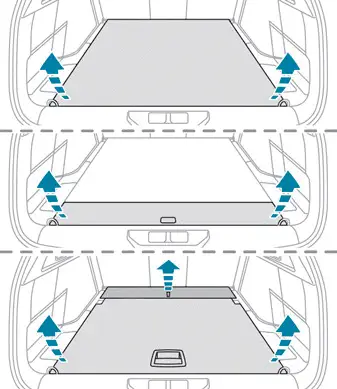

Versions with 2-position boot floor (SW)

Tools can also be accessed from the row 2 seats, by tilting the backrest of the rear bench seat.

► Open the boot.

► Lift the cover using the cord at the back of the boot.

or

► Place the adjustable boot floor in the high position.

► Lift the adjustable boot floor and engage it in the inclined position in the lateral stops to secure it in this position.

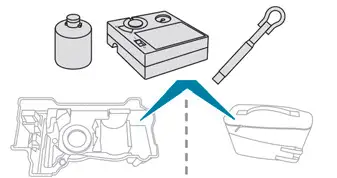

 With temporary puncture repair kit

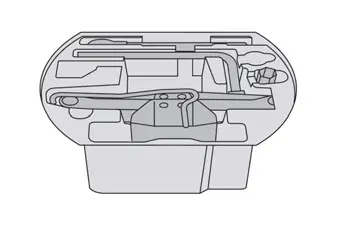

 With spare wheel

The jack must only be used to change a wheel with a damaged or punctured tyre.

Do not use any jack other than the one supplied with the vehicle.

If the vehicle does not have its original jack, contact a PEUGEOT dealer or a qualified workshop to obtain the one that was intended by the manufacturer.

The jack meets European standards, as defined in the Machinery Directive 2006/42/CE, and also complies with UKCA requirement, as defined by the Supply of Machinery (Safety) Regulations 2008 No.1597.

The jack does not require any maintenance.

List of tools

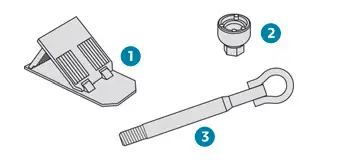

1. Chock to immobilise the vehicle (depending on equipment)
2. Socket for the security bolts (located in the glove box) (depending on equipment)
   To adapt the wheelbrace to the special 'security' bolts.
3. Removable towing eye

For more information on Towing the vehicle and using the removable towing eye, refer to the corresponding section.

  With temporary puncture repair kit

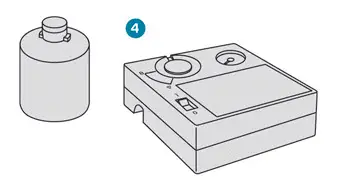

4. 12 V compressor with cartridge of sealant and speed limit sticker
   For temporary repair of a tyre and to adjust the tyre pressure.

For more information on the Temporary puncture repair kit, refer to the corresponding section.

  With spare wheel

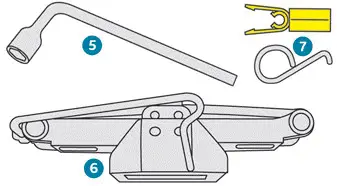

5. Wheelbrace
   For removing the wheel bolts.
6. Jack with integrated handle
   To raise the vehicle.
7. Wheel bolt cap removal tool (depending on equipment)
   For removing the wheel trim from steel wheels or the central bolt cover from alloy wheels.

For more information on the Spare wheel, refer to the corresponding section.
