Peugeot 308: Removing - refitting : Turbocharger discharge electrovalve

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

CAUTION : After the ignition has been switched off : Wait minutes before disconnecting the battery to ensure that the programmed values of the various ECUs are stored.

1. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(depending on equipment).

Remove the turbocharger air inlet union .

2. Removing

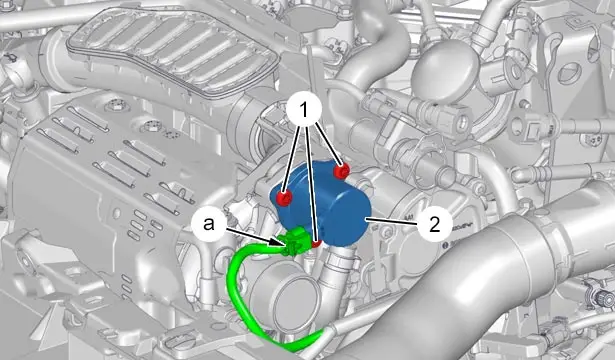

Disconnect the connector (at "a").

Remove :

• The bolts (1)
• The turbocharger discharge electrovalve (2)

3. Refitting

CAUTION : Observe the tightening torques .

Refit :

• The turbocharger discharge electrovalve (2)
• The bolts (1)

Reconnect the connector (at "a").

4. Additional operations

Refit the turbocharger air inlet union .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(depending on equipment).
