Peugeot 308: Very cold climate screens

(Depending on country of sale)

Only available for Diesel vehicles.

This removable device prevents the accumulation of snow around the radiator cooling fan.

It consists of two elements for the upper part of the front grille, a central element and two other elements for the lower part.

In case of difficulty with installation/removal

Contact a PEUGEOT dealer or a qualified workshop.

Before any operation, ensure that the engine is off and the cooling fan has stopped.

It is essential to remove them when:

- the outside temperature exceeds 10ºC.

- recovery is in progress.

- the speed is above 75 mph (120 km/h).

First installation

The type of grille depends on the vehicle version.

The lower screens are suitable for all versions.

The upper and centre screens can be adapted according to the vehicle version.

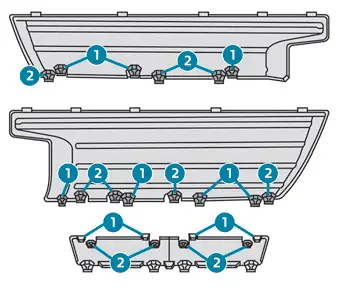

It is necessary to remove the fixings:

- Marked 2 for all versions except GT.

- Marked 1 for all GT versions.

► To remove the corresponding fixings, use a cutter-type tool, following the groove set into the inner face of the screen.

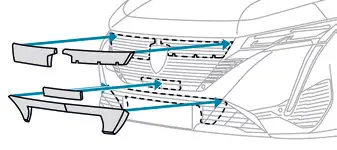

Fitting

Lower/upper screens

► Offer up one of the lower screens on the corresponding side of the lower bumper grille, aligning it around the number plate holder.

► Insert the fixing lugs into the bumper until they are all properly seated.

► Check that the unit is firmly held by pressing around the edges.

Repeat the same steps for the other lower screen, then for the upper screens in the upper bumper grille, aligning them with the top of the grille.

Centre screen

► Offer up the centre screen below the brand badge.

► Insert the fixing lugs into the bumper until they are all properly seated.

► Check that the unit is firmly held by pressing around the edges.

Removing

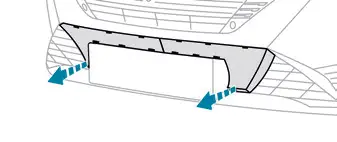

For the lower screen

► Insert a finger in the lower outside corner of the lower screen.

► Pull towards you to guide the unclipping of the unit.

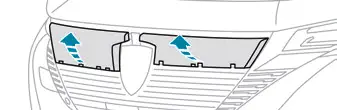

For the upper screen

► Press on the lower fixing lugs to release them from the grille.

► Gently tilt the upper screen downwards.

► Pull towards you to guide the unclipping of the unit.

For the centre screen

► Press on the upper fixing lugs to release them from the grille.

► Pull towards you to guide the unclipping of the unit.
