ESSENTIAL : Observe the safety and cleanliness recommendations
.
ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).
Key : Operation symbols
.

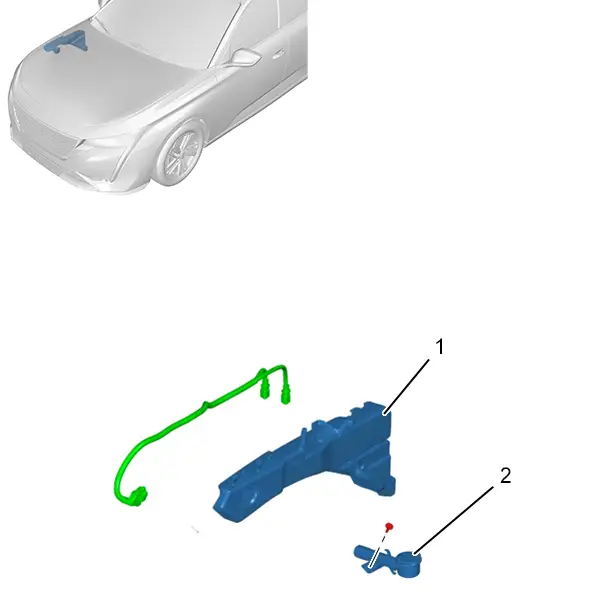

1. Location
INTERNAL COMBUSTION DRIVE TRAIN OR ELECTRIC DRIVE TRAIN OR MHEV DRIVE TRAIN OR PHEV DRIVE TRAIN
Identification | Description | Quantity |
(1) | Screen wash fluid reservoir | 1 |
(2) | Filler neck | 1 |
2. Tooling
Tool | Reference | Description |
| [1350-ZZ] | Stripping tools |
3. Preliminary operations

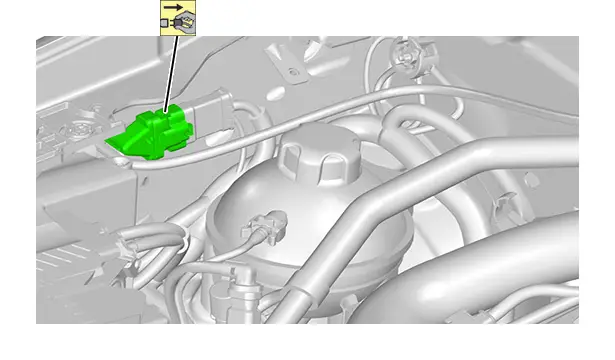

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Disconnect the ancillaries battery or batteries (depending on equipment).

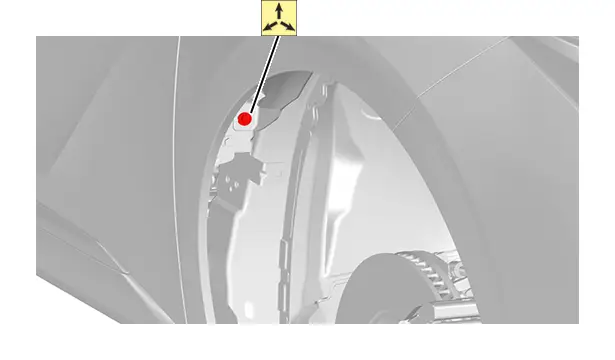

Remove the front mud guard
.
4. Removing

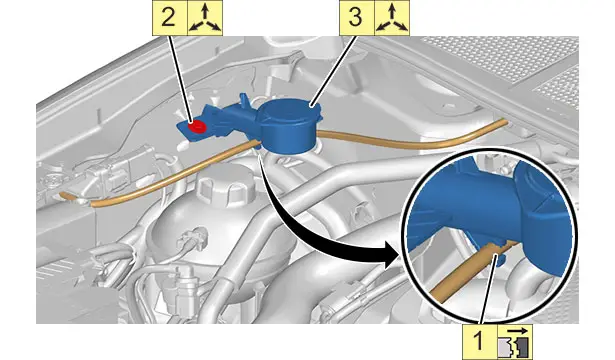

4.1. Filler neck

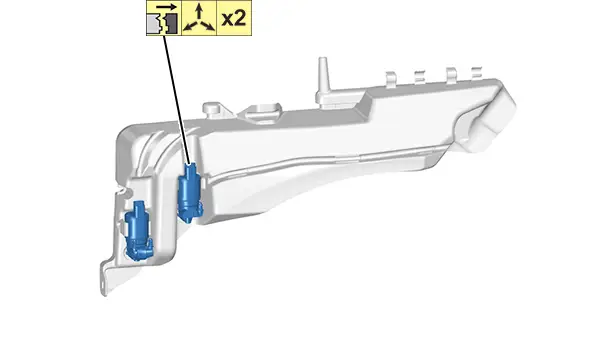

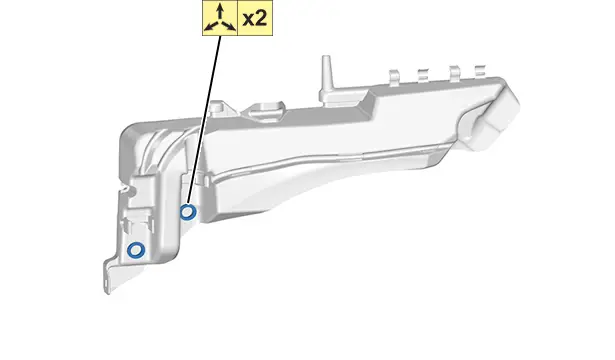

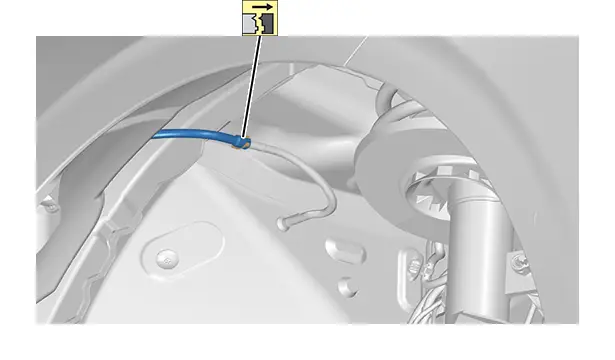

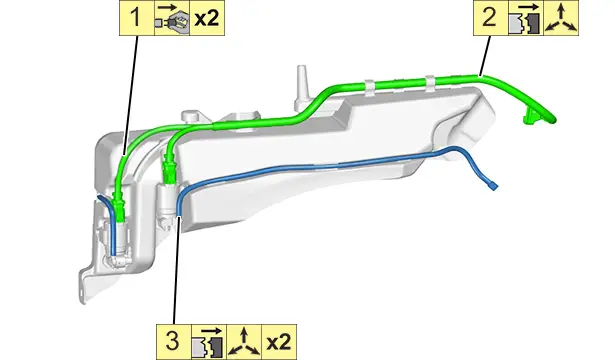

4.2. Screen wash fluid reservoir

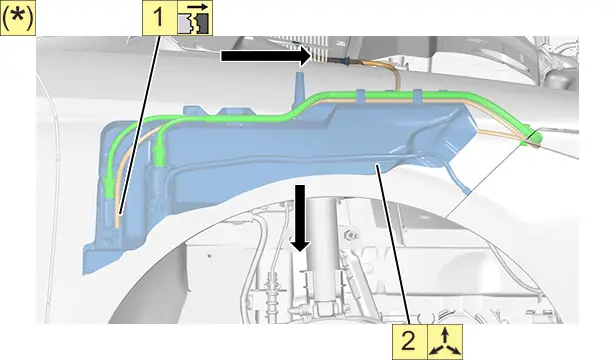

N.B. : (*) Remove the screenwash reservoir (In the direction of the arrows ).
5. Refitting
Proceed in the reverse order to removal.
6. Additional operations
Refit the front mud guard
.
CAUTION : Perform the operations that are required after reconnecting the ancillaries battery
.
CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.
Reconnect the ancillaries battery or batteries (depending on equipment).
7. Check
Check the operation of the various equipment.
