Peugeot 308: Diagnosis : Wiper blades

1. Tooling

Workshop equipment :

  • Sprayer
  • Non-fleecy clean rags
  • Screen wash fluid

2. Preparation of the windscreen and/or the rear screen

The windscreen and/or the rear screen must be clean, and free of dust, grease, liquids or any foreign bodies.

CAUTION : All cleaning must be done without activating the wiper mechanism.

N.B. : Do a prior cleaning of the windscreen and/or rear screen ; Using screen wash fluid and a clean cloth that does not leave any residue.

3. Preparation of the wiper blades

N.B. : Check that the wiper blades are in good condition. No deformation is permitted.

CAUTION : Do a prior cleaning of the wiper blades ; Using screen wash fluid and a clean cloth. Clean the entire length of each wiper blade.

4. Performance of the test

Methodology :

  • Lightly wet the windscreen or rear screen with water (Drops that will not run down)
  • Activate the wiper mechanism on slow speed for 10 ± 1 cycles
  • Wait for about 3 seconds

5. Diagnosis

Illustration Observation Diagnosis

Wiping that is hesistant or makes no sound Does not conform

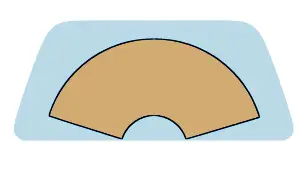

Partial wiping of the windscreen or rear screen

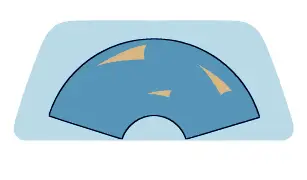

The surface swept by the wiper blade remains wet (There is still a thin layer of liquid)

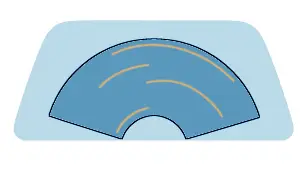

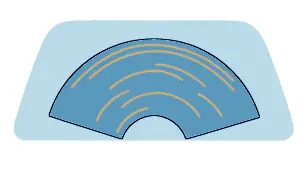

Lines visible for more than 5 seconds after wiping

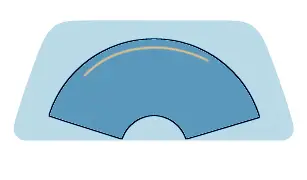

Small lines visible outside the field of vision Tolerated

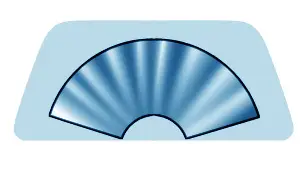

Thin faint lines visible for less than 5 seconds after wiping Correct

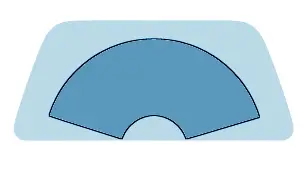

Not faulty
