Peugeot 308: Fitting : Spare wheel retaining device

Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Transmission / Wheels / Fitting : Spare wheel retaining device

ESSENTIAL : Observe the safety and cleanliness recommendations.

N.B. : The spare wheel and the on-board tools are installed under the boot carpet.

1. Preliminary operations

Remove :

  • The boot carpet

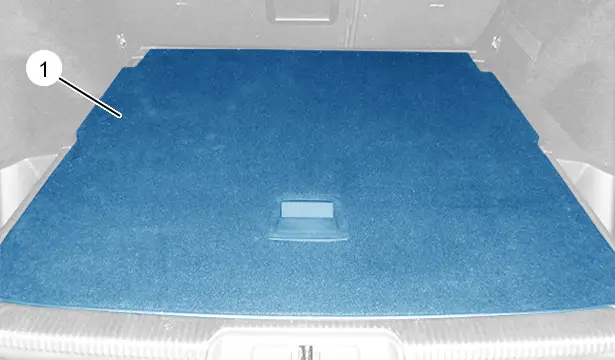

  • The load floor (1)(according to equipment)

N.B. : Remove the temporary puncture repair kit, the removable wheel chocks, the towing ring and the anti-theft wheel lock nut . Insert each item into the toolkit compartment.

Remove :

  • The temporary puncture repair kit (Retain the bolt and the nut that secure the kit )
  • The compensatory surround(according to equipment)

2. Fitting the spare wheel

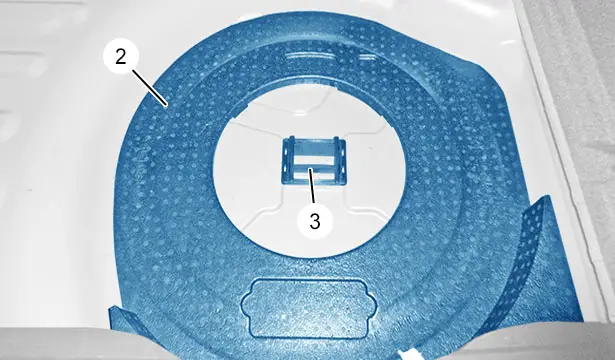

(3) Fixing plate.

N.B. : If the vehicle is supplied with a lower compensatory surround in the boot compartment, replace the compensatory surround located in the boot well.

Fit the spare wheel lower compensatory surround (2)(according to equipment).

N.B. : If the spare wheel is a space-saving spare wheel, position it with the valve facing upwards . If the spare wheel is the same size as the vehicle’s other wheels, position it with the valve facing downwards.

Fit the space-saving spare wheel on the lower compensatory surround (2).

CAUTION : The temporary puncture repair kit bolt (4) and the bolt included in the tool kit may be different in length . In this case, select the bolt that can secure the on-board tool kit without interfering with the jack.

N.B. : The spare wheel bolt (4) must be positioned in the fixing plate (3).

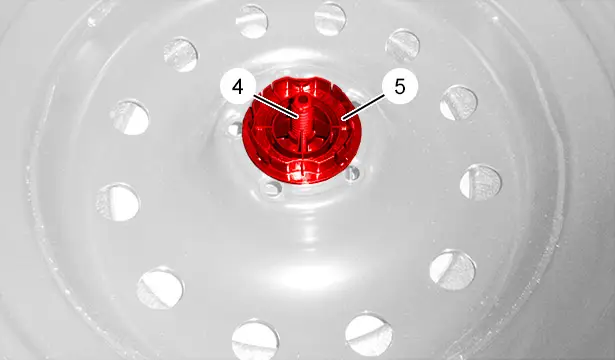

Fit the spare wheel bolt (4).

Tighten the spare wheel nut (5) ; Tighten until it clips into the spare wheel.

3. Positioning of the on-board tools

Tools list :

  • Jack
  • Lug nut wrench wheel/tyre assembly
  • "wheel bolt cover" removal tool
  • Towing eye
  • Removable wheel chocks
  • Anti-theft nut(according to equipment)

Place in the on-board tool kit :

  • The wheel-removal wrench
  • The "wheel bolt cover" removal tool
  • The removable towing eye
  • The removable wheel chocks
  • The anti-theft nut(according to equipment)
  • The jack

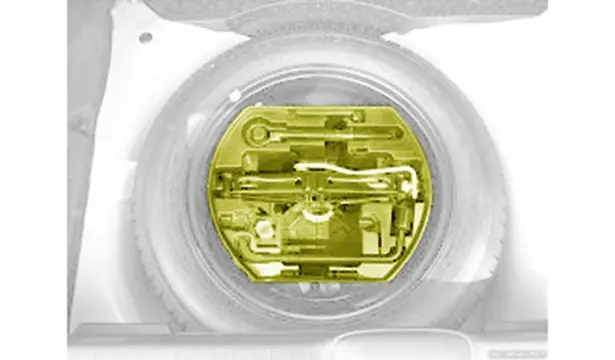

Clip the on-board tool storage box into the spare wheel on the spare wheel nut (5)(according to equipment).

Position the upper compensatory surround supplied with the vehicle on the spare wheel(according to equipment).

4. Additional operations

Refit :

  • The load floor (1)(according to equipment)
  • The boot carpet
