Peugeot 308: Presentation : Glazing tools
Peugeot 308 2021-2025 (P5) Service Manual / Bodywork :: Front section / Windscreen / Presentation : Glazing tools

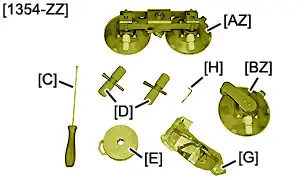

1. Set of glass components
| Tool | Reference | Description |
| [1354-ZZ] | Set of glass components |
| [1354-AZ] | roller guide apparatus | |
| [1354-BZ] | Guiding roller(half suction pad) | |
| [1354-C] | awl | |
| [1354-D] | Handles | |
| [1354-E] | square section cutting wire | |
| [1354-G] | Protective goggles | |
| [1354-H] | Allen key |
2. Suction pads
| Tool | Reference | Description |

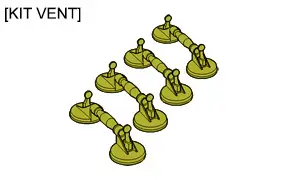

| [KIT VENT] | Articulated suction pads |

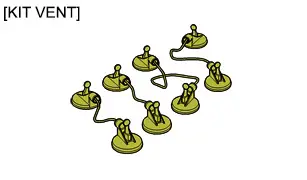

| [KIT VENT] | Suction pads with wires |

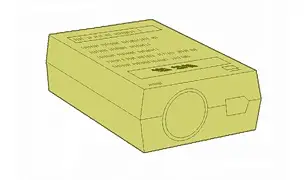

3. Heater cartridge
| Tool | Reference | Description |
| - | Heater cartridge |
4. Guns
Pneumatic gun with air flow adjustment
.
5. FEIN electric knife
5.1. Tool box
| Tool | Reference | Description |

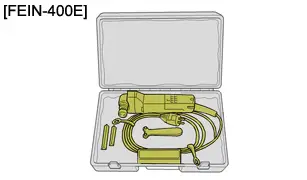

| [FEIN-400E] | FEIN electric knife |

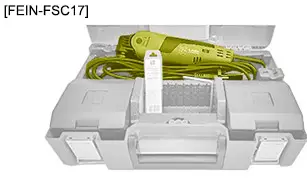

| FEIN-FSC17 | |
| (*) It is not necessary to replace the old tool [FEIN-400E] with the new tool [FEIN-FSC17] | ||

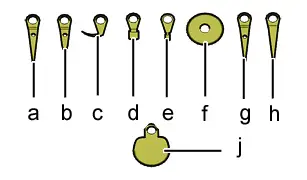

5.2. Blades
| Tool | Reference | Description |
| [FEIN-194] | "a" knife blade |
| [FEIN-143] | "b" knife blade | |
| [FEIN-076] | "c" knife blade | |
| [FEIN-079] | "c" knife blade | |
| [FEIN-154] | "c" knife blade | |
| [FEIN-101] | "c" knife blade | |
| [FEIN-115] | "c" knife blade | |
| [FEIN-207] | "c" knife blade | |
| [FEIN-208] | "c" knife blade | |
| [FEIN-146] | "d" knife blade | |
| [FEIN-144] | "e" knife blade | |
| [FEIN-103] | "f" knife blade | |
| [FEIN-160] | "g" knife blade | |
| [FEIN-125] | "h" knife blade | |
| [FEIN-128] | "j" knife blade |

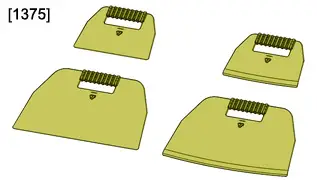

6. Protector
| Tool | Reference | Description |
| [1375] | Protector |
