Peugeot 308: Removing - refitting : Windscreen wiper mechanism

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

Key : Operation symbols .

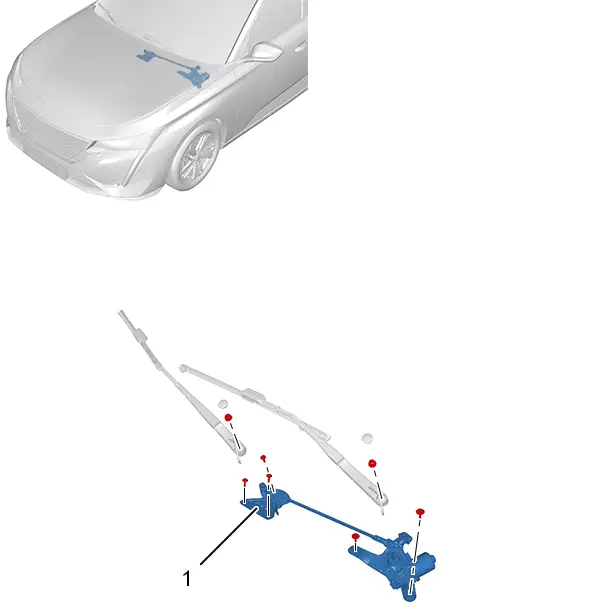

1. Location

LEFT-HAND DRIVE

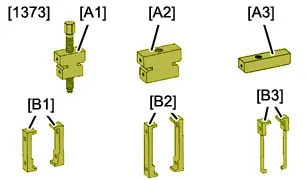

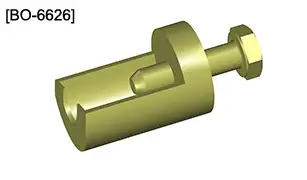

2. Tooling

3. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

4. Removing

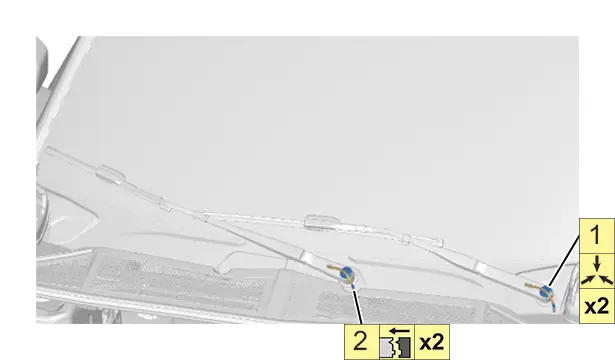

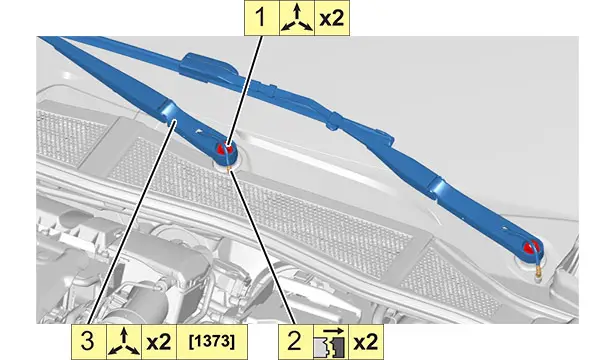

4.1. Windscreen wiper arm-blade

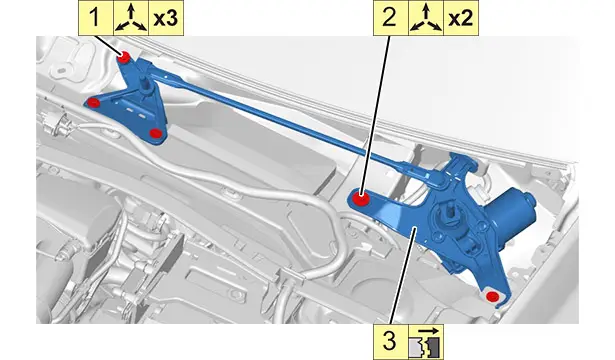

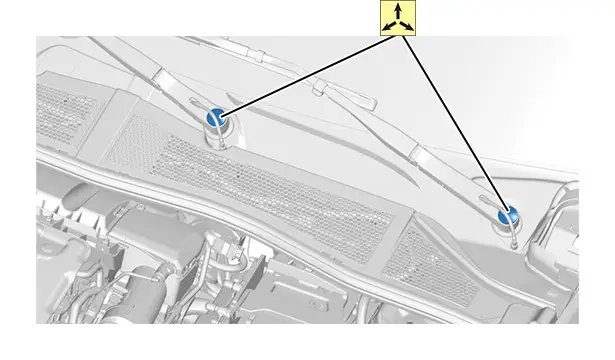

4.2. Windscreen wiper mechanism

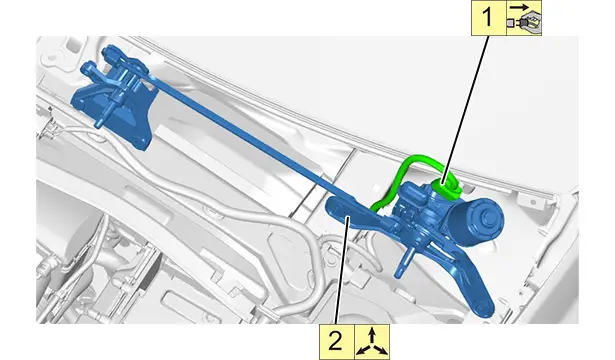

LEFT-HAND DRIVE

Remove the scuttle panel .

5. Refitting

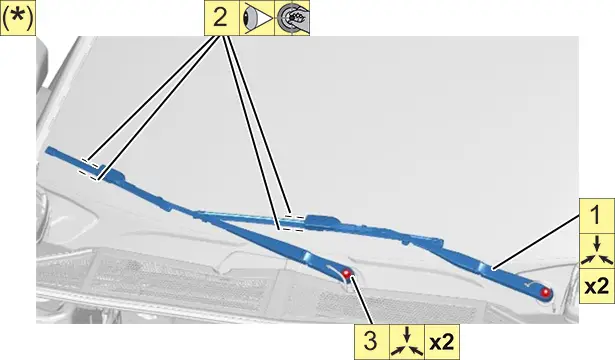

N.B. : (*) Before refitting the wiper arm-blades, reconnect the ancillaries battery, then switch on the ignition, activate the wiper control and switch off the ignition.

N.B. : (*) Refit the wiper arm-blades ; Following the markings on the windscreen.

Proceed in the reverse order to removal.

6. Additional operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

7. Check

Check the operation of the various equipment.
