Peugeot 308: Check : Wear adjustment system on clutch mechanism

ESSENTIAL : Observe the safety and cleanliness recommendations .

CAUTION : No resetting of the clutch wear adjustment is permitted.

1. Foreword

This document describes the additional procedure relating to the clutch mechanisms removal-refitting method; Apply the procedure according to the assembly identified.

2. Assembly ZF - SACHS

2.1. Check before removal

Case of reuse :

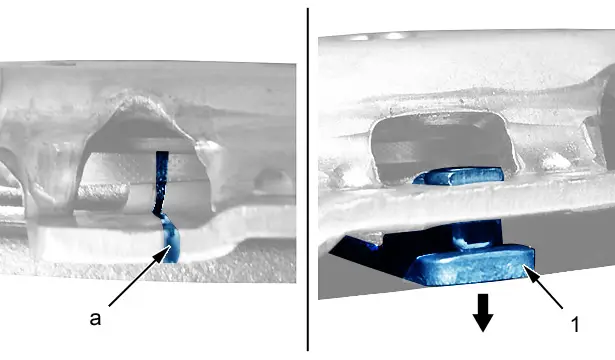

• Before removing the clutch mechanism : Mark the position of the wear adjustment system through one of the openings in the clutch mechanism cover (at "a")
• When removing the clutch mechanism : Check that the stop (1) is released progressively, otherwise press in the direction of the arrow to release the stop

2.2. Check after refitting

After refitting the clutch mechanism : The wear adjustment system must be in the position marked on removal (at "a"), otherwise replace the clutch mechanism and friction plate assembly.

3. Assembly LUK

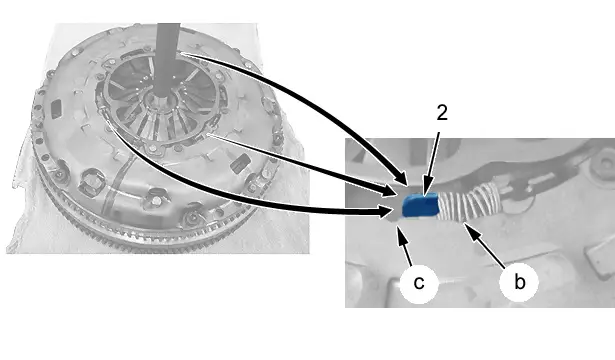

In the case of reuse, the position of the index (2) must be between the notches "b" and "c", otherwise replace the clutch mechanism and friction plate assembly.

N.B. : 3 indexes per mechanism.

4. Other fitments

No check to be carried out.

Tightening torques : ClutchRemoving - refitting : Clutch mechanism - Pushed type (Demonstration video)
