Peugeot 308: Tightening torques : Clutch
Peugeot 308 2021-2025 (P5) Service Manual / Mechanical :: Gearbox assembly / Clutch / Tightening torques : Clutch

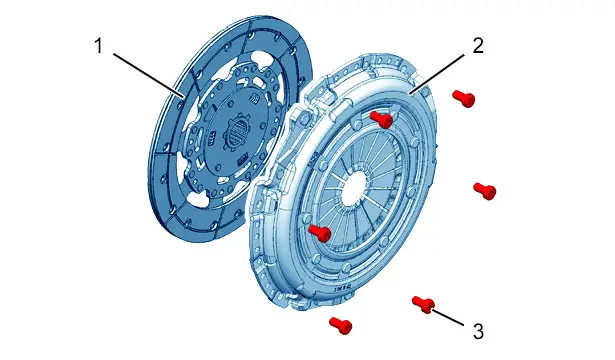

1. Clutch mechanism
(1) Clutch friction plate.
(2) Clutch mechanism.
(3) Clutch mechanism fixing bolt.
Engines all types ; Not EP6DTS, EP6CDT, EP6CDTM, EP6CDTMD, EP6CDTX, EP6FDT, EP6FDTX, EP6FDTR, PUMA C.
| Identification | Description | Tightening torque |
| (3) | Bolt (Clutch mechanism / Engine flywheel) (*) | 2 daNm |
| (*) Always replace the bolts | ||
EP6DTS, EP6CDT, EP6CDTM, EP6CDTMD, EP6CDTX, EP6FDT, EP6FDTX, EP6FDTR engines.
| Identification | Description | Tightening torque |
| (3) | Bolt (Clutch mechanism / Engine flywheel) (*) | 3,3 daNm |
| (*) Always replace the bolts | ||
PUMA C engine.
| Identification | Description | Tightening torque |
| (3) | Bolt (Clutch mechanism / Engine flywheel) (*) | 2,8 daNm |
| (*) Always replace the bolts | ||
2. Fitting with hydraulic clutch slave cylinder

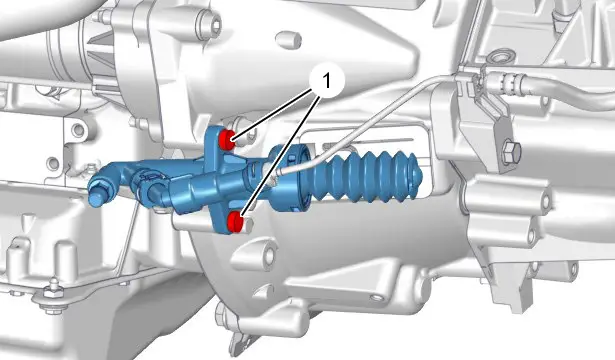

2.1. Hydraulic clutch control slave cylinder (depending on equipment)
| Identification | Description | Tightening torque |
| (1) | Bolt (Hydraulic clutch control slave cylinder ) | 2 daNm |

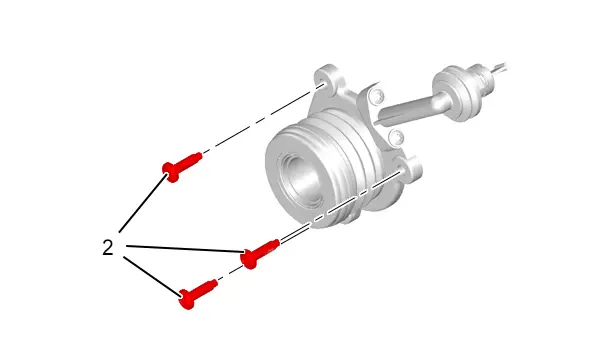

2.2. Hydraulic clutch bearing(depending on equipment)
| Identification | Description | Tightening torque |
| (2) | Bolt (Hydraulic clutch bearing) | 0,95 daNm |
