Peugeot 308: Removing - refitting : Engine speed sensor

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

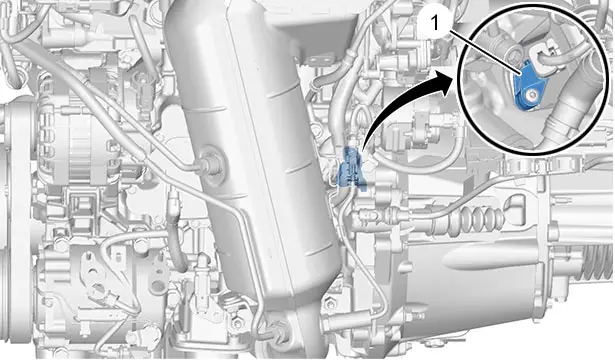

1. Location

(1) Engine speed sensor.

2. Preliminary operations

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries(according to equipment).

Remove the catalytic converter .

3. Removing

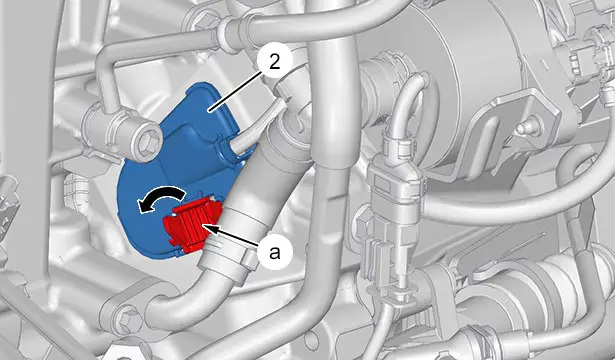

Unclip the clip  (at "a").

Remove the plug (2) (In the direction of the arrow ).

CAUTION : Do not expose the engine speed sensor (1) to any source of magnetism.

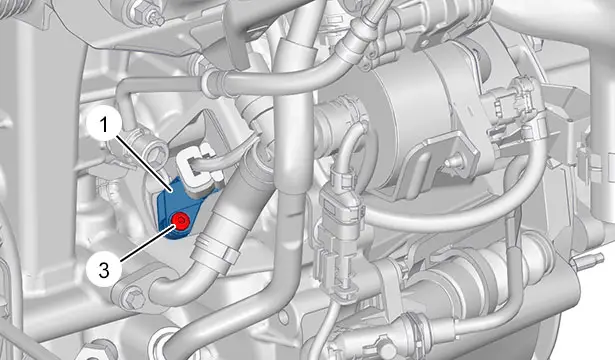

Slacken the bolt (3) (Captive bolt ).

Move aside the engine speed sensor (1).

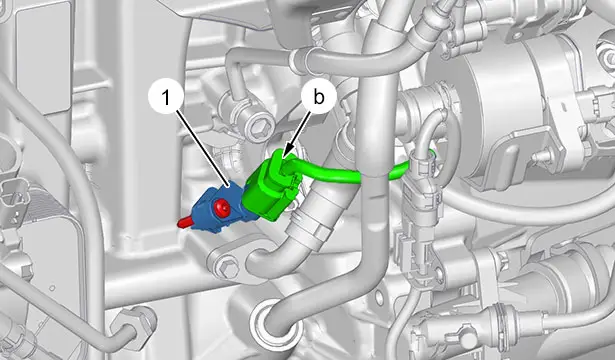

Disconnect the connector  (at "b").

Remove the engine speed sensor (1).

4. Refitting

CAUTION : Observe the tightening torques .

Refit the engine speed sensor ( 1).

Reconnect the connector  (at "b").

Retighten the bolt (3).

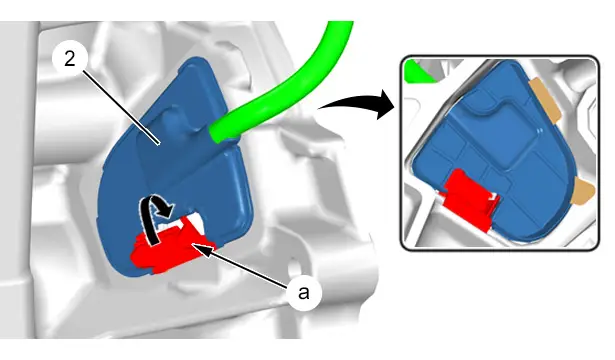

Refit the plug (2) (In the direction of the arrow ).

CAUTION : Check the position of the closer (2).

Clip the clip  (at "a").

5. Additional operations

Refit the catalytic converter .

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries(according to equipment).

6. Programming

CAUTION : If removing or replacing the engine speed sensor (1), perform a procedure to initialise the engine speed sensor target.
