Peugeot 308: Identification : Passenger’s compartment side prohibited cutting zones

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : Before any operation on the structure of a vehicle fitted with a traction battery, the vehicle must be disconnected electrical supply.

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles(observe the regulations in force in the respective country).

CAUTION : All of the stripped surfaces must be protected by means of the approved electrolytic rezincing process .

1. Information

CAUTION : To avoid damaging the structural or expanding inserts, the cutting zones close to structural or expanding inserts must be at a safety distance of more than 40 mm away.

N.B. : All cutting zones on the passenger compartment sides are authorised except at the locations specified in this document.

2. Location : Prohibited cutting zones

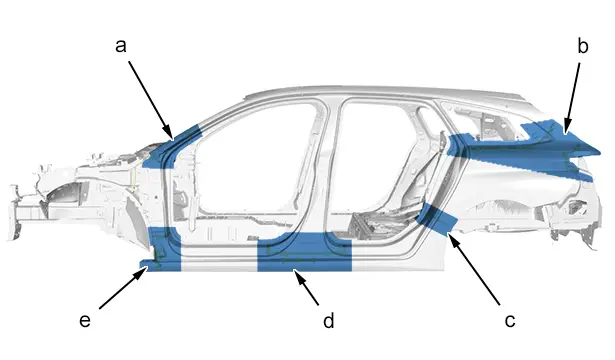

Prohibited cutting zones :

• "a" Windscreen pillar expanding insert
• "b" Rear quarter panel inner panel front and rear expanding inserts
• "c" Rear pillar expanding insert
• "d" Centre pillar strengthener exterior expanding insert
• "e" Front pillar expanding insert

3. Dimensions of the prohibited cutting zones

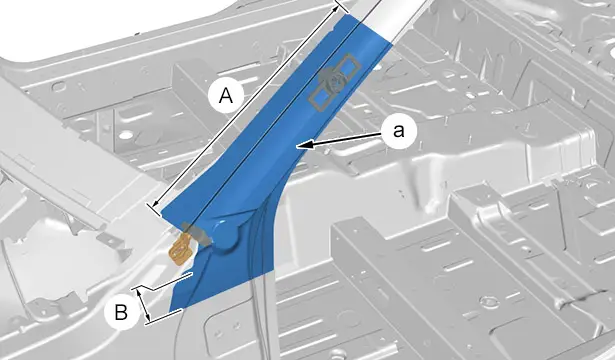

"a" Windscreen pillar expanding insert zone.

"A" = 365 mm.

"B" = 40 mm.

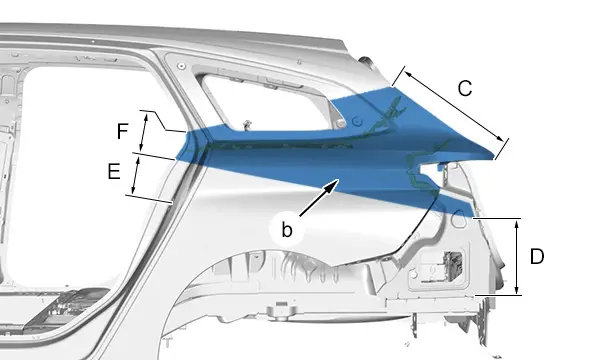

"b" Rear quarter panel inner panel front and rear expanding inserts zone.

"C" = 390 mm.

"D" = 240 mm.

"E" = 130 mm.

"F" = 80 mm.

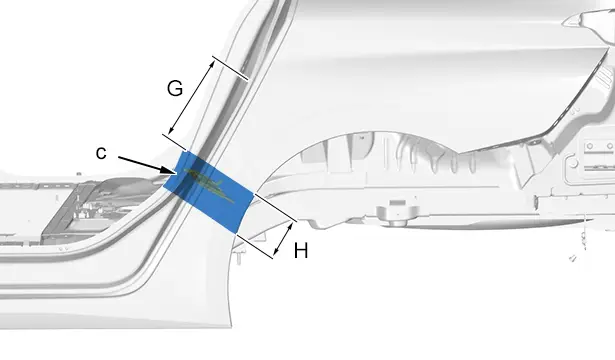

"c" Rear pillar lower expanding insert zone.

"G" = 225 mm.

"H" = 80 mm.

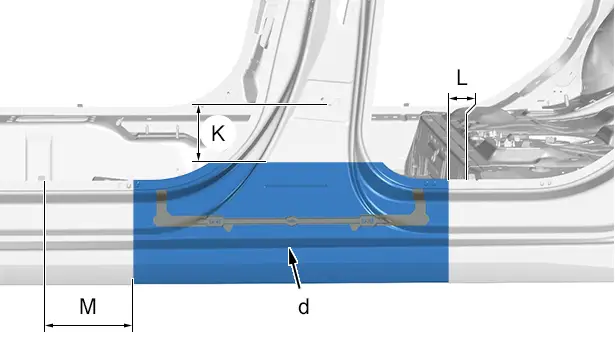

"d" Centre pillar strengthener exterior expanding insert zone.

"K" = 130 mm.

"L" = 48 mm.

"M" = 178 mm.

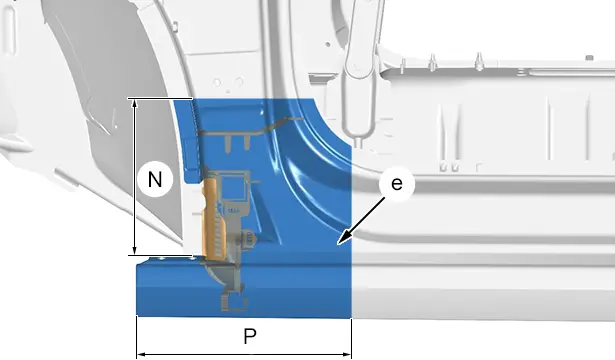

"e" Front pillar expanding insert zone.

"N" = 205 mm.

"P" = 260 mm.
