Peugeot 308: Switching on : MHEV hybrid vehicle

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles  (observe the regulations in force in the respective country).

CAUTION : Only that person who has done the powering-down is allowed to perform the powering-up stage.

1. Ancillaries battery

Remove :

• The insulating bag
• The insulating cap ( 12V )

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

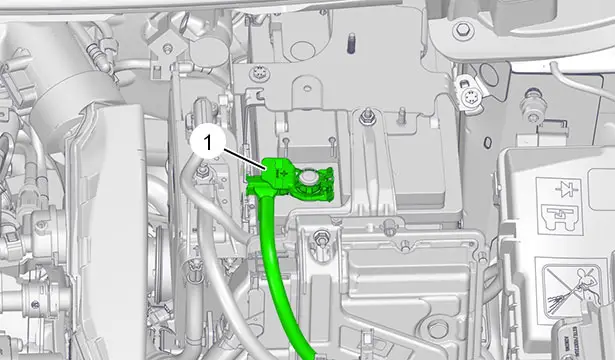

Reconnect the positive terminal (1) of the ancillaries battery .

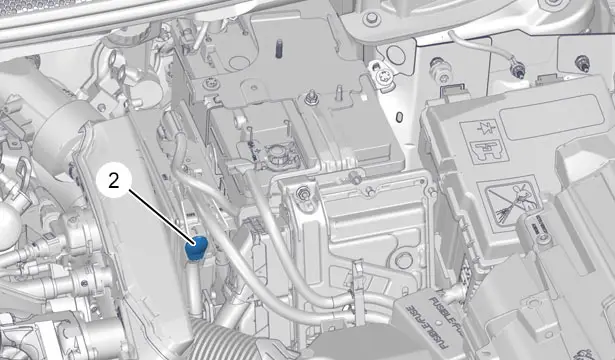

Refit the plug (2).

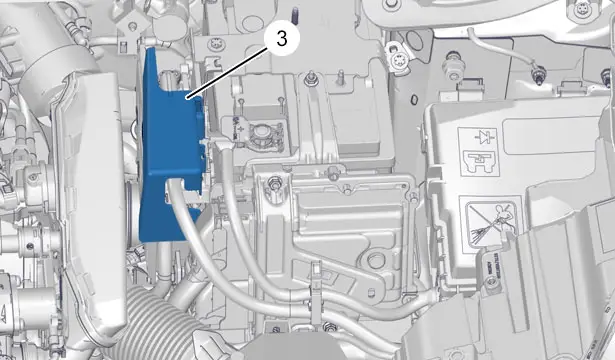

Refit the protector (3).

2. Checking

Put the sequential gear lever in the "N" position.

Action the ignition to position "READY".

Check that the warning lamp "READY" lights up in the instrument panel.

CAUTION : Check the absence of faults ; Using the diagnostic tool.

Replace the vehicle on the ground or remove the cables.

Carry out a road test.
