Peugeot 308: Removing - refitting : Front anti-roll bar

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Replacement of parts in all cases

2. Removing

Place the vehicle on a 2-post lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the front wheels.

INTERNAL COMBUSTION DRIVE TRAIN OR PHEV DRIVE TRAIN OR MHEV DRIVE TRAIN

Remove :

• The front subframe
• The steering mechanism

ELECTRIC DRIVE TRAIN

Remove :

• The front subframe
• The steering mechanism

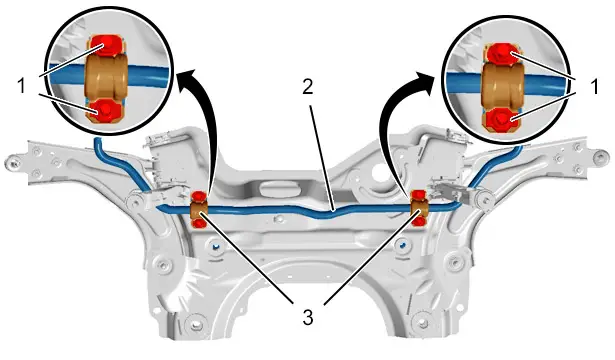

Remove :

• The bolts (1)
• The bush clamps (3)
• The front anti-roll bar (2)

3. Refitting

INTERNAL COMBUSTION DRIVE TRAIN OR PHEV DRIVE TRAIN OR ELECTRIC DRIVE TRAIN

CAUTION : Observe the tightening torques .

MHEV DRIVE TRAIN

CAUTION : Observe the tightening torques .

CAUTION : Check the condition of the anti-roll bar (Absence of signs of knocks, scratches or corrosion pitting) ; The bar’s paint covering must not be damaged, leaving the metal bare.

Refit :

• The front anti-roll bar (2)
• The bush clamps (3)
• The new bolts (1)

INTERNAL COMBUSTION DRIVE TRAIN OR PHEV DRIVE TRAIN OR MHEV DRIVE TRAIN

Refit :

• The steering mechanism
• The front subframe

ELECTRIC DRIVE TRAIN

Refit :

• The steering mechanism
• The front subframe

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

Refit :

• The front wheels
• The vehicle to its wheels
