Peugeot 308: Removing - refitting : Front hub carrier lower ball joint

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Parts which must always be replaced

2. Tooling

3. Removing

Place the vehicle on a 2-post lift.

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

Remove the front wheel.

CAUTION : Risk of damage to the front body height sensor (depending on equipment).

Remove the front body height sensor (depending on equipment).

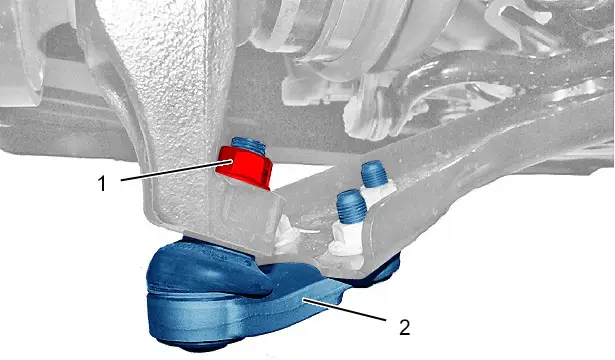

Remove the nut (1).

CAUTION : Hold the driveshaft in position in the differential to prevent gearbox oil from escaping.

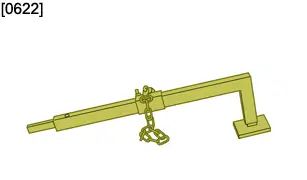

Uncouple the front hub carrier lower ball joint (2) ; Using the tool [0622].

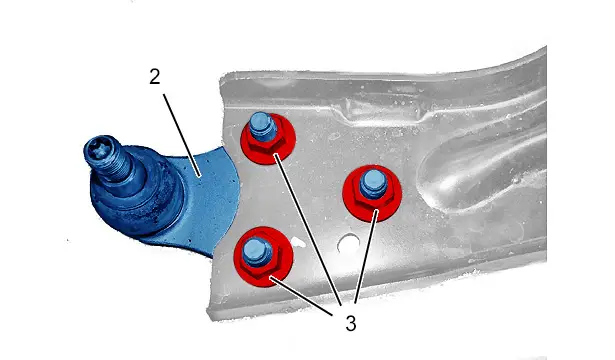

Remove :

• The 3 nuts (3)
• The front hub carrier lower ball joint (2)

4. Refitting

CAUTION : Observe the tightening torques.

ELECTRIC DRIVE TRAIN OR INTERNAL COMBUSTION DRIVE TRAIN OR PHEV DRIVE TRAIN

Tightening torque :

• Front suspension
• Wheels

MHEV DRIVE TRAIN

Tightening torque :

• Front suspension
• Wheels

Refit :

• The front hub carrier lower ball joint (2)
• The 3 new nuts (3)

Couple the front hub carrier lower ball joint (2) ; Using the tool [0622].

Refit: :

• The new nut (1)
• The front body height sensor (depending on equipment)
• The front wheel
• The vehicle to its wheels

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).
