Peugeot 308: Removing - refitting : Sequential gear lever

ESSENTIAL : Observe the safety and cleanliness recommendations .

ESSENTIAL : All personnel carrying out work on a vehicle fitted with traction batteries must have received specific electric vehicle training and be authorised to work on these vehicles (observe the regulations in force in the respective country).

1. Tooling

2. Preliminary operation

CAUTION : Perform the operations that are required prior to a disconnection of the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Disconnect the ancillaries battery or batteries (depending on equipment).

3. Removing

Remove the centre console .

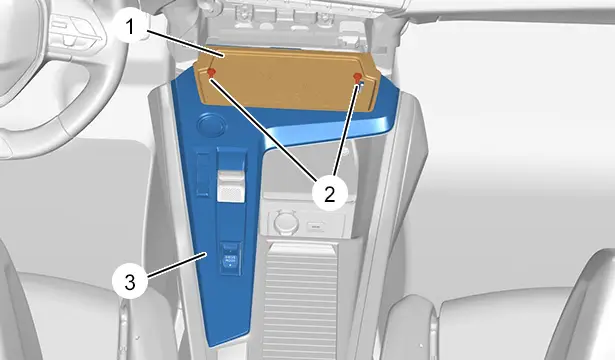

Remove :

• The trim (1)
• The bolts (2)

Detach the trim (3) ; Using the tool [1350-ZZ].

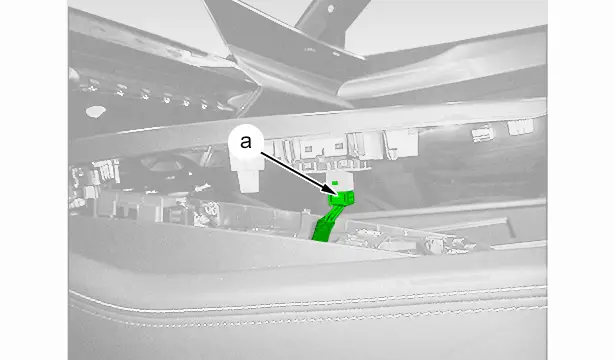

Disconnect the connector (at "a").

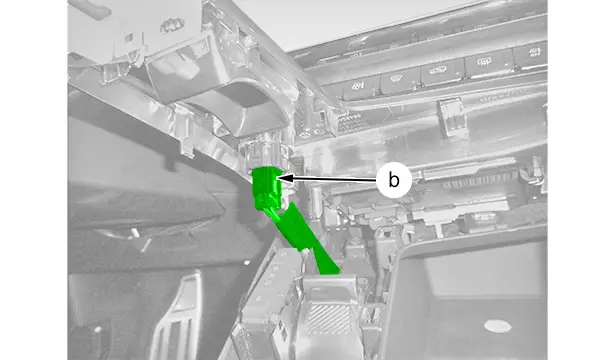

Disconnect the connector (at "b").

Detach the trim (3).

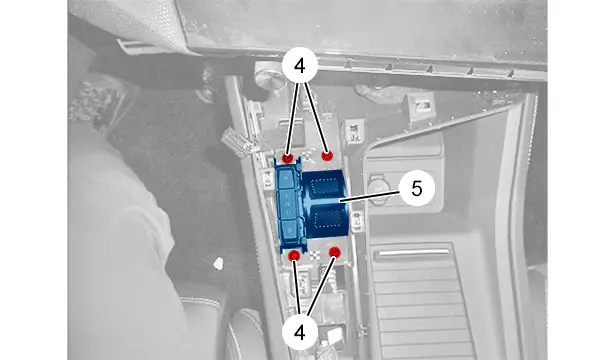

Remove the 4 bolts (4).

Lift the sequential gear lever (5).

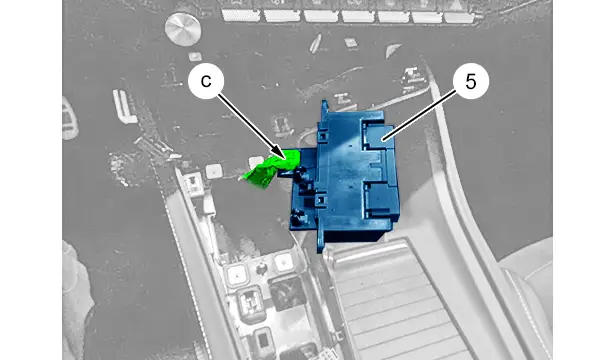

Disconnect the connector (at "c").

Remove the sequential gear lever (5).

4. Refitting

Reconnect the connector (at "c").

Refit :

• The sequential gear lever (5)
• The 4 bolts (4)

Reconnect the connectors (at "b", "a").

Refit :

• The trim (3)
• The 2 bolts (2)
• The trim (1)
• The centre console

5. Additional operations

5.1. Common operations

CAUTION : Perform the operations that are required after reconnecting the ancillaries battery .

CAUTION : In the case of a vehicle with 2 batteries, carry out the specific operations for disconnecting and reconnecting the ancillaries batteries.

Reconnect the ancillaries battery or batteries (depending on equipment).

5.2. Check

Check the operation of the various equipment.
