Peugeot 308: Removing - refitting : Hybrid automatic gearbox input shaft lip seal
Peugeot 308 2021-2024 (P5) Service Manual / Mechanical :: Gearbox assembly / Gearbox / Removing - refitting : Hybrid automatic gearbox input shaft lip seal
ESSENTIAL : Observe the safety and cleanliness recommendations
.
1. Replacement of parts in all cases
| Description | Quantity |
| Input shaft lip seal | 1 |
2. Tooling
| Tool | Reference | Description |

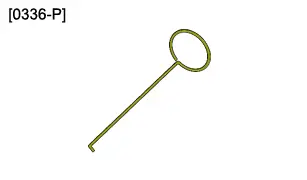

| [0336-P] | Input shaft lip seal extraction hook |

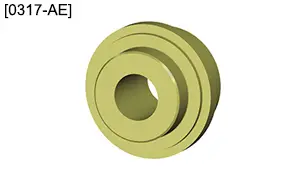

| [0317-AE] | input shaft oil seal fitting drift |
3. Removing
Remove the hybrid automatic gearbox
.

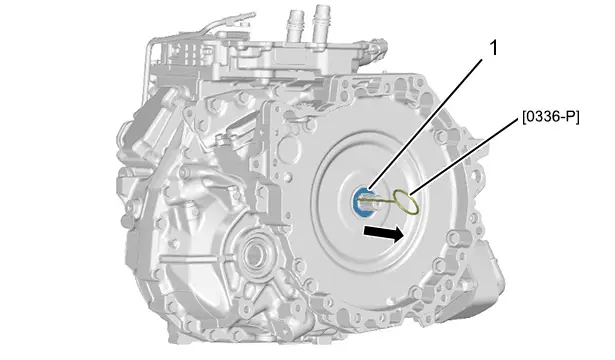

Extract the input shaft lip seal (1) ; Using the tool [0336-P].
4. Refitting
Clean the input shaft lip seal (1) housing.
Refit :

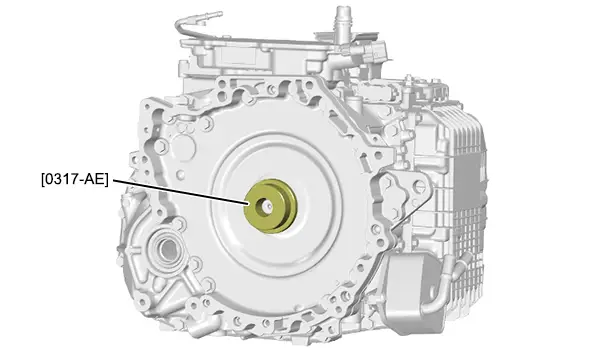

- The new input shaft lip seal (1) ; Using the tool [0317-AE]
- The hybrid automatic gearbox
