Peugeot 308: Tightening torques : Automatic gearbox

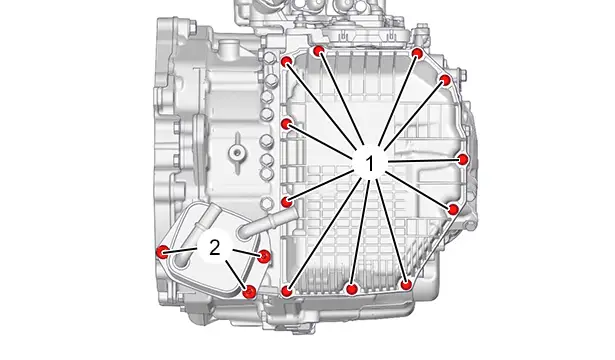

1. Hydraulic valve block housing / Automatic gearbox heat exchanger

1.1. Tightening torques

Marking	Description	Tightening torque
(1)	Screw (Hydraulic valve block housing) (*)	0.7 daNm
(2)	Screw (Automatic gearbox heat exchanger)	2,1 daNm
(*) Observe the tightening order

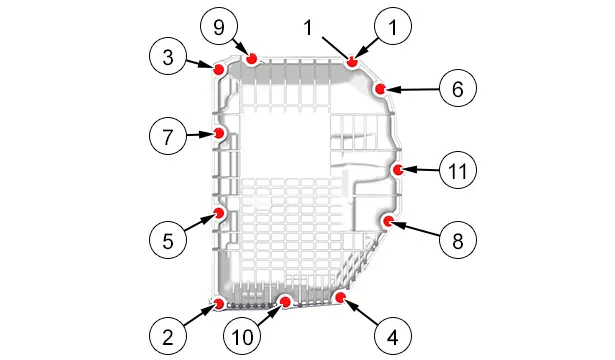

1.2. Sequence of tightening the bolts (1)

(1) Screw (Hydraulic valve block housing).

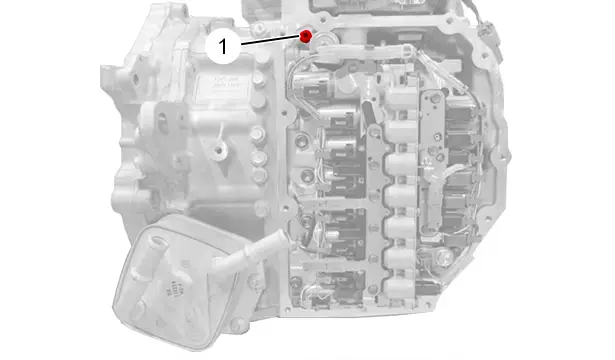

2. ECU

Marking	Description	Tightening torque
(1)	Screw (ECU)	2,4 daNm

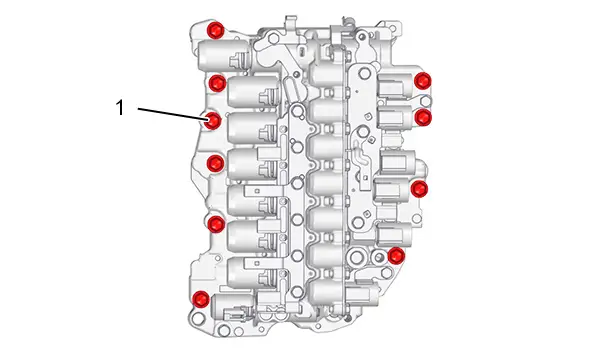

3. hydraulic block

3.1. Tightening torques

Marking	Description	Tightening torque
(1)	Screw ( hydraulic block) (*)	1 daNm
(*) Observe the tightening order

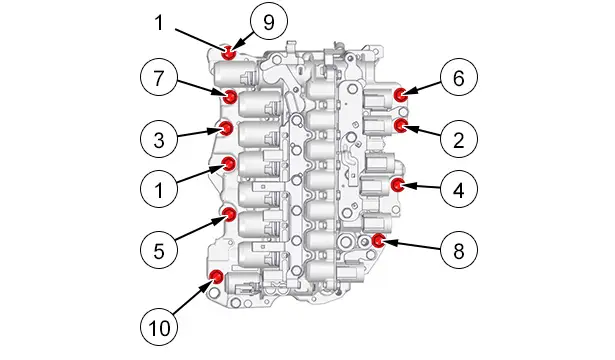

3.2. Sequence of tightening the bolts (1)

(1) Screw ( hydraulic block).

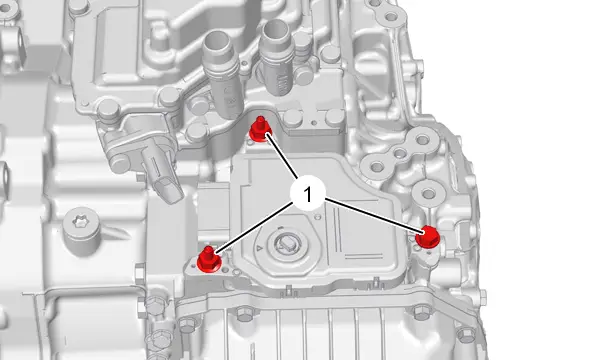

4. Parking control unlocking solenoid

Marking	Description	Tightening torque
(1)	Bolt (Parking control unlocking solenoid )	1 daNm

5. Caps

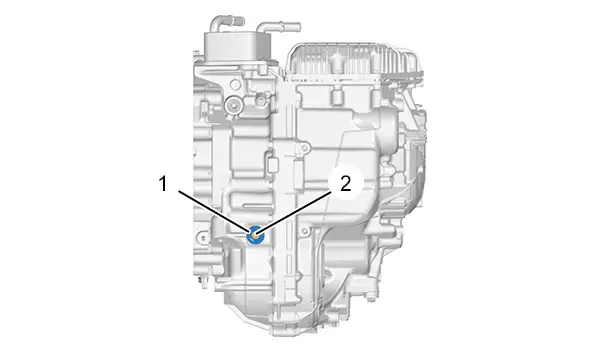

5.1. Draining

Marking	Description	Tightening torque
(1)	Oil overflow and drainage plug	4,7 daNm
(2)	Oil level plug	0,7 daNm

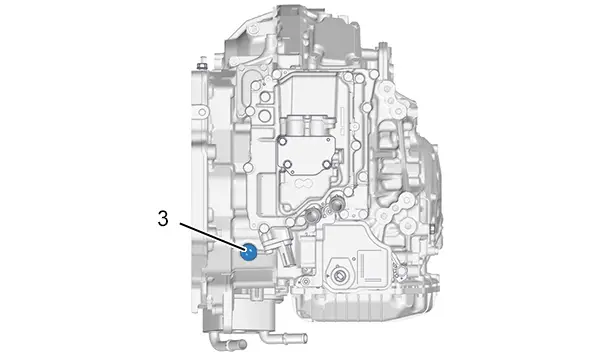

5.2. Filling

Marking	Description	Tightening torque
(3)	Oil filler cap	4,7 daNm

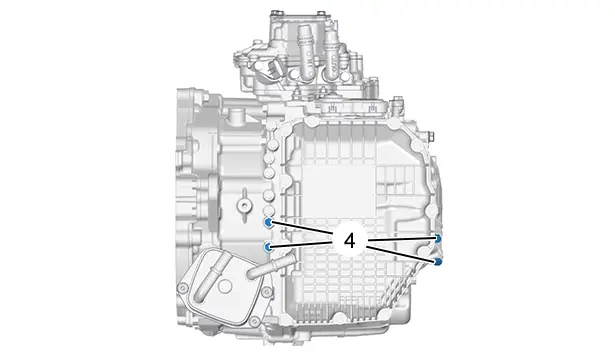

5.3. Pressure take-off plugs

Marking	Description	Tightening torque
(4)	Pressure take-off plugs	0.7 daNm

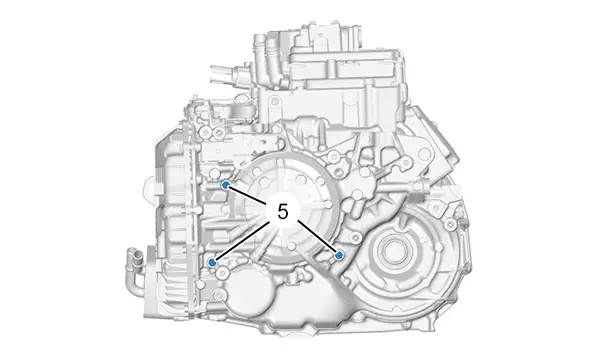

Marking	Description	Tightening torque
(5)	Pressure take-off plugs	0.7 daNm
